NETGEAR

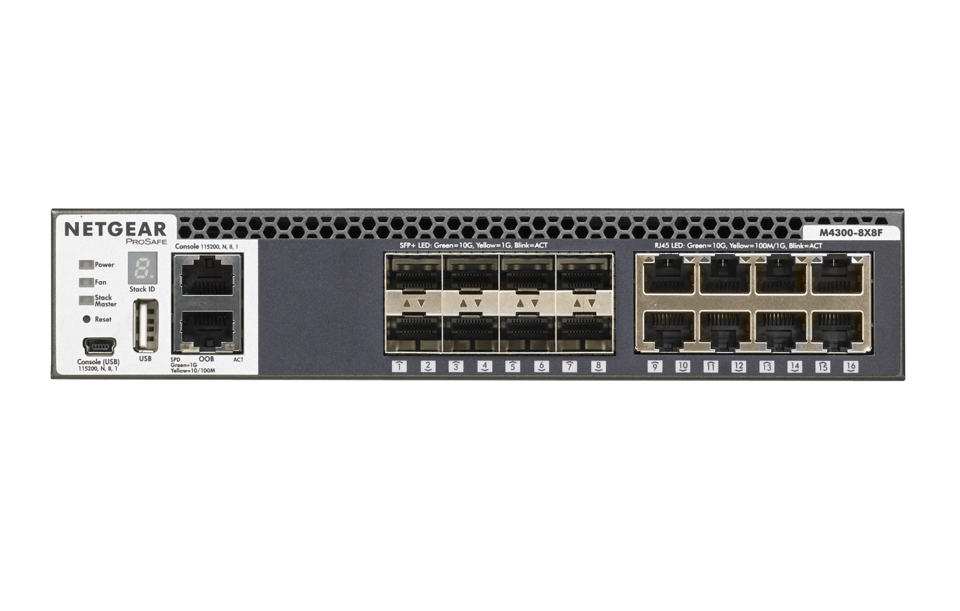

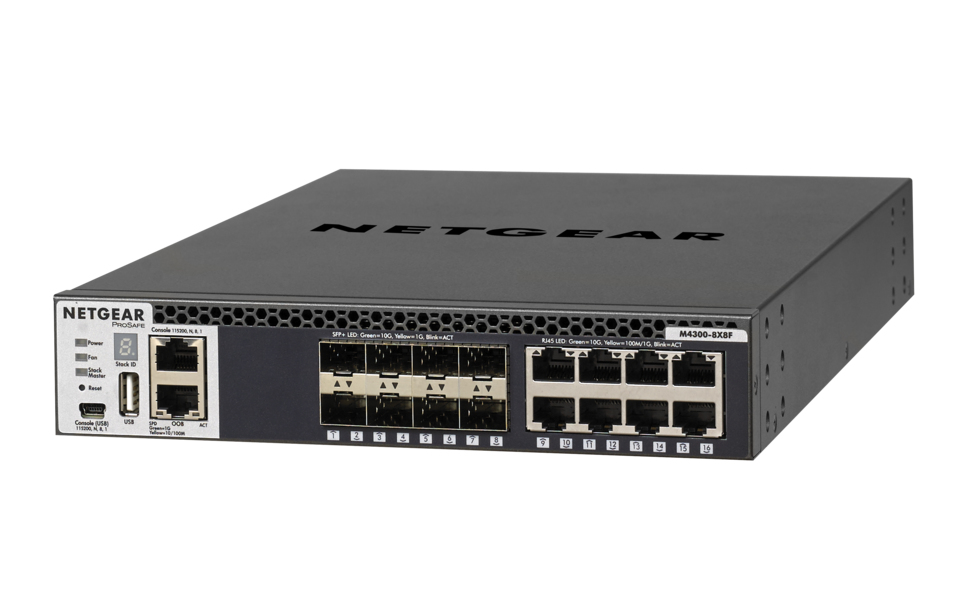

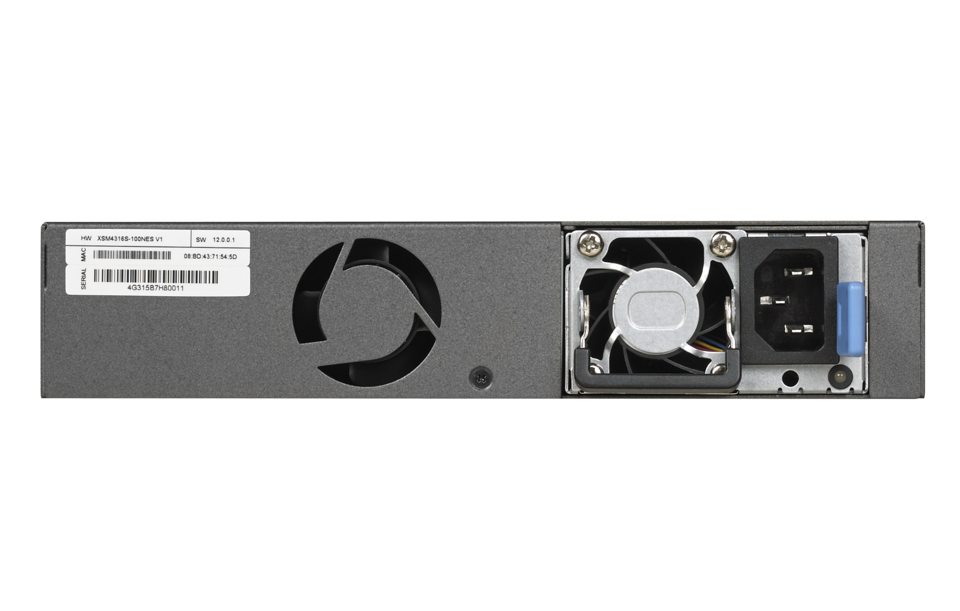

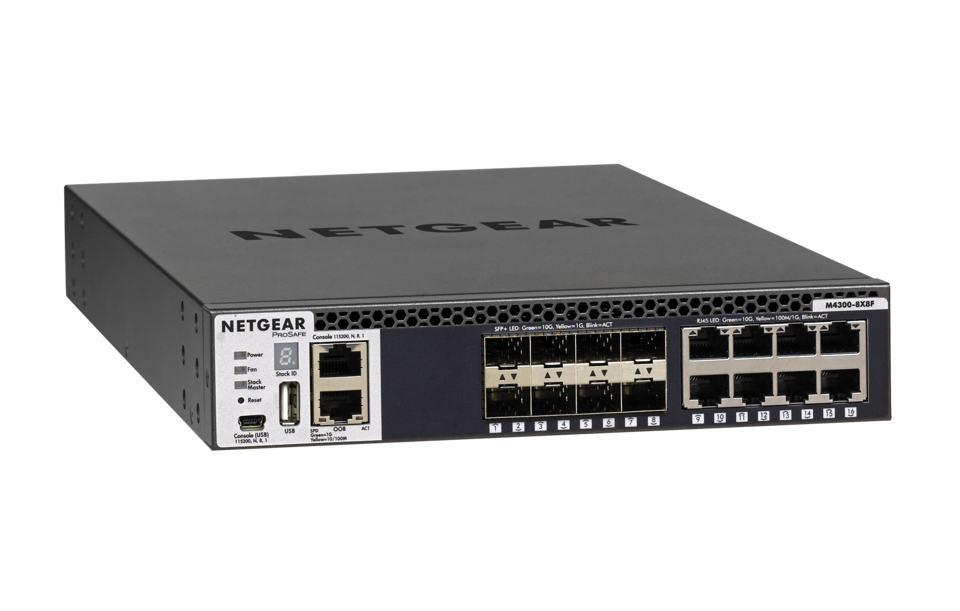

NETGEAR M4300-8X8F Switch 16-porte 10 Gigabit
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
NETGEAR XSM4316S, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az |
| 10G support | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR |
| Switching capacity | 320 Gbit/s |
| Forwarding rate | 357 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Power, Speed |
| Safety | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Electromagnetic compatibility | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 36.9 dB |
| Mean time between failures (MTBF) | 196120 h |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 120 - 230 V |
| Power consumption (max) | 49 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
