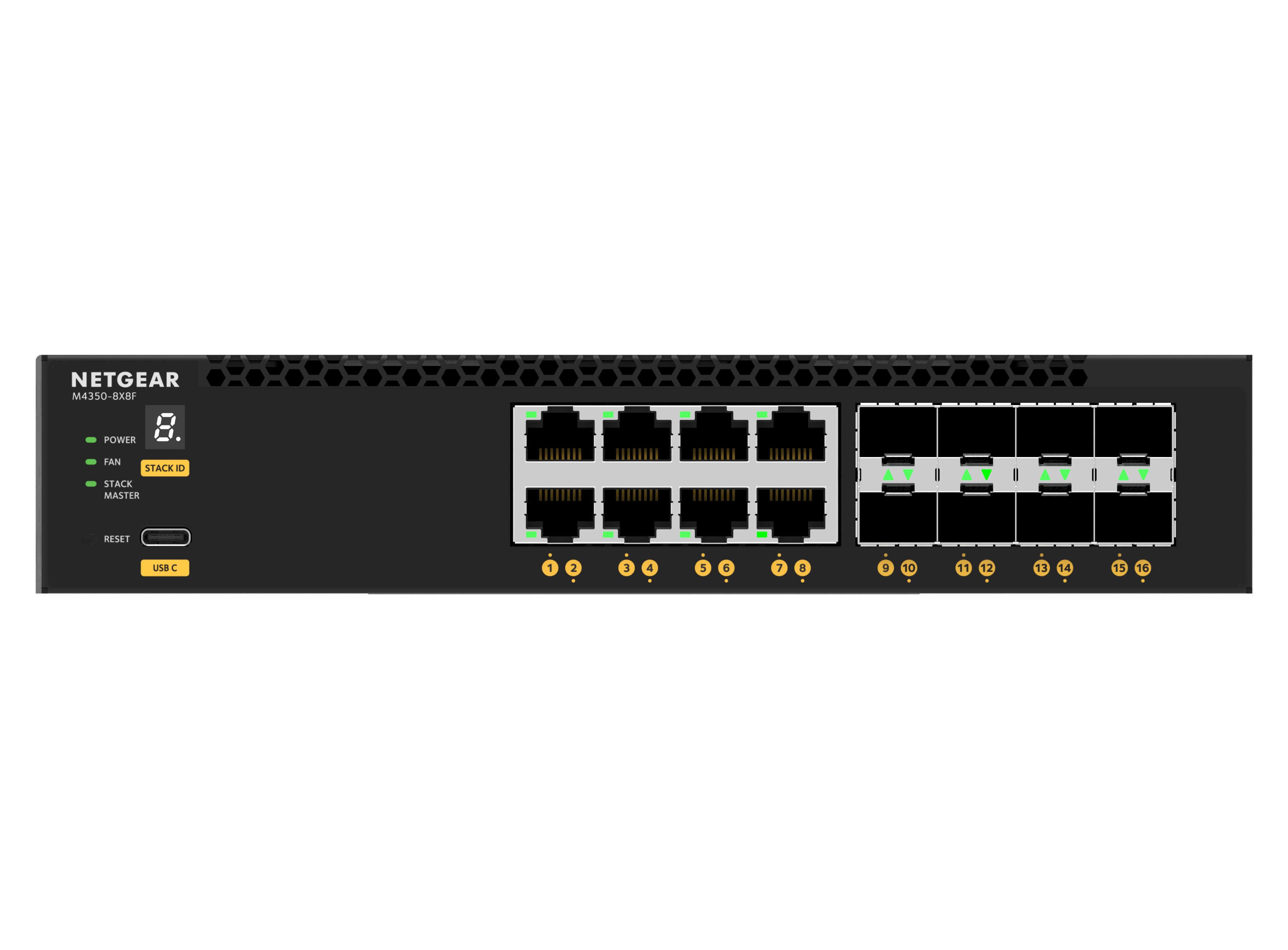

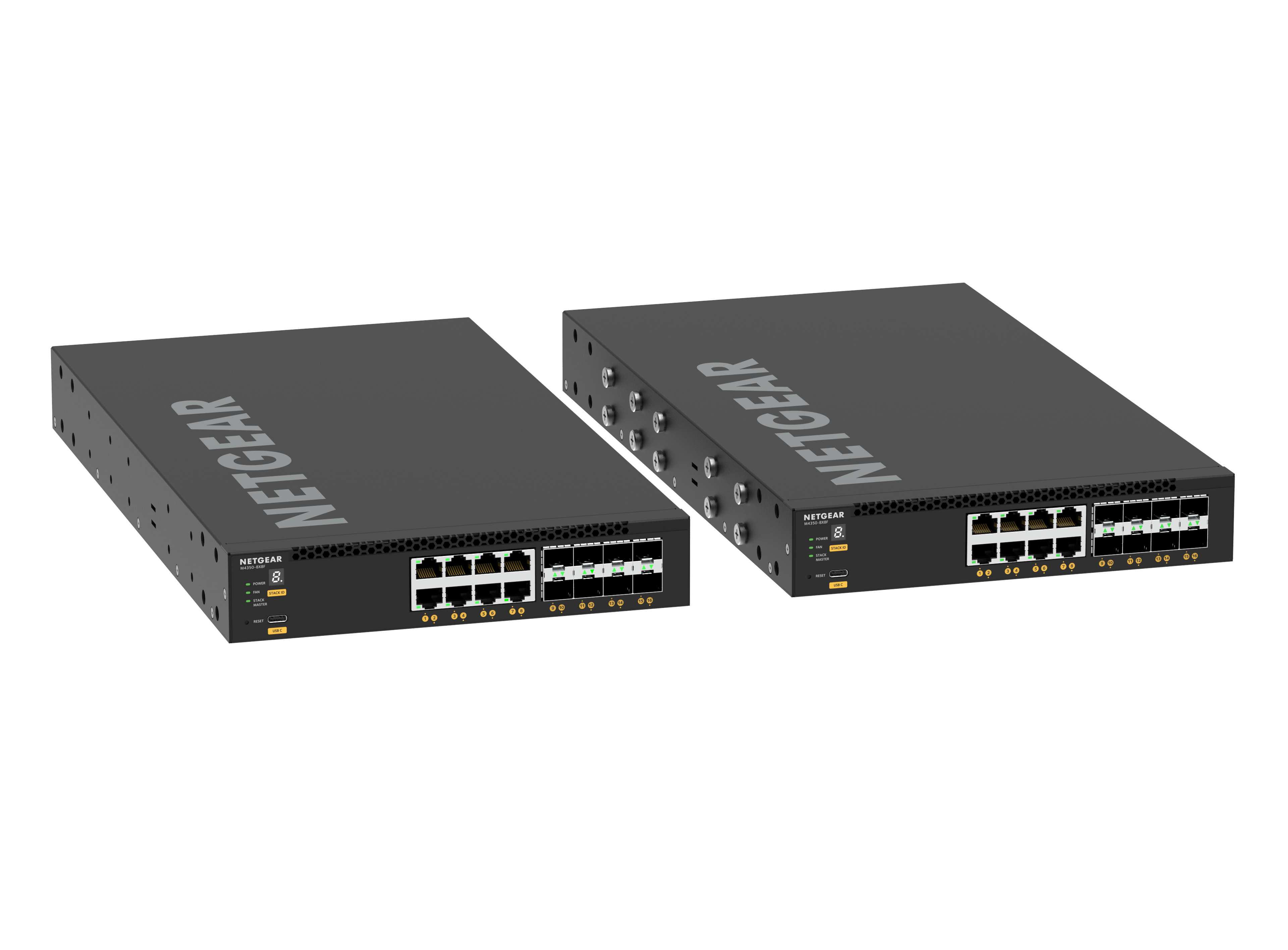

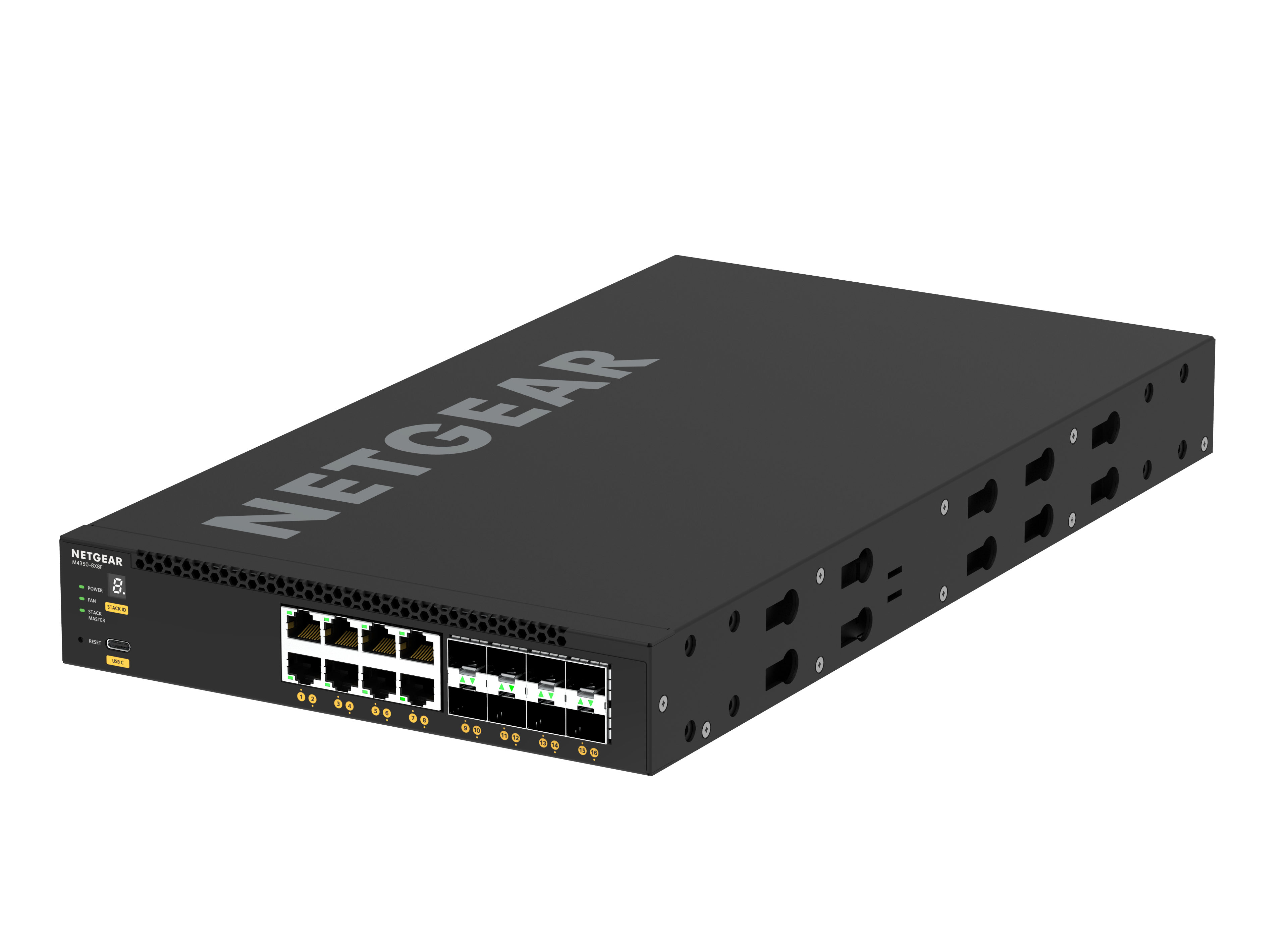

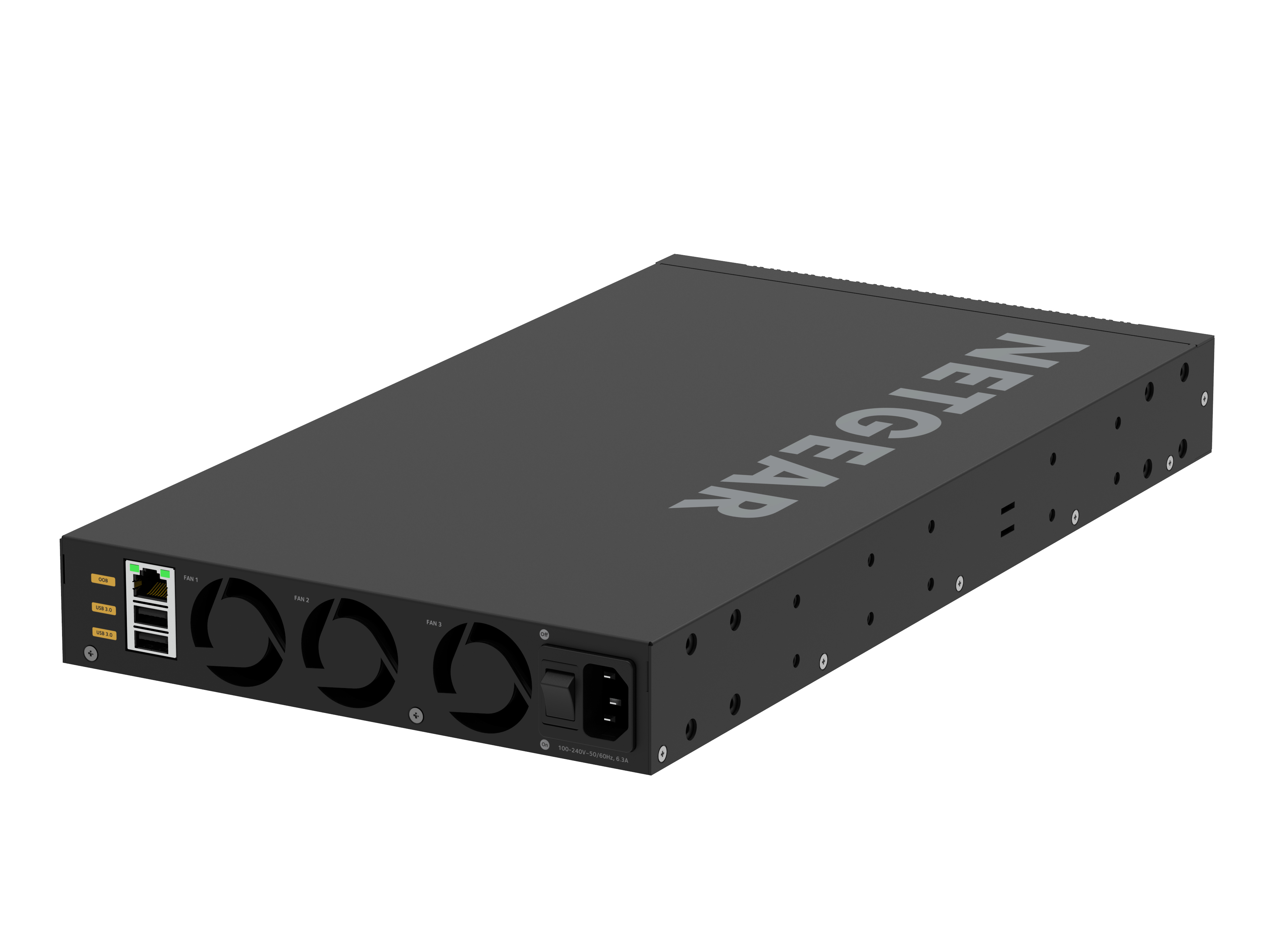

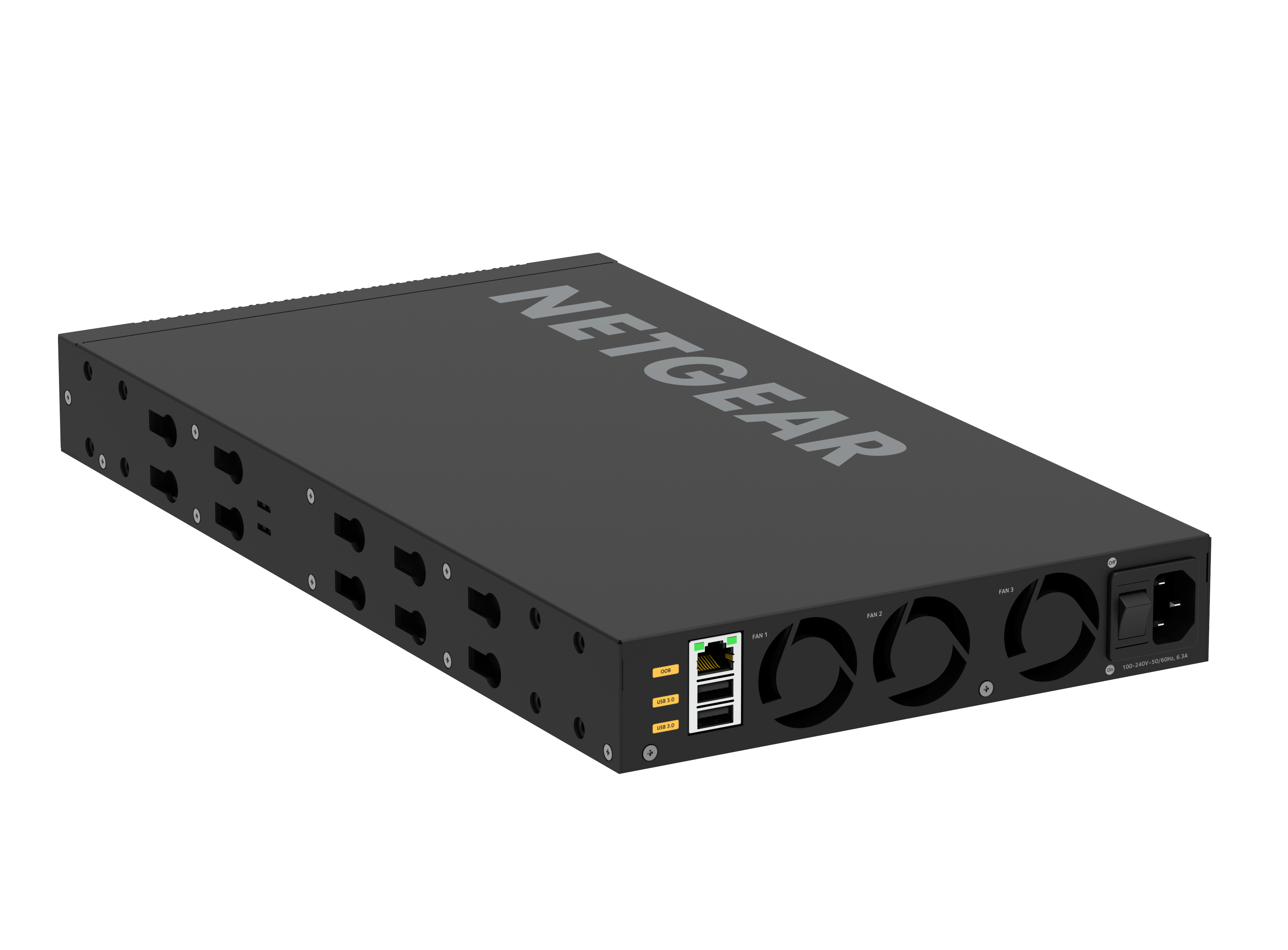

Netgear M4350-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Black
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
NETGEAR XSM4316, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 8 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| 6to4 tunnel | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 320 Gbit/s |
| Throughput | 238.08 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 2.39 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Root protection | Yes |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
