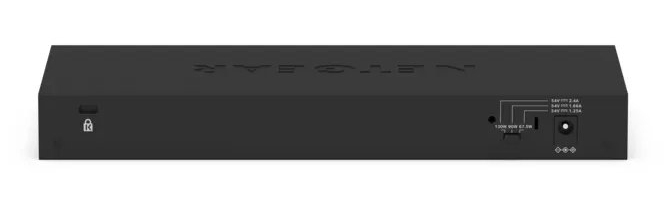

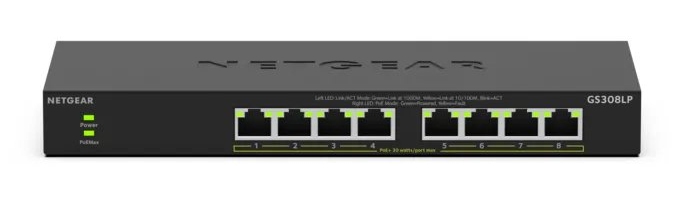

NETGEAR 8-PORT POE GIGABIT UNMANAGED SWITCH GS308LP
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
NETGEAR GS308LP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Desktop, Wall mountable
Spezifikationen
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 16 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 4000 entries |
| Latency (1 Gbps) | 2.6 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 0.192 MB |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 2752476 h |
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Input voltage | 54 V |
| Power consumption (max) | 67.5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 230.85 BTU/h |
| Width | 236 mm |
| Depth | 102 mm |
