Home · Accessories · APC Rack PDU Basic 1HE 16A 230VC13 20C13 und 4C19 IEC C20
APC

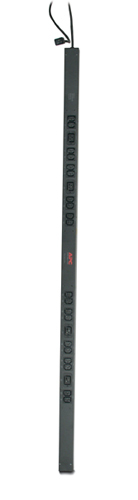

APC Rack PDU Basic 1HE 16A 230VC13 20C13 und 4C19 IEC C20
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
APC Basic Rack PDU, Basic, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler
Specifications
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| I/O ports | (4) IEC 320 C19 (20) IEC 320 C13 |
| Input connection type | IEC-320 C20 |
| Cable length | 3.05 m |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Certification | CCC,CE,GOST,IRAM,VDE |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 55.9 mm |
| Depth | 43.9 mm |
| Height | 1619.3 mm |
| Weight | 4.86 kg |
| Package weight | 5.77 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
