APC Smart-UPS X 2200 Rack/Tower LCD UPS Rack AC 208/230V 1980Watt 2200VA 1-phase RS-232 USB output connectors 11 2U Black
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Passer til jeres setup
Vi klargør maskinen med jeres Microsoft 365-profil, Intune-politikker og printere, før den sendes. I skal bare logge ind.
Skal udstyret sættes op på plads, tilføjer vi gerne en tekniker i kurven — sig til, så retter vi ordren inden den pakkes.
Beskrivelse
APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB, expandable runtime, Line-Interactive, 2.2 kVA, 1980 W, Sine, 50/60 Hz, 208 V
Specifikationer
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 645 J |
| Response time | 4 ms |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.1% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 702 VAh |

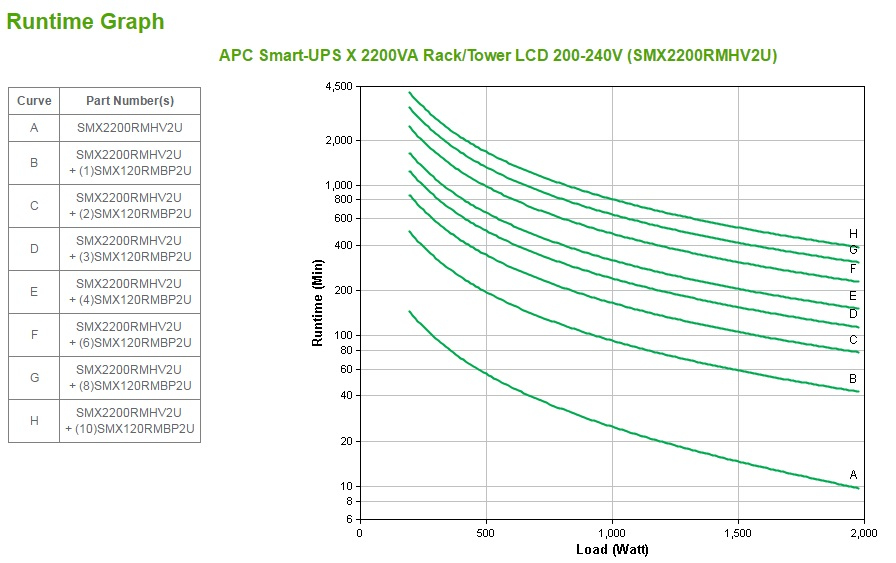

| Typical backup time at full load | 9.8 min |
| Typical backup time at half load | 25.3 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 1.83 m |
| Product colour | Black |
| LED indicators | Battery replacement |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Management card included | No |
| Manual | Yes |
| Sustainability certificates | Green Premium |
| Width | 432 mm |
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 37.3 kg |
| Software CD | Yes |
| Package width | 596 mm |
| Package depth | 869 mm |
| Package height | 243 mm |
