APC
APC Smart-UPS SRT10KRMXLI 10000 VA RM
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC, Double-conversion (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
Specifikationer
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 476 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 480 J |
| Number of output phases | 1 |
| Efficiency | 94.6% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |

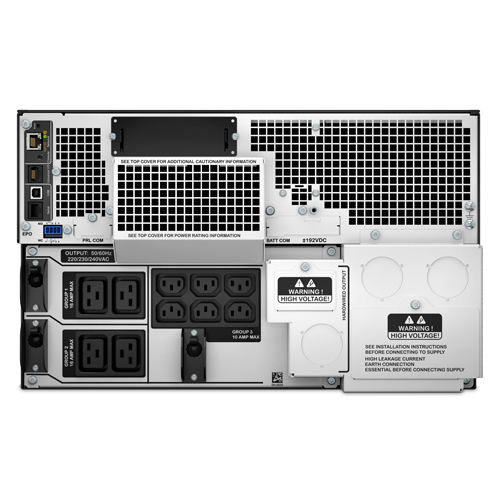

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 VAh |

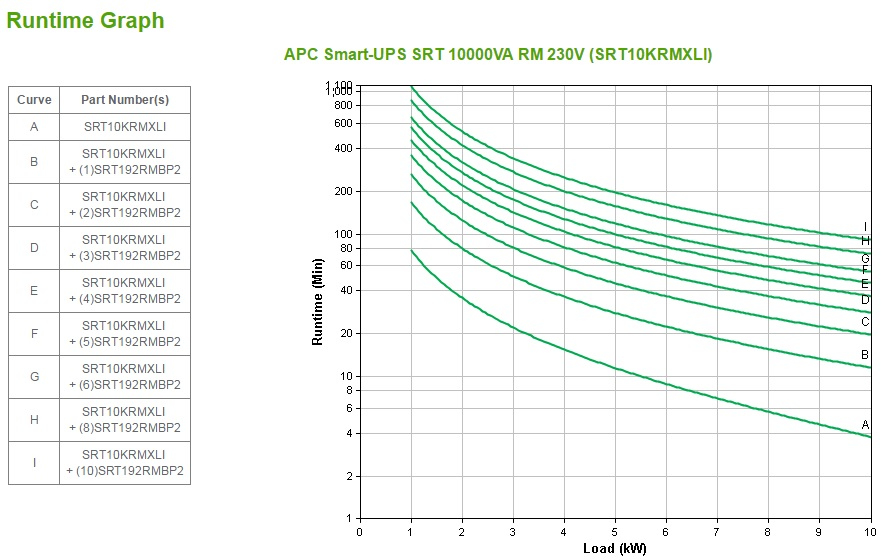

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |

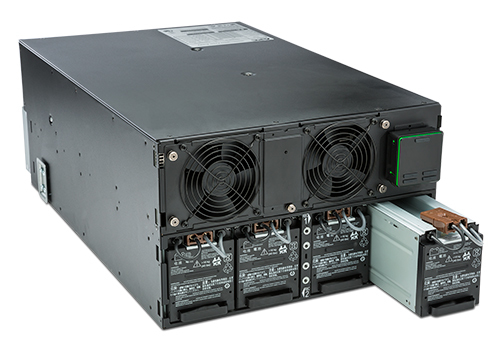

| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
| Rack capacity | 6U |
| Product colour | Black |

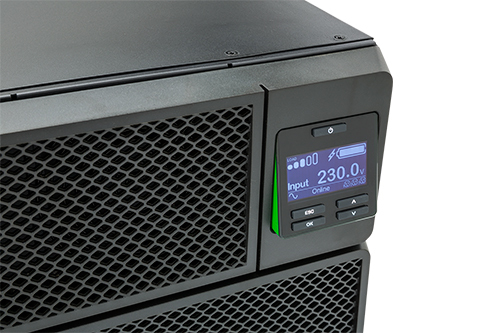

| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Rack mount kit | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
| Width | 432 mm |
| Depth | 715 mm |
| Height | 263 mm |
| Weight | 111.8 kg |
