Forside · Tilbehør · APC Smart-UPS SRT 2200VA UPS AC 230V 1980Watt 2200VA RS-232 USB output connectors 10
APC

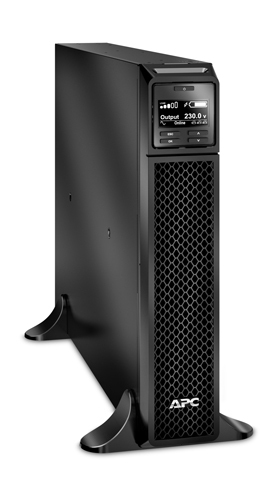

APC Smart-UPS SRT 2200VA UPS AC 230V 1980Watt 2200VA RS-232 USB output connectors 10
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 2.2 kVA, 1980 W, Sine, 100 V, 275 V
Specifikationer
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Efficiency | 92.2% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 367 VAh |
| Number of batteries supported | 1 |
| Typical backup time at full load | 3.9 min |
| Typical backup time at half load | 11.6 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Cables included | USB cable |
| Management card included | No |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Width | 85 mm |
| Depth | 584 mm |
| Height | 432 mm |
| Weight | 25 kg |
