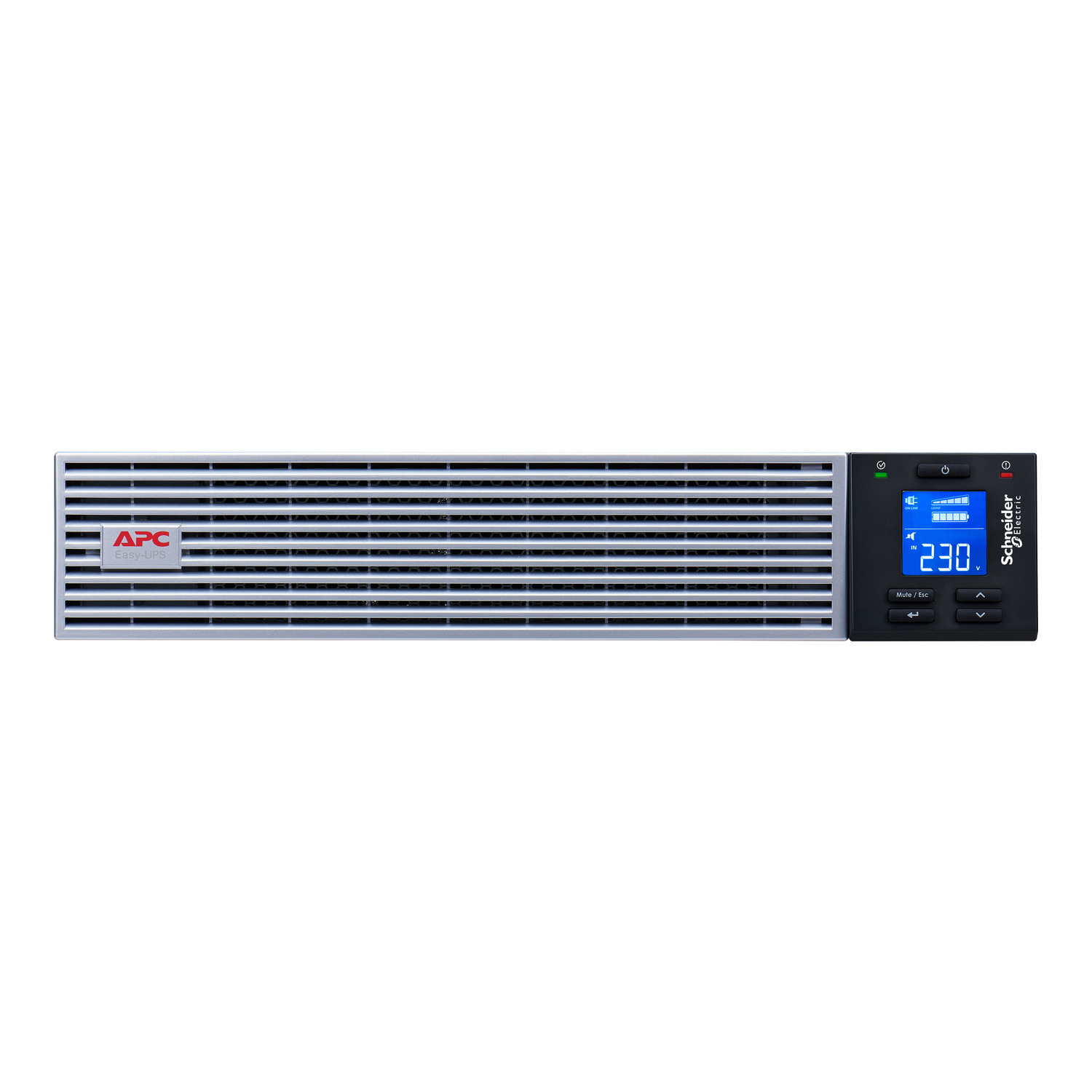

APC Easy UPS On-Line UPS Rack AC 230V 2700Watt 3000VA 1 x battery Li-ion RS-232 USB oc 7 2U 19 BK with silver
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 2U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, W/ rail kit, Double-conversion (Online), 3 kVA, 2700 W, Sine, 110 V, 300 V
Specifikationer
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 945 J |
| Heat dissipation | 1024 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 V |
| Efficiency | 90% |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Power source type | AC |
| Detachable power cord | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 48 V |
| Typical backup time at full load | 9 min |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 1.5 h |
| Replacement battery cartridge | RBCV183-LI |

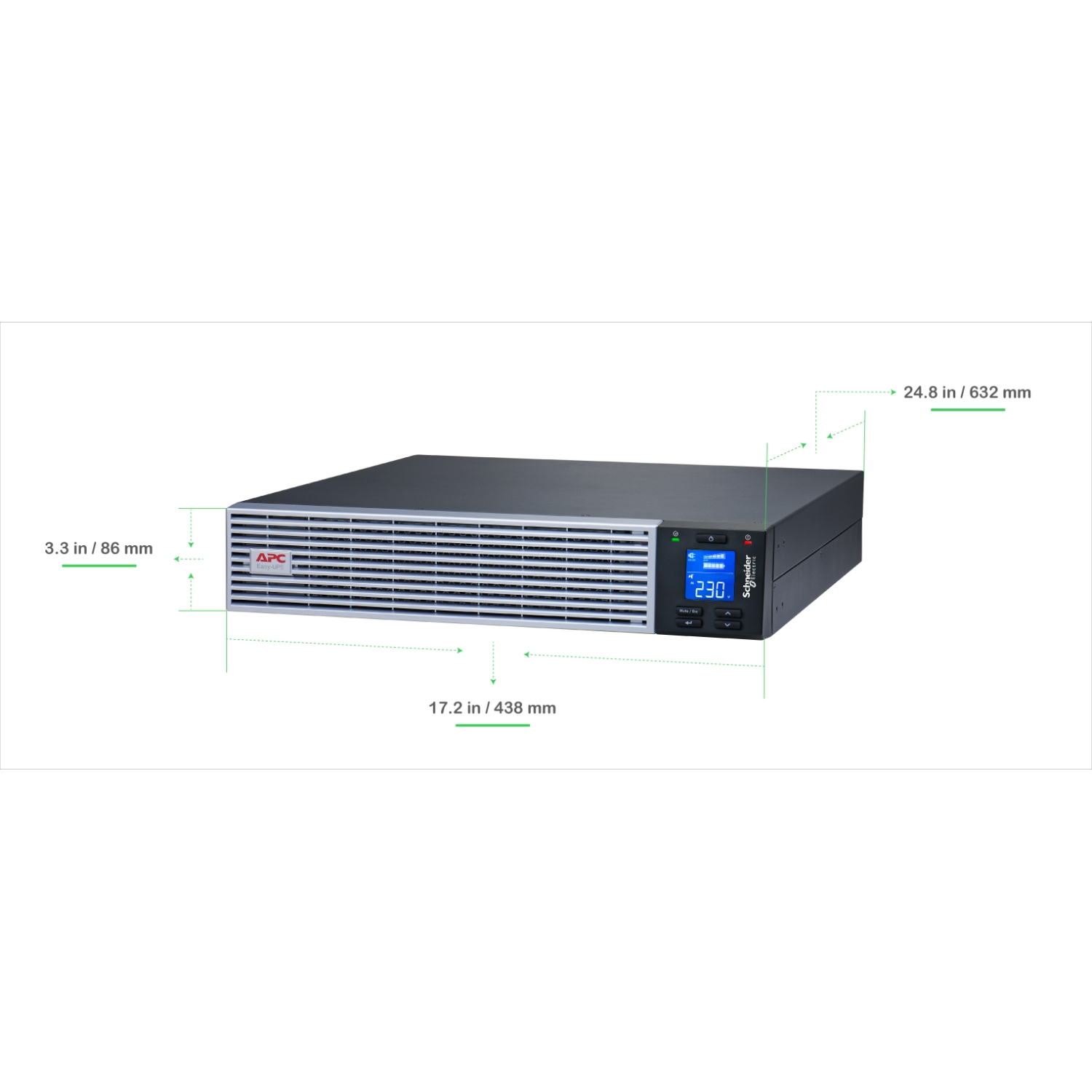

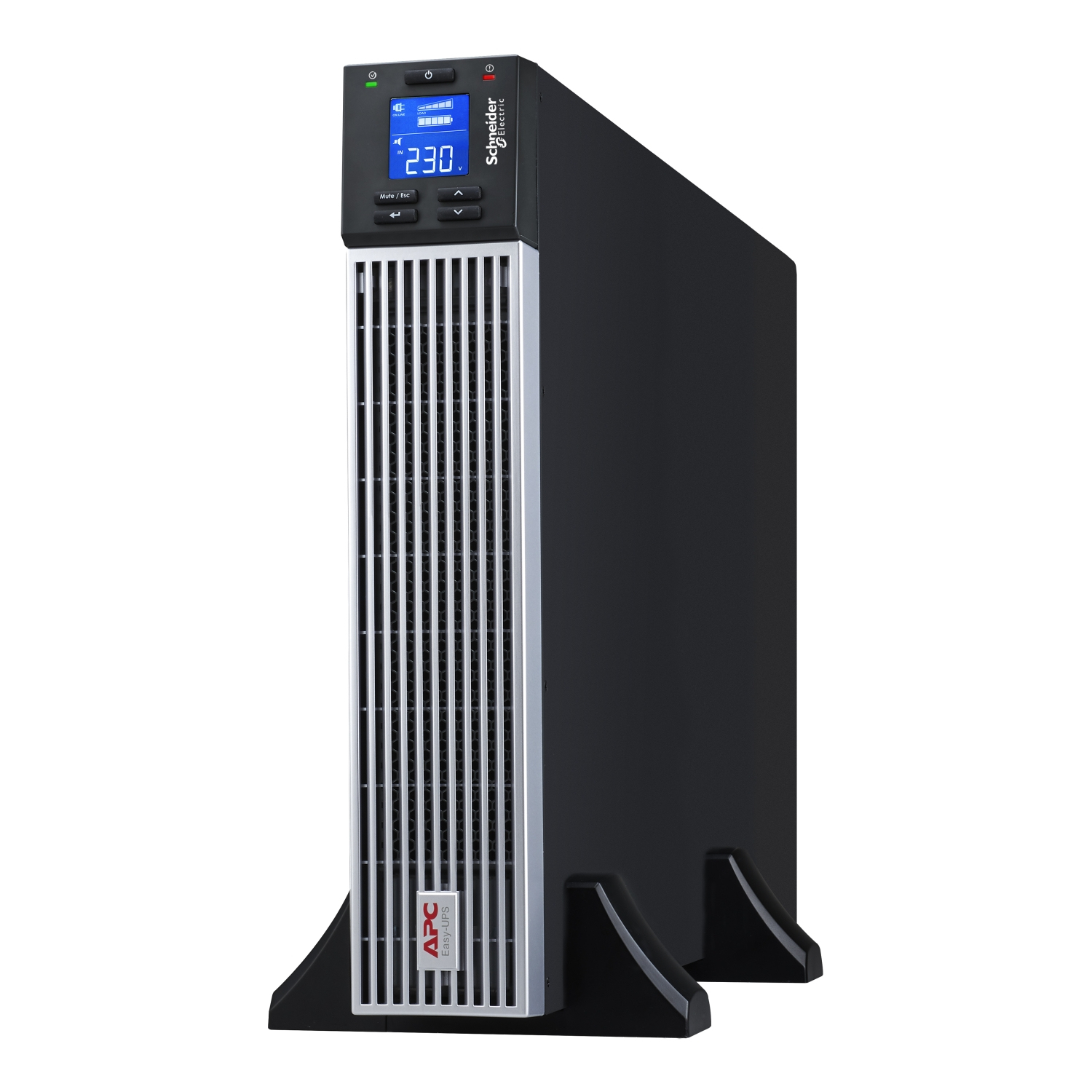

| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black, Silver |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CB; CE; UKCA; UN 38.3; IEC 62619 |
| Rack mount kit | Yes |
| Cables included | Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable |
| Sustainable packaging | No |
