D-Link

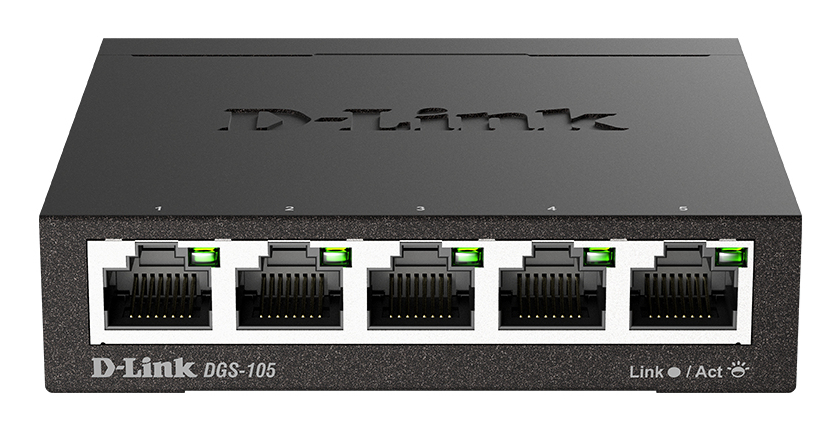

D-Link DGS-105 5*GE retail
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
D-Link DGS-105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Specifikationer
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

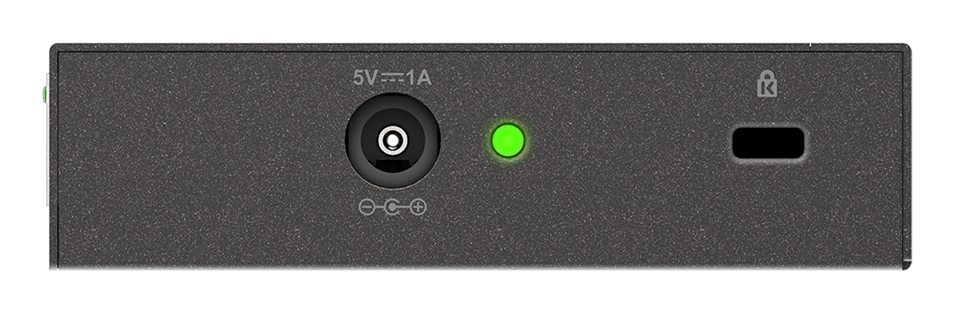

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
| MAC address filtering | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Mean time between failures (MTBF) | 1688338 h |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.1 W |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 267 g |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Shipping (inner) case height | 36.6 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case net weight | 5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 439.8 kg |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 439.8 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 5.53 kg |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Harmonized System (HS) code | 85176990 |
