D-Link

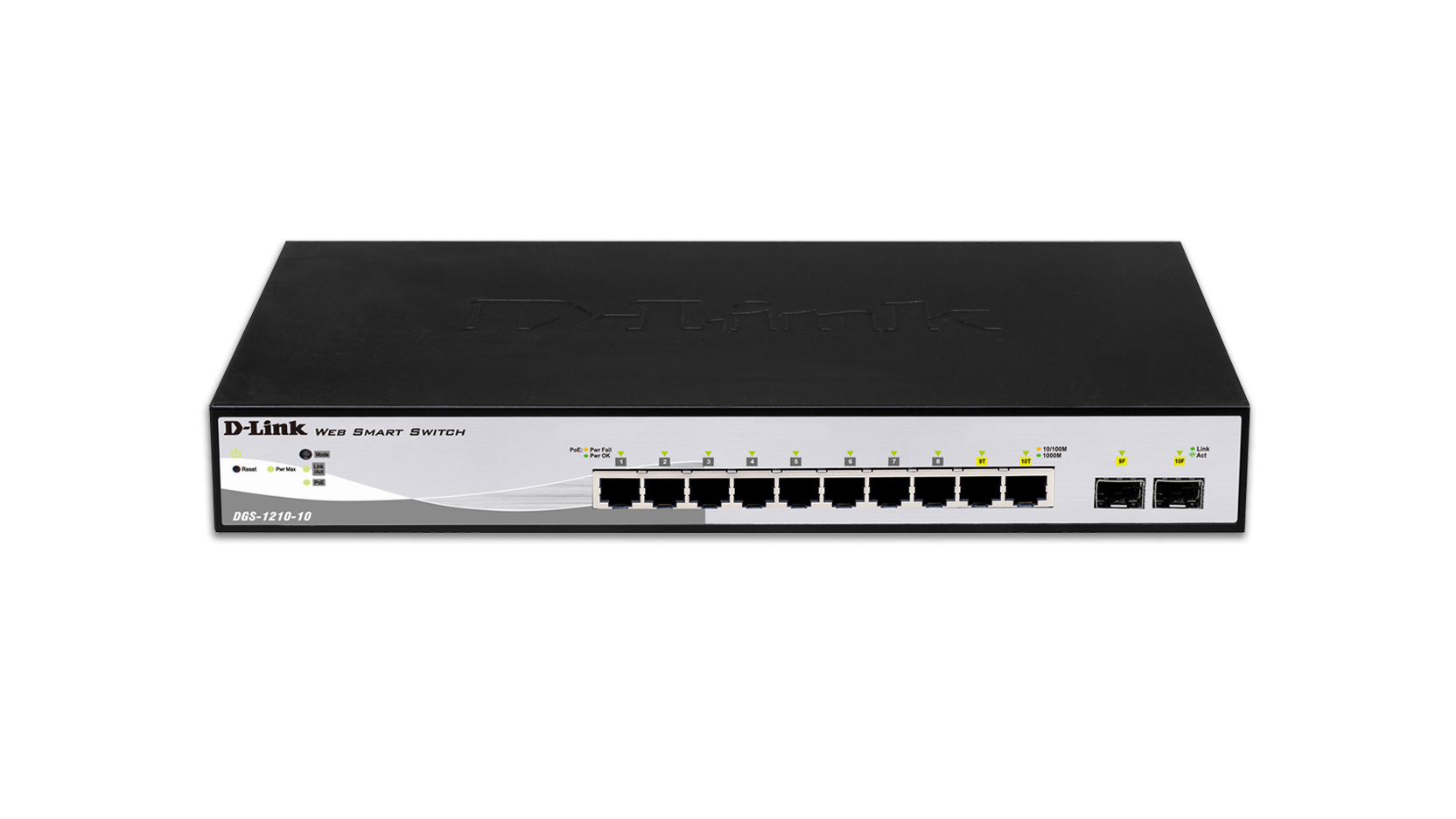

D-Link DGS 1210-10 Switch 10-porte Gigabit
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
D-Link DGS-1210-10, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.512 MB |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| Multicast support | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| Mean time between failures (MTBF) | 205249 h |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 373.96 BTU/h |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 980 g |
| Package width | 286 mm |
| Package depth | 325 mm |
| Package height | 70 mm |
| Package weight | 2.08 kg |
| Shipping (inner) case height | 31.7 cm |
| Shipping (inner) case width | 34.6 cm |
| Shipping (inner) case length | 38.2 cm |
| Shipping (inner) case net weight | 10.4 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 425.5 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
