Startseite · Netzwerk · D-Link Web Smart DGS-1210-10P Switch 10-porte Gigabit PoE+
D-Link

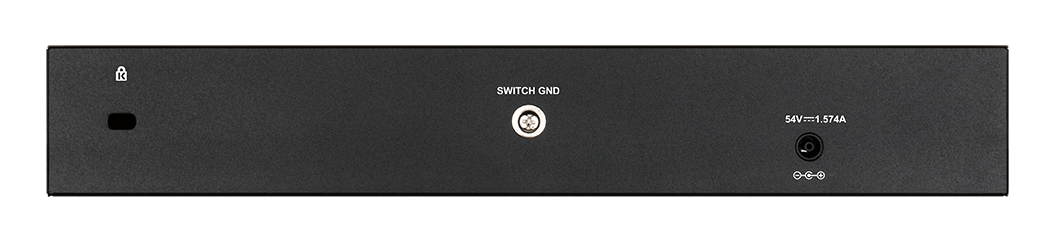

D-Link Web Smart DGS-1210-10P Switch 10-porte Gigabit PoE+
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
D-Link DGS-1210-10P, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Spezifikationen
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 MB |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Multicast support | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 729258 h |
| Power consumption (max) | 80.6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Total Power over Ethernet (PoE) budget | 78 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 373.96 BTU/h |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 950 g |
| Package width | 288 mm |
| Package depth | 331 mm |
| Package height | 72 mm |
| Package weight | 2.21 kg |
| Certification | EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC |
