D-Link

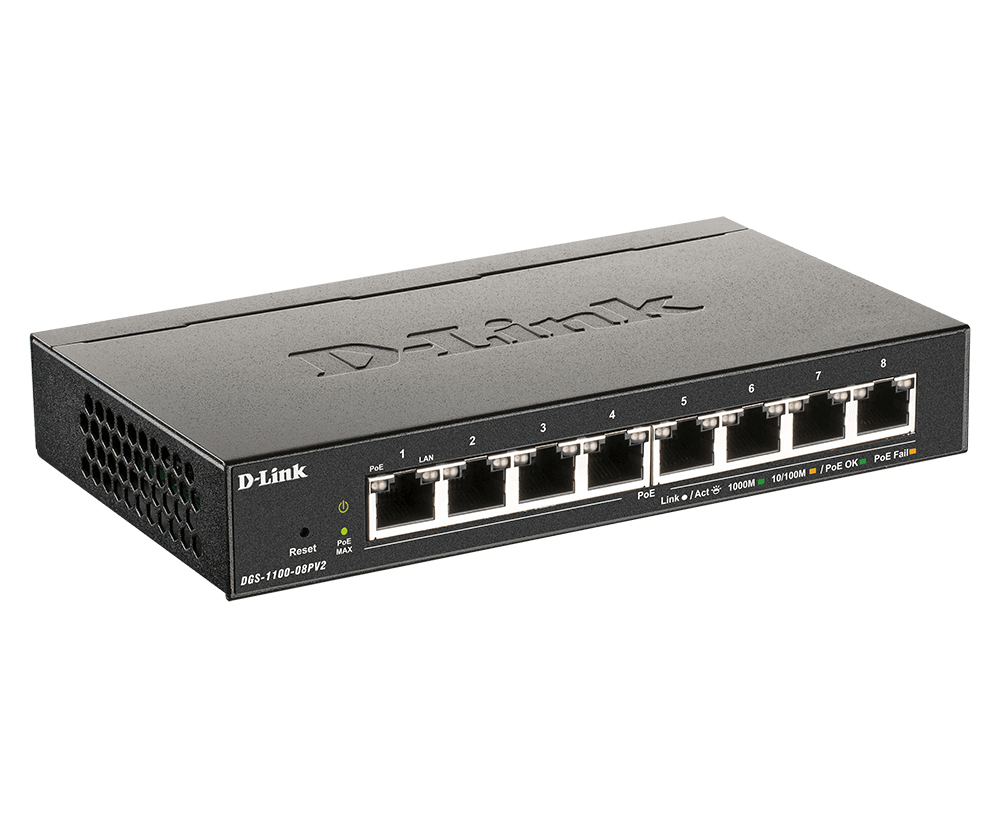

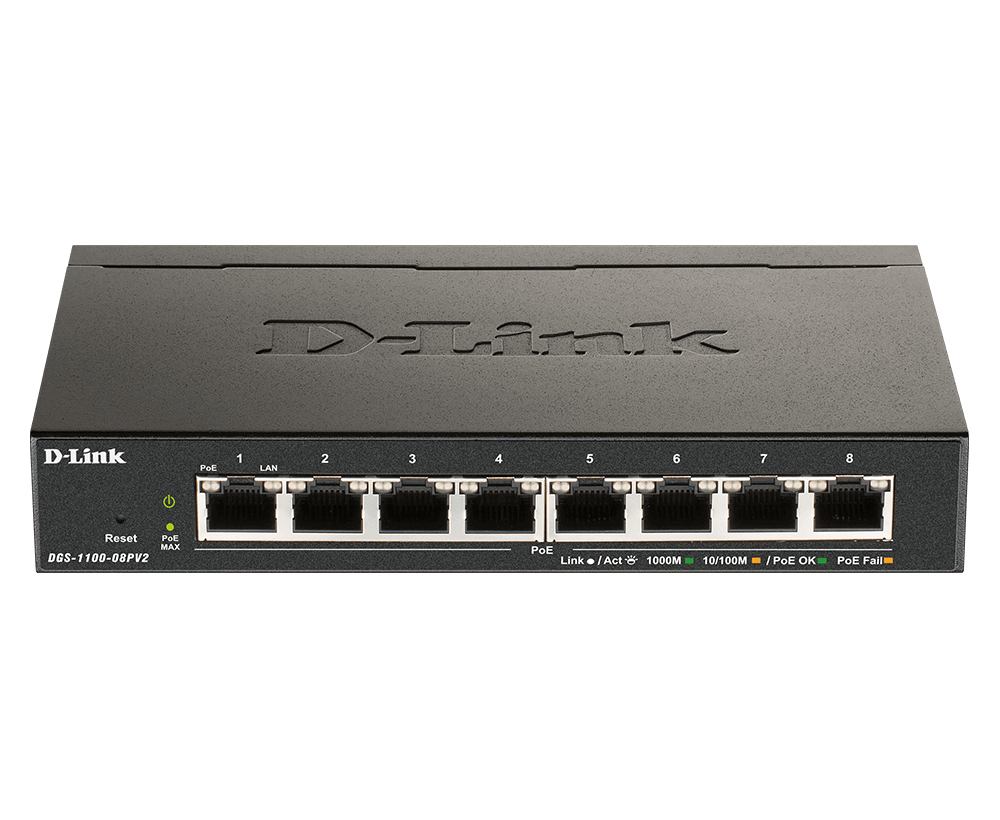

D-Link DGS 1100-08PV2 Switch 8-porte Gigabit PoE
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
D-Link DGS-1100-08PV2, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Specifikationer
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4096 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Flash memory | 2 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 786841 h |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 77.9 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 64 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 265.85 BTU/h |
| Width | 171 mm |
| Depth | 97.8 mm |
| Height | 28.6 mm |
| Weight | 430 g |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Certification | FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI |
