Forside · Stationære · Shuttle XPC slim DN11H9 Slim-PC Core Ultra 9 185H 0GB 0GB Intel Arc Graphics No-OS
Shuttle Computer Group
Shuttle XPC slim DN11H9 Slim-PC Core Ultra 9 185H 0GB 0GB Intel Arc Graphics No-OS
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Passer til jeres setup
Vi klargør maskinen med jeres Microsoft 365-profil, Intune-politikker og printere, før den sendes. I skal bare logge ind.
Skal udstyret sættes op på plads, tilføjer vi gerne en tekniker i kurven — sig til, så retter vi ordren inden den pakkes.
Beskrivelse

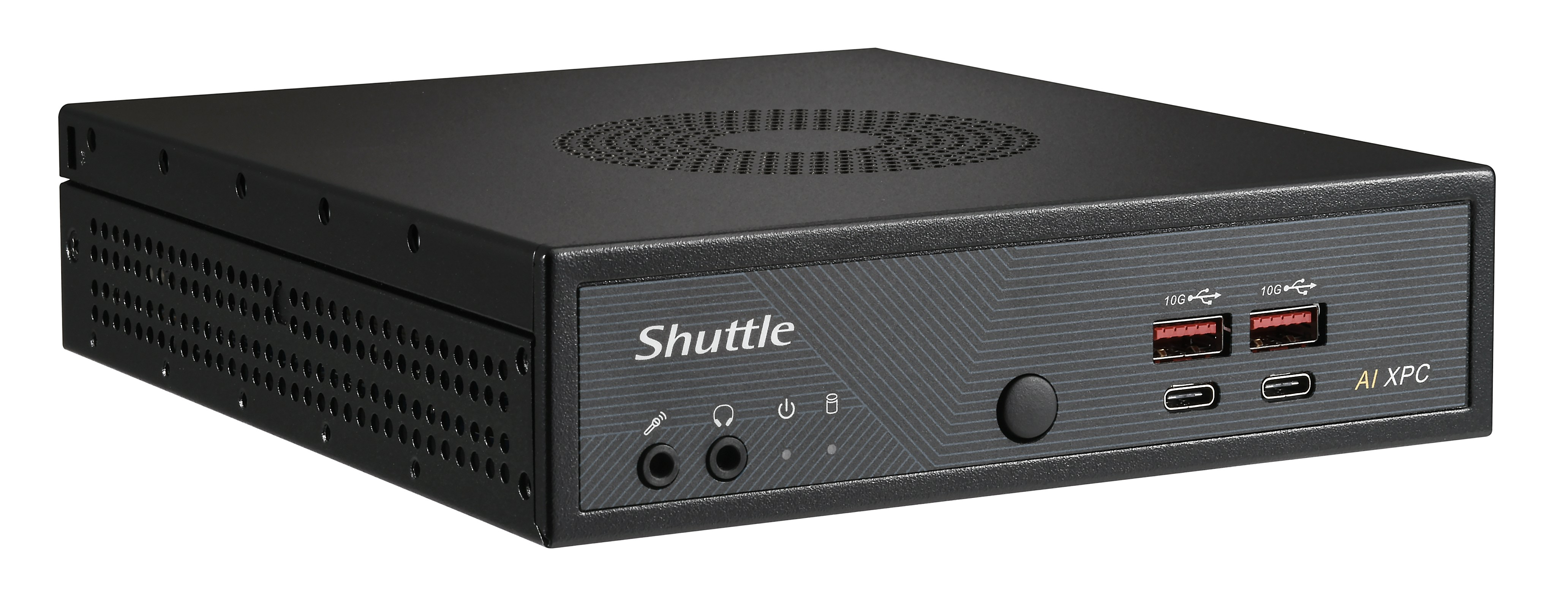

Shuttle Slim AI PC DN11H9 Intel Core Ultra 9 185H, Intel Arc graphics, 2xHDMI, 2x DP, 4x 2.5 Gbit LAN, VESA, 24/7 permanent operation, 1.35L sized PC, Mini PC barebone, Intel SoC, DDR5-SDRAM, PCI Express, 120 W
Specifikationer
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 185H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Built-in processor | Yes |
| Processor cache | 24 MB |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | No |
| Non-ECC | Yes |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| NVMe | Yes |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| Motherboard chipset | Intel SoC |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I226-LM |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Housing material | Metal |
