Shuttle DB860 Barebone LGA1851 0GB No-OS
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Passer til jeres setup
Vi klargør maskinen med jeres Microsoft 365-profil, Intune-politikker og printere, før den sendes. I skal bare logge ind.
Skal udstyret sættes op på plads, tilføjer vi gerne en tekniker i kurven — sig til, så retter vi ordren inden den pakkes.
Beskrivelse

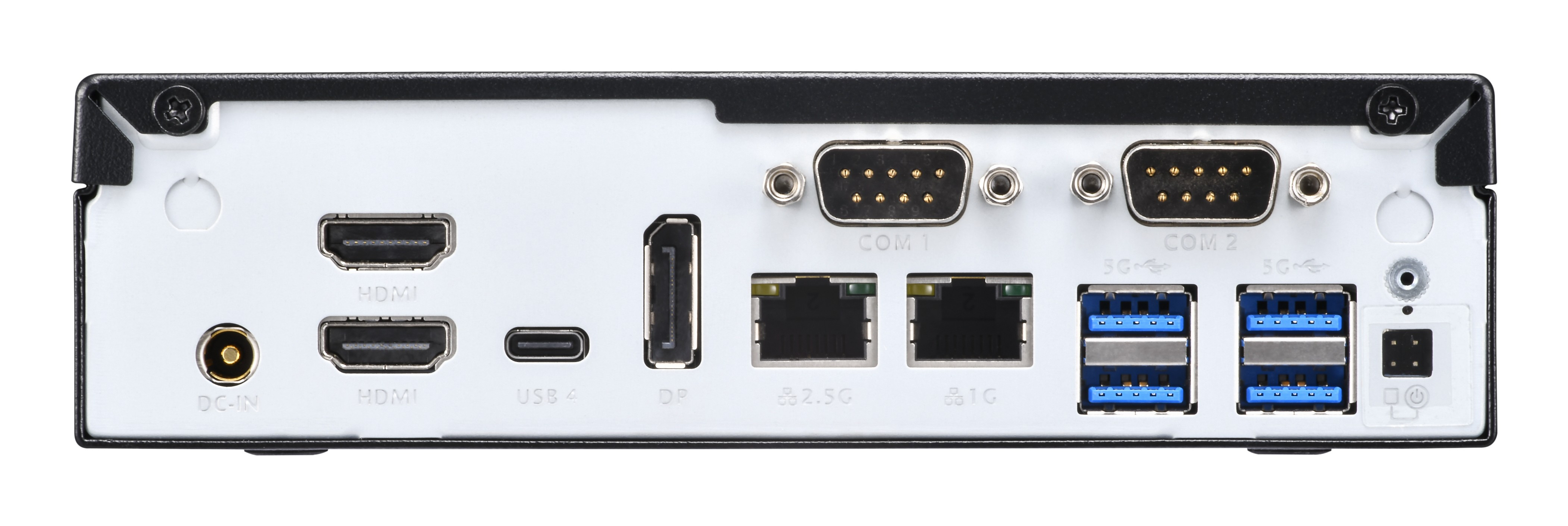

Shuttle Slim PC DB860 , S1851, 2x HDMI, 1x DP, 1x USB-C (DP), 1x 2.5", 1x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl. VESA, 1.35L sized PC, Mini PC barebone, Intel B860, LGA 1851 (Socket V1), DDR5-SDRAM, M.2, PCI Express, Serial ATA
Specifikationer
| Built-in processor | No |
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | No |
| Non-ECC | Yes |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| On-board graphics card | Yes |

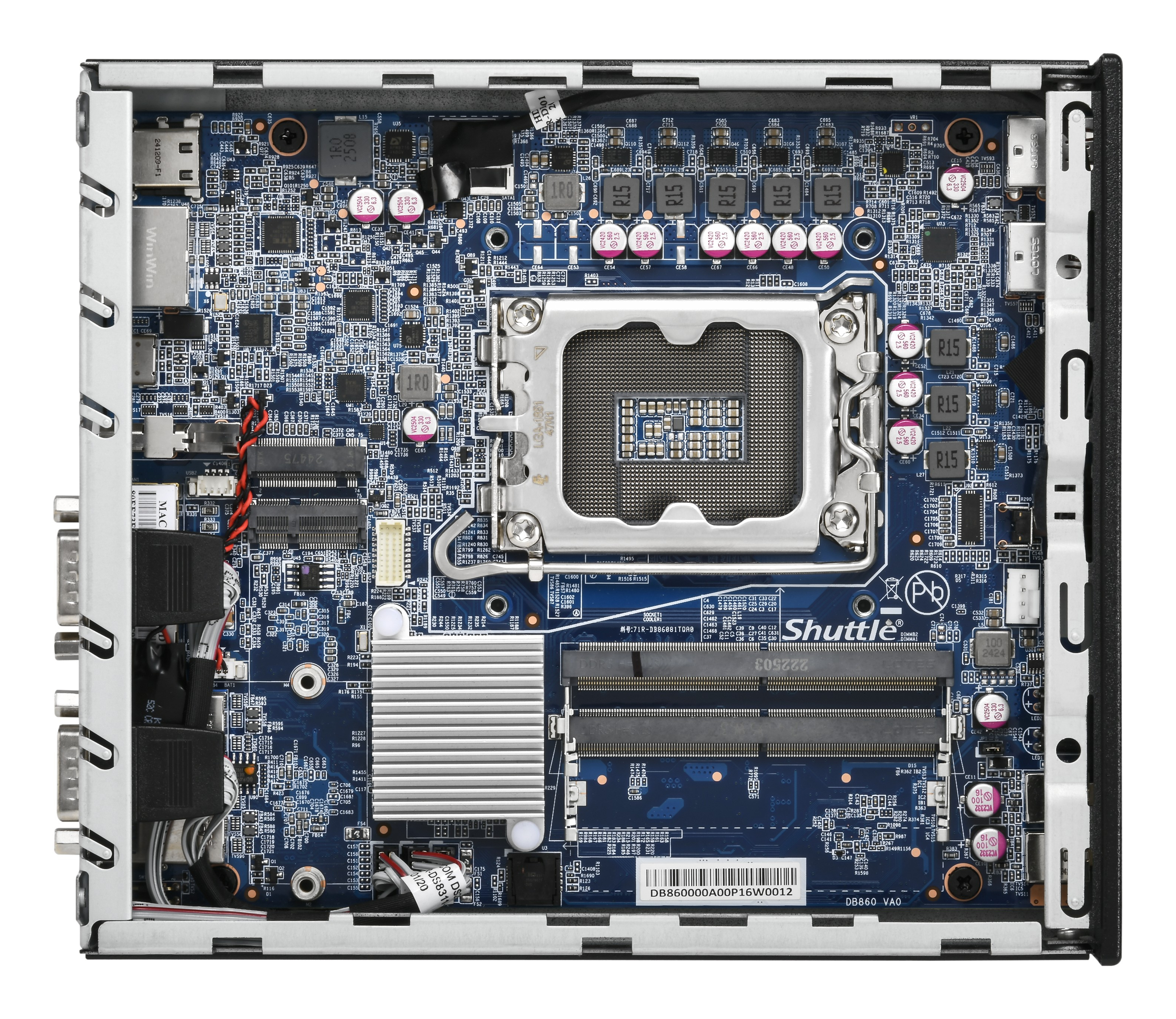

| Motherboard chipset | Intel B860 |
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| BIOS type | EFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 2.0 channels |
| Audio chip | Realtek ALC888S |
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I226 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0/2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
| Chassis type | 1.35L sized PC |
| Product colour | Black |

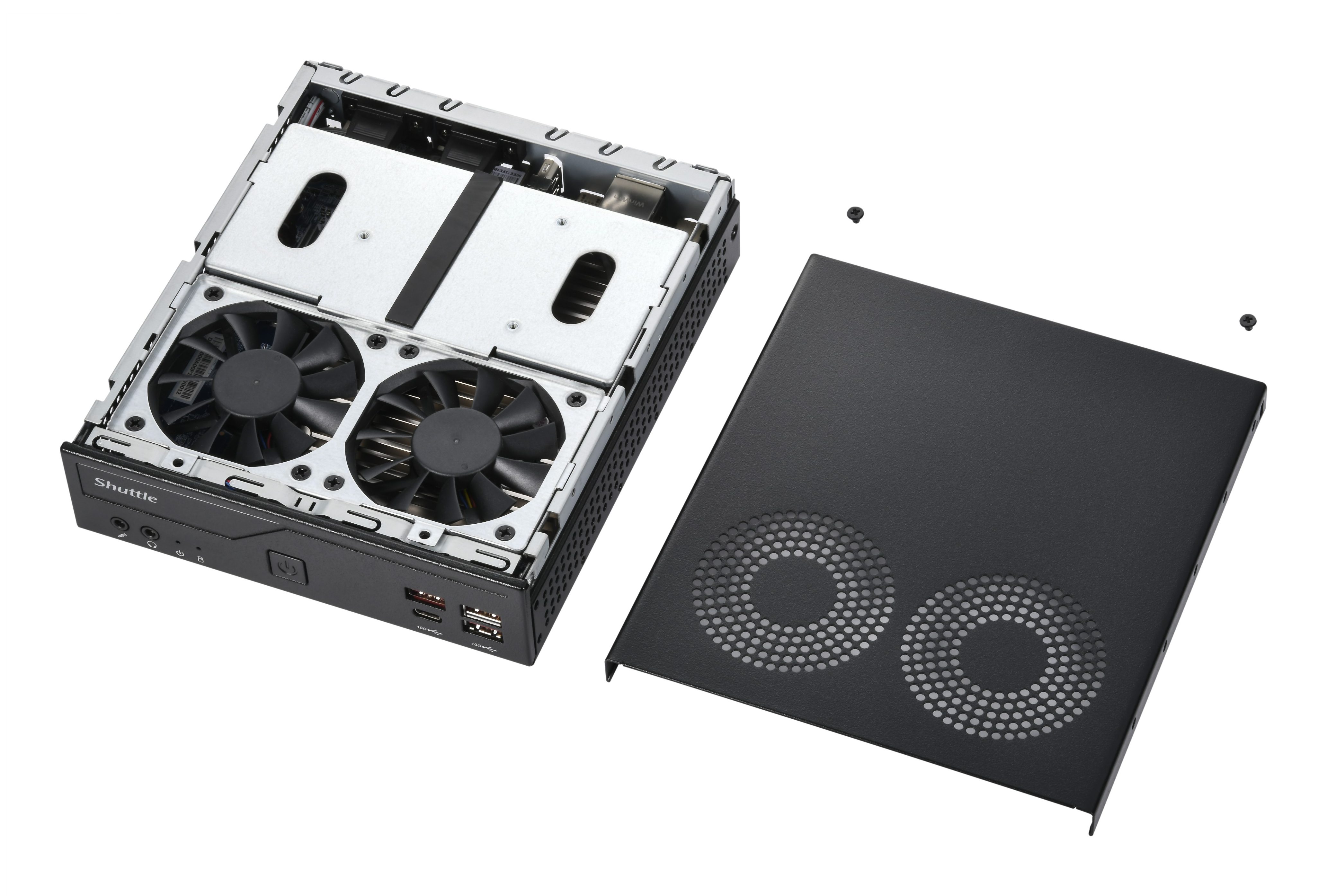

| Cooling type | Active |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Compliance certificates | BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Harmonized System (HS) code | 84733080 |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Power supply type | External AC adapter |
| Power supply | 180 W |
