TP-Link

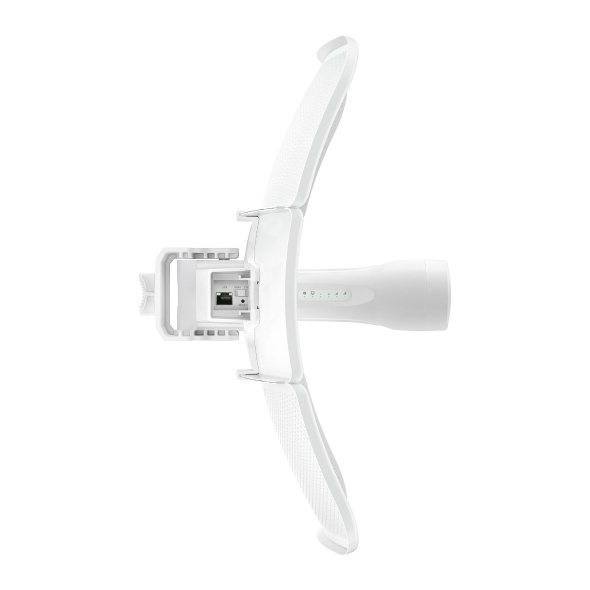

Omada Beam 5 UR Kit 5GHz Ultra-Range Wireless Bridge
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
TP-Link Beam Bridge 5 UR KIT, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
Specifikationer
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna design | External |
| Antenna type | 2x2 |
| Antenna gain level (max) | 23 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 5.150 - 5.850 GHz |
| Signal strength | 27 dBm |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Output power (dBm) | 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C, FCC (Conducted Power) 5 GHz: 27 dBm in U-NII-1, 27 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Product type | Network bridge |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 360000 h |
| Power source type | PoE |
| Power consumption (typical) | 15.8 W |
| Power consumption (max) | 15.8 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 158 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Compliance certificates | Federal Communications Commission (FCC) |
| Certification | ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1 |
| Width | 366 mm |
| Depth | 280 mm |
| Height | 207 mm |
| Weight | 1.1 kg |
| Packaging content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Package width | 390 mm |
| Package depth | 296 mm |
| Package height | 165 mm |
| Package weight | 3.74 kg |
| Package type | Box |
