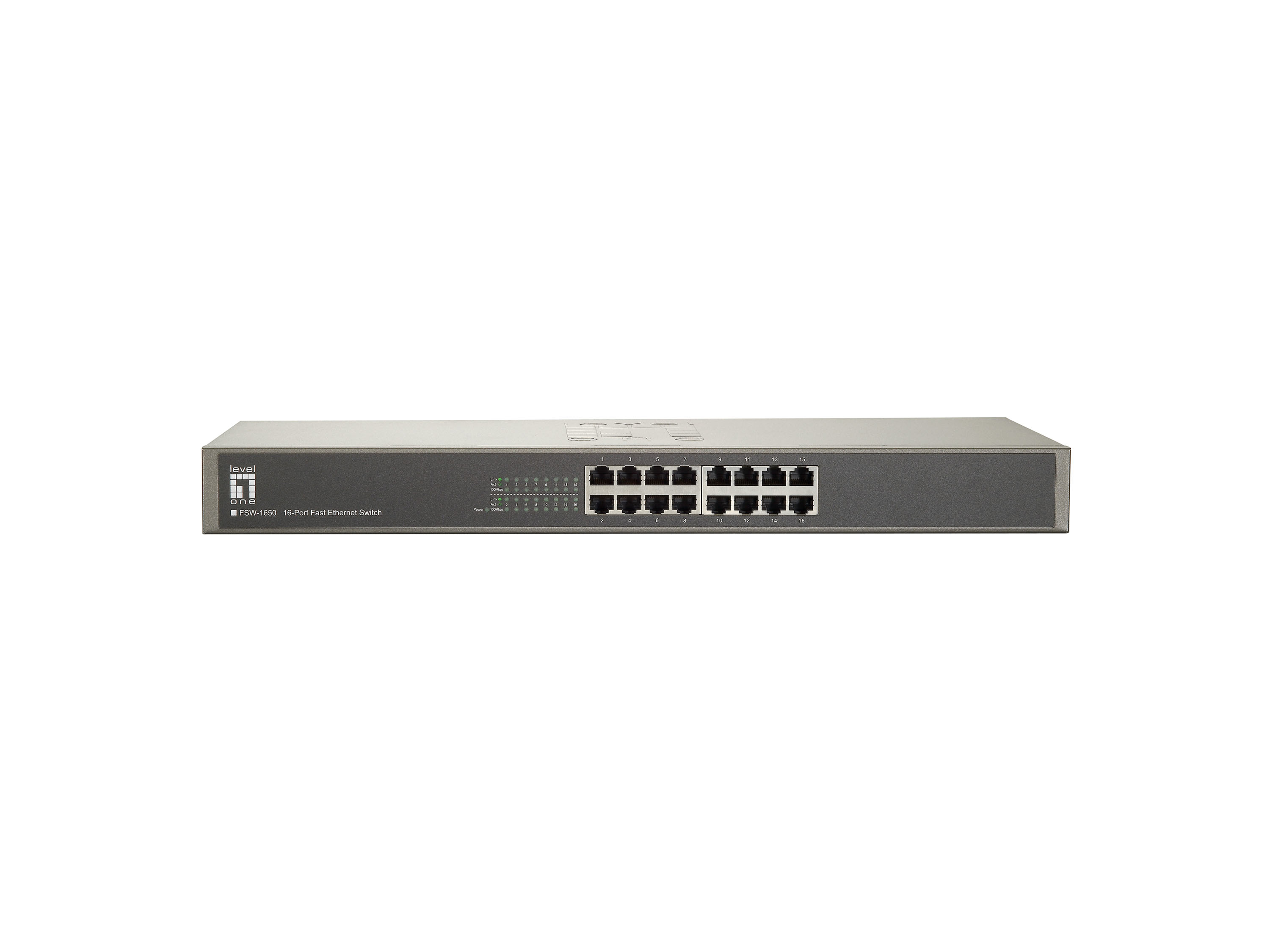

Switch 16 Port LevelOne FSW-1650
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
LevelOne 16-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting
Spezifikationen
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Switching capacity | 3.2 Gbit/s |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Switching protocols | CSMA/CD |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, Power |
| Buffer size | 160 KB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.2 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 44 mm |
| Depth | 208 mm |
| Height | 440 mm |
| Weight | 2.6 kg |
| Cables included | AC |
| Quick start guide | Yes |
| Wall mounting kit | Yes |
| Package width | 308 mm |
| Package depth | 94 mm |
| Package height | 550 mm |
| Package weight | 2.7 kg |
| Certification | CE RoHS |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
