Level One

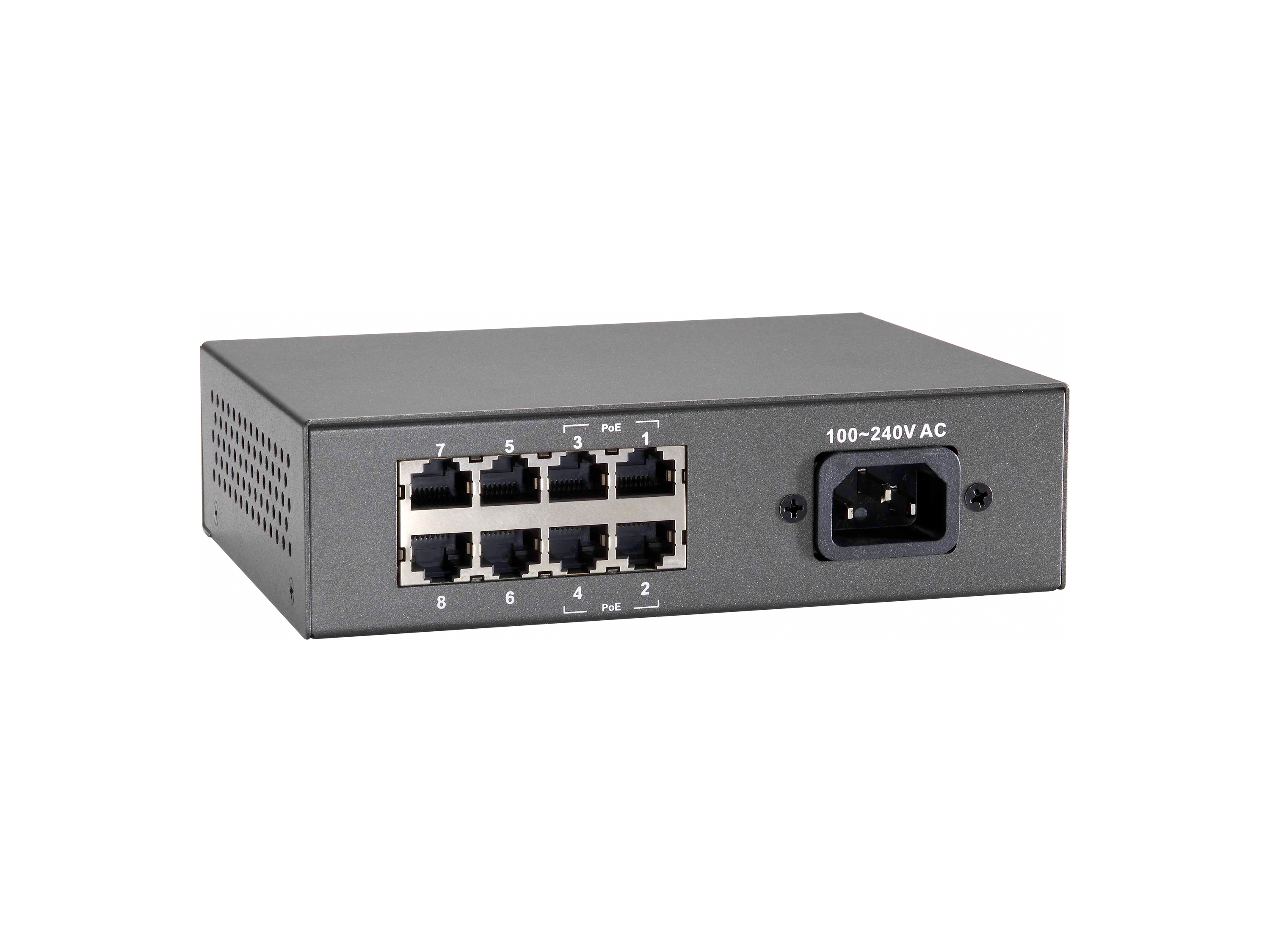

Gswitch FEP-0812 8 PORT 10/100MBPS
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 65W, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting
Specifikationer
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Multicast MAC address table | 1000 entries |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, LAN, PoE, Power |
| Buffer size | 64 KB |
| Plug and Play | Yes |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 65 W |
| Power protection features | Over current, Short circuit |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 122 mm |
| Depth | 44 mm |
| Height | 160 mm |
| Weight | 800 g |
| Cables included | AC |
| Quick start guide | Yes |
| Package type | Box |
| Package width | 145 mm |
| Package depth | 80 mm |
| Package height | 235 mm |
| Package weight | 1.1 kg |
| Certification | FCC, CE, RoHS |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
