Level One

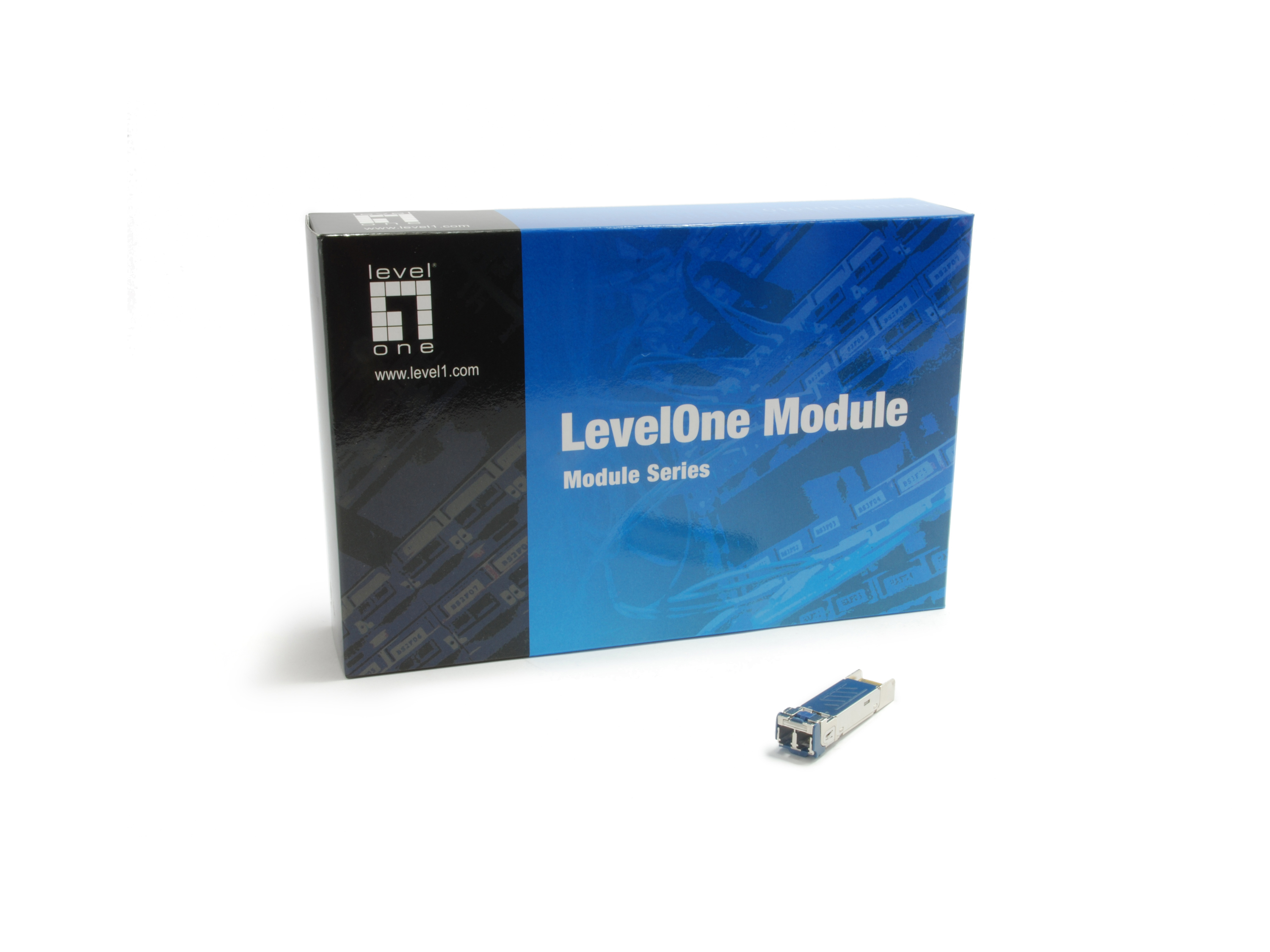

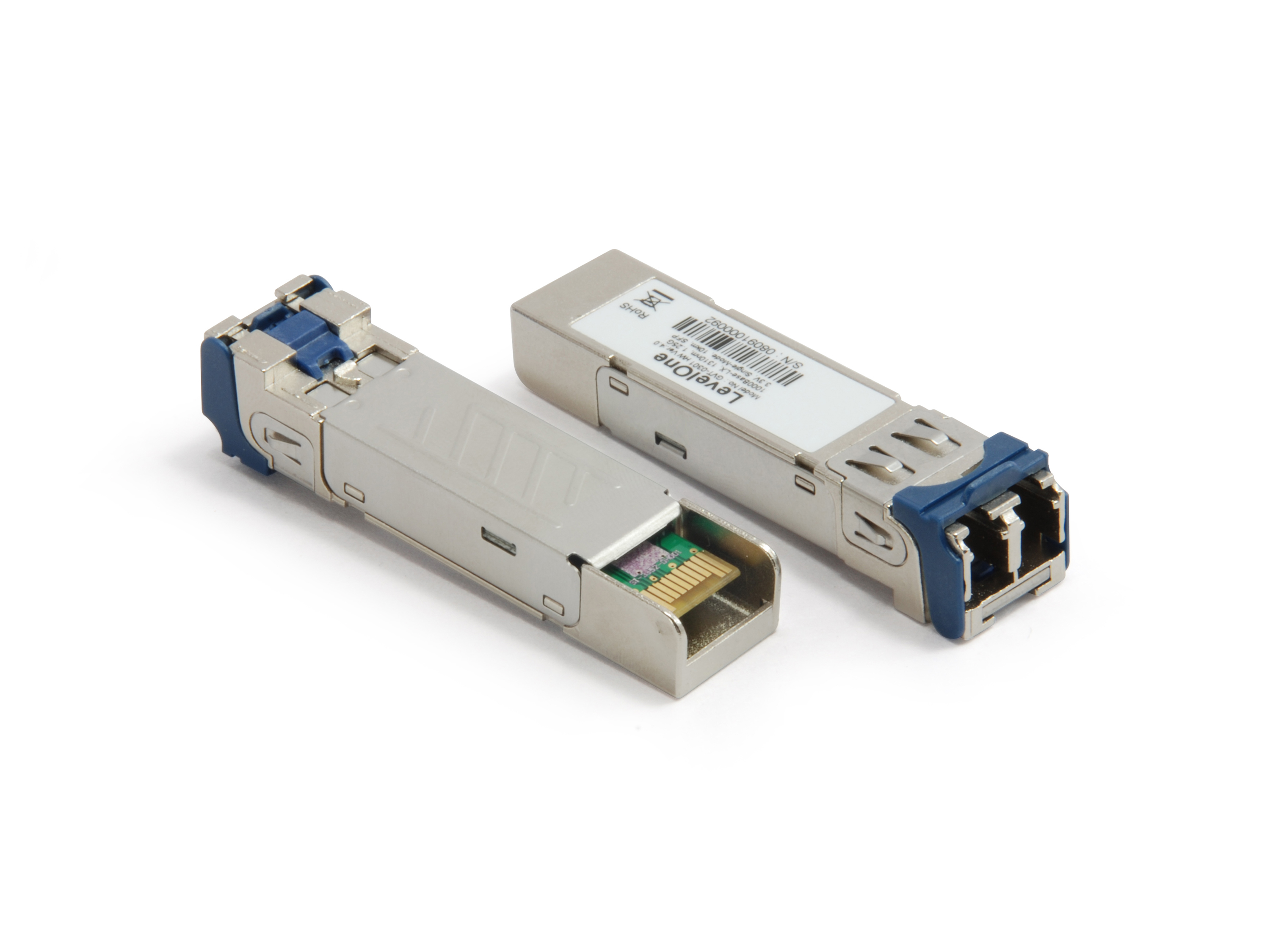

MiniGBIC GVT-0301 SFP LX/LC Fiber SM 10km
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
Specifikationer
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 10.5 dB |
| Networking standards | IEEE 802.3z |
| Hot-Plug support | Yes |
| Compatible products | GSW-2453 GVT-4000 |
| Input voltage | 3.5 V |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Certification | Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11 |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 13.5 mm |
| Depth | 55.5 mm |
| Height | 8.5 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 70 mm |
| Package depth | 50 mm |
| Package height | 130 mm |
| Package weight | 70 g |
| Harmonized System (HS) code | 85369010 |
| Country of origin | Taiwan |
