Level One

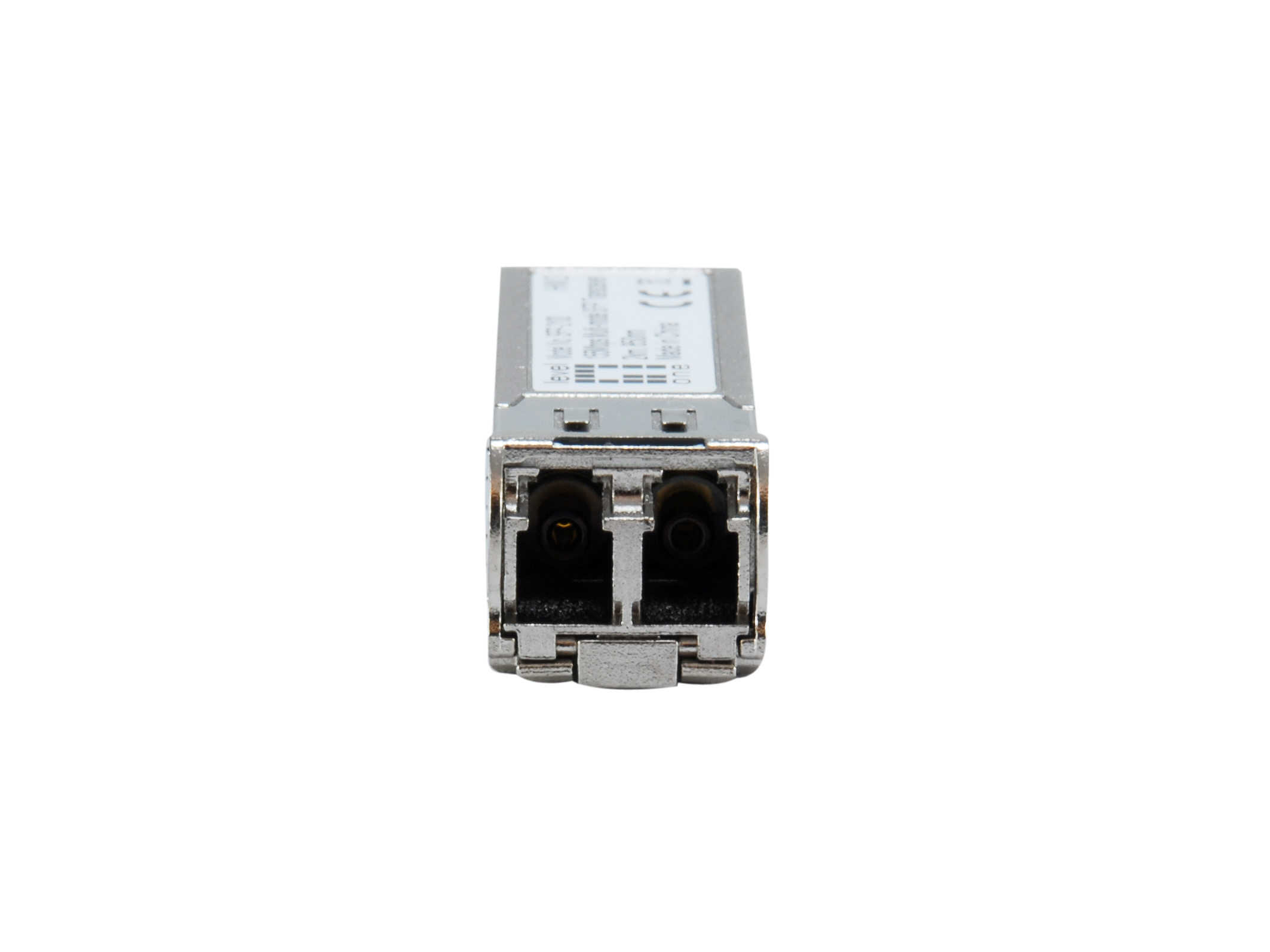

SFP-4200 SFP Infinity (Mini-GBIC)-Transceiver-Modul GigE LC Multi-Mode
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LevelOne 1.25Gbps Multi-mode Industrial SFP Transceiver, 550m, 850nm, -20°C to 85°C, Fiber optic, 1250 Mbit/s, SFP, LC, 550 m, 850 nm
Specifikationer
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -10 dBmW |
| Tx power (max) | 4 dBmW |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Hot-swap | Yes |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 5 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
| Quantity per pack | 1 pc(s) |
| Package width | 65 mm |
| Package depth | 106 mm |
| Package height | 20 mm |
| Package weight | 40 g |
| Harmonized System (HS) code | 85369010 |
