Level One
Switch 48x GE GTP-5271 4x10GSFP+19" 400W 48xPoE+
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |

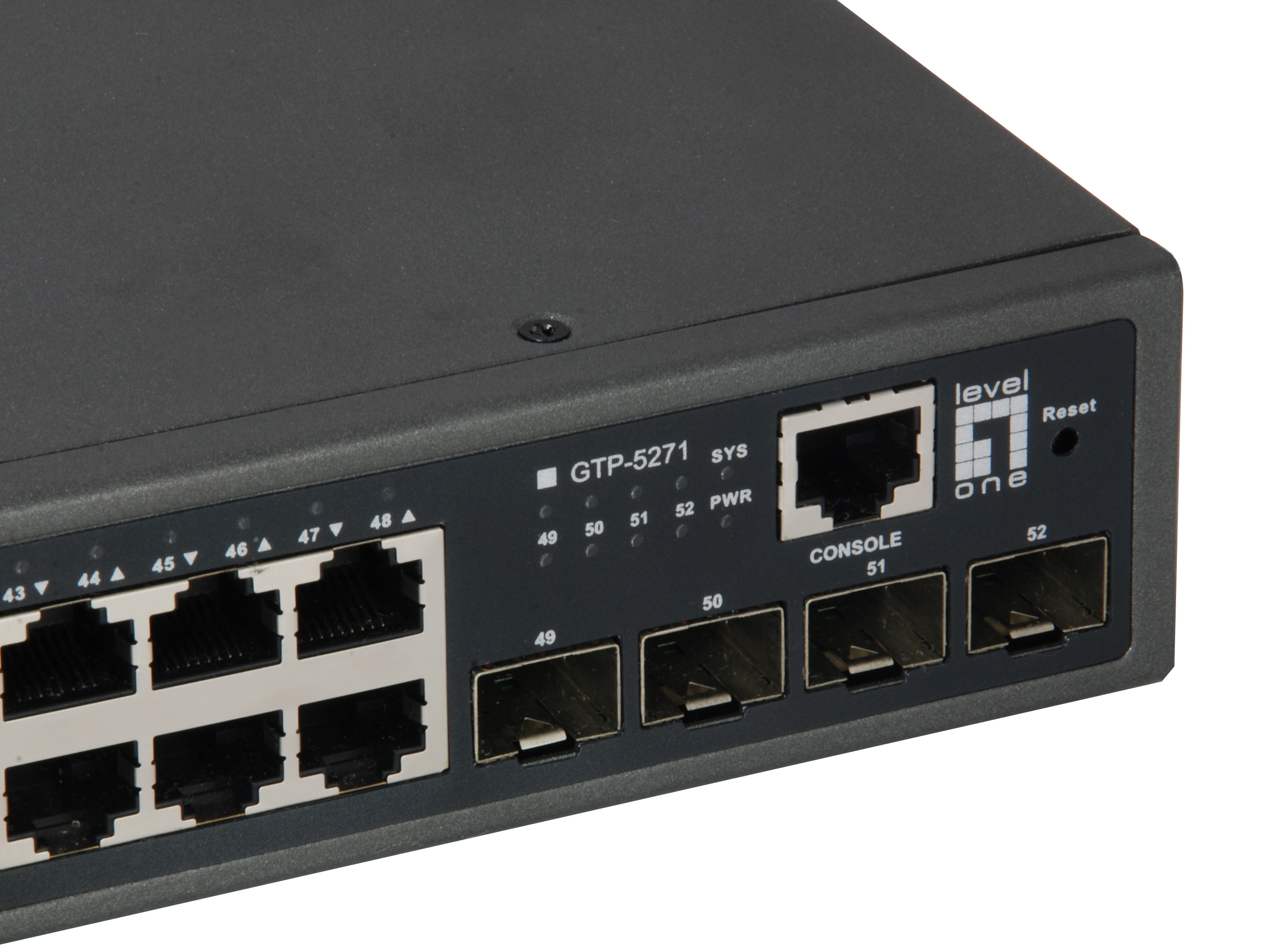

| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |

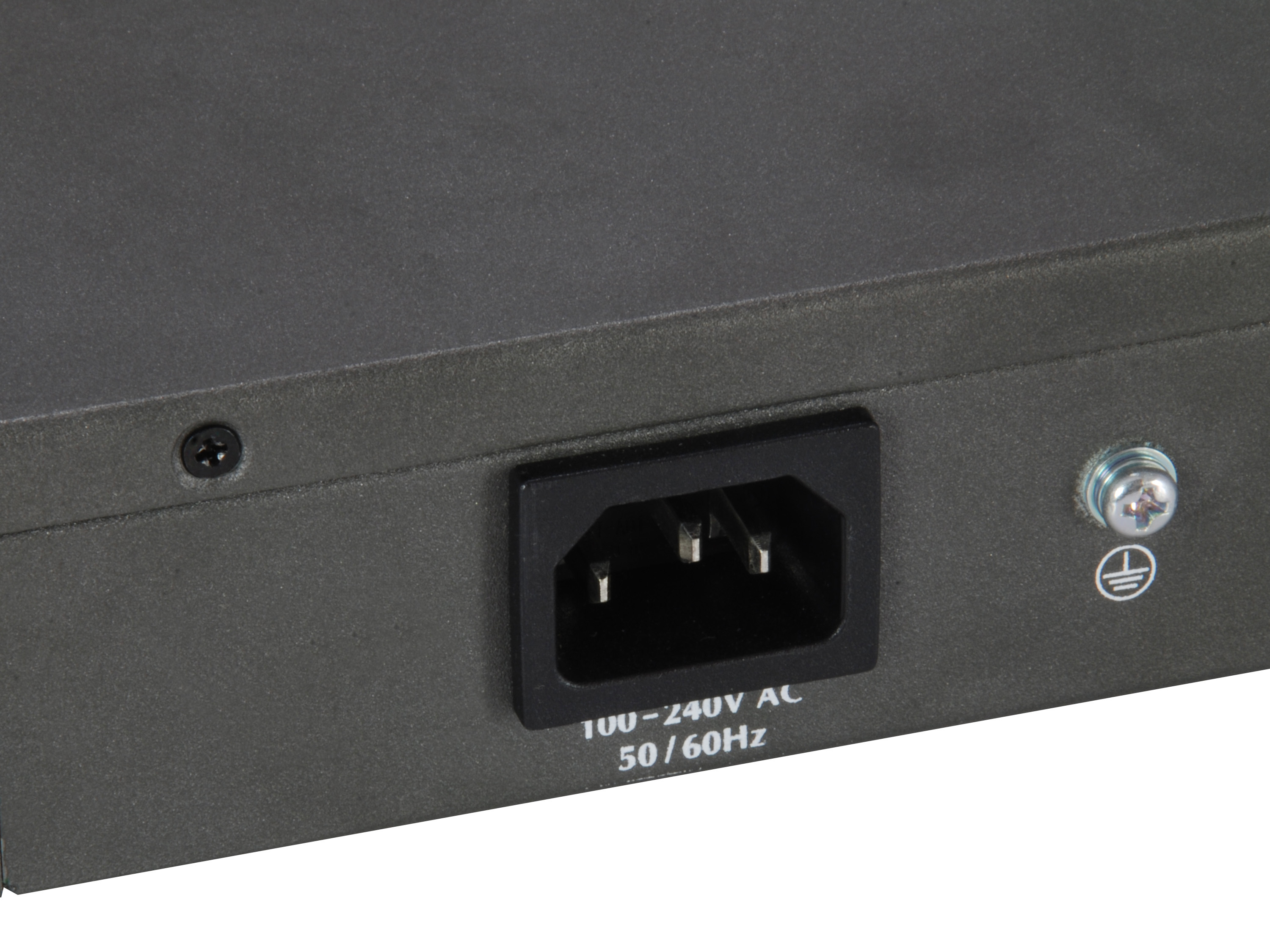

| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Network virtualization technologies | Q-in-Q tunneling |
| QinQ implementation | Selective QinQ |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4096 |
| Forwarding rate | 130.944 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 512 MB |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | SNMPv3 |
| SSH/SSL support | Yes |
| Authentication | Guest VLAN, Web-based authentication |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Authentication type | RADIUS |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv6 Telnet |
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Link, PoE, Power |
| Internal memory | 32 MB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Power consumption (max) | 473.7 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
