Home · Networking · Switch 8x GE GEL-1061 2xGSFP 19"
Level One
Switch 8x GE GEL-1061 2xGSFP 19"
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description

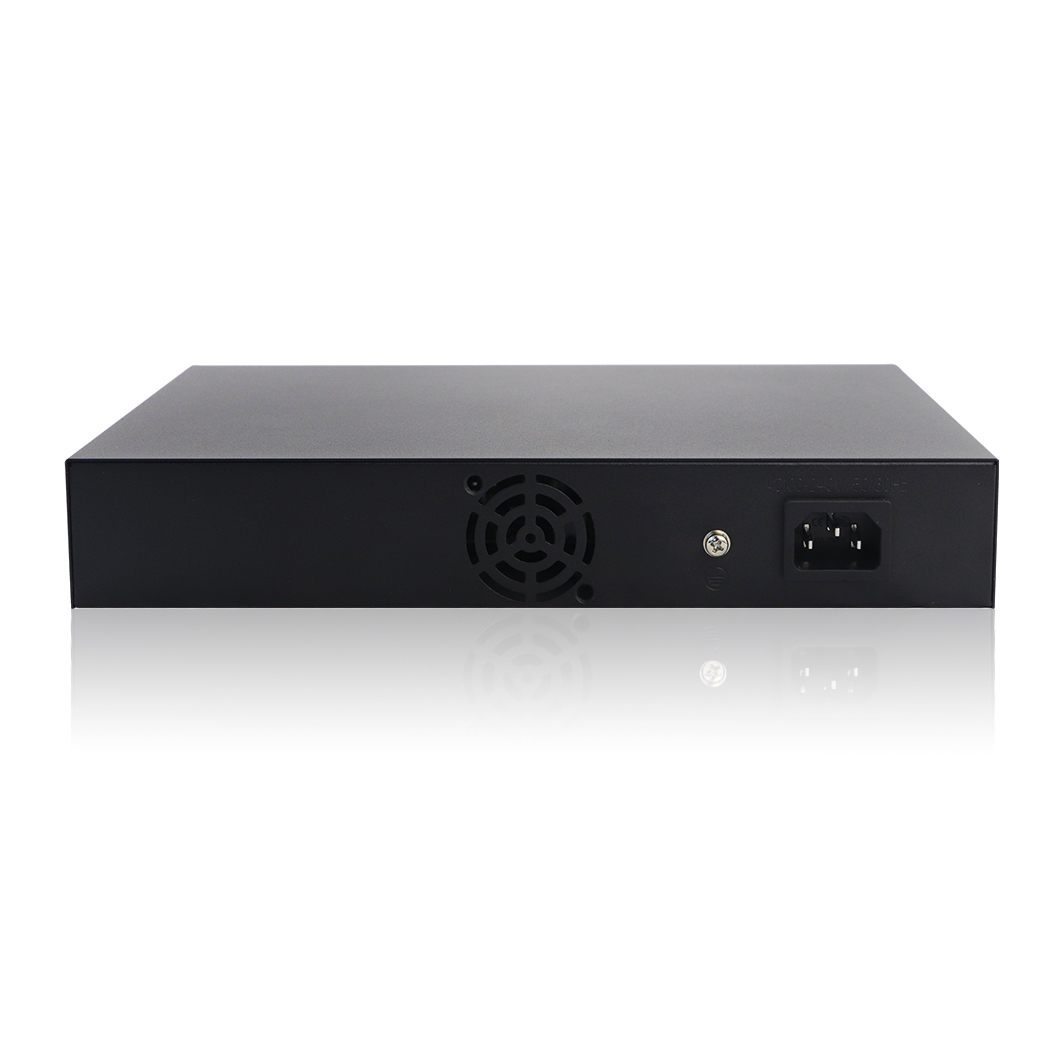

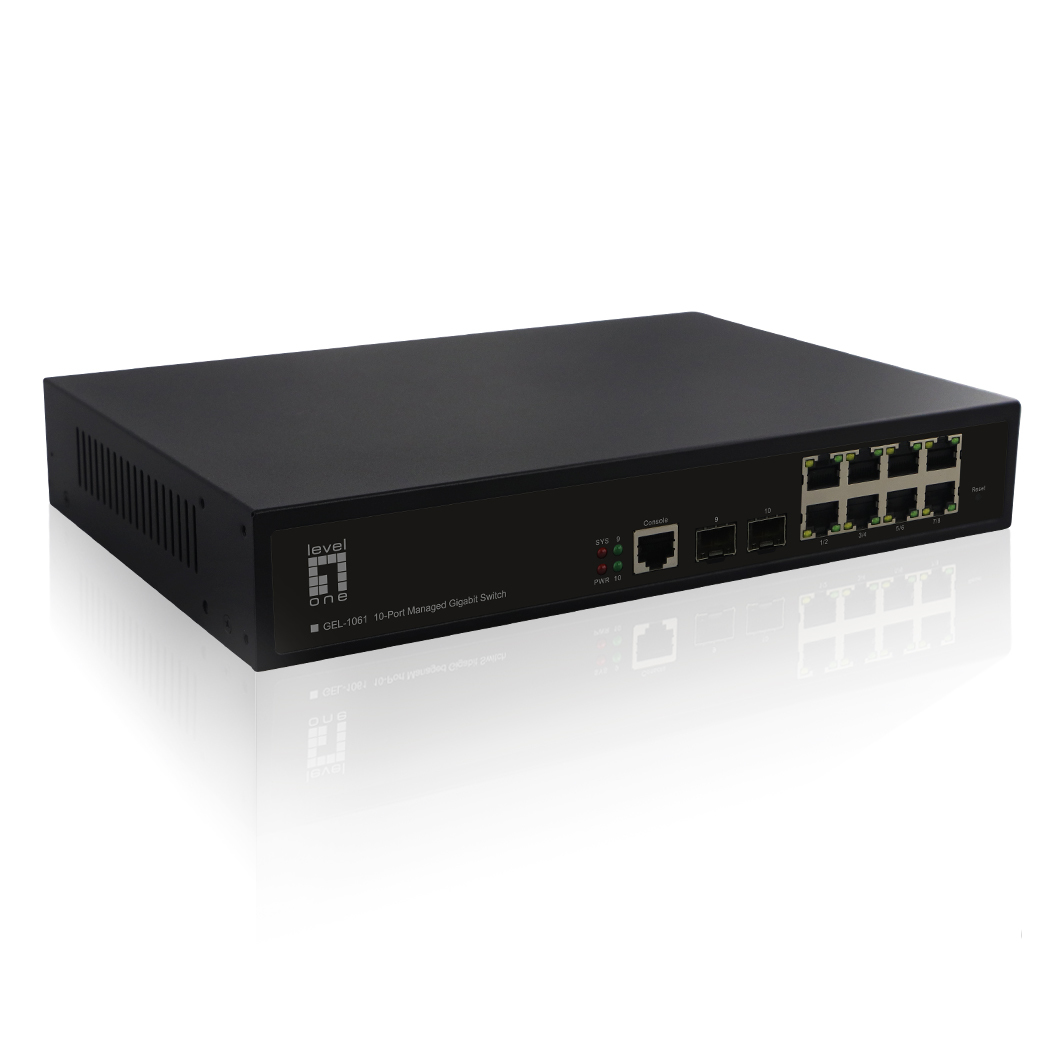

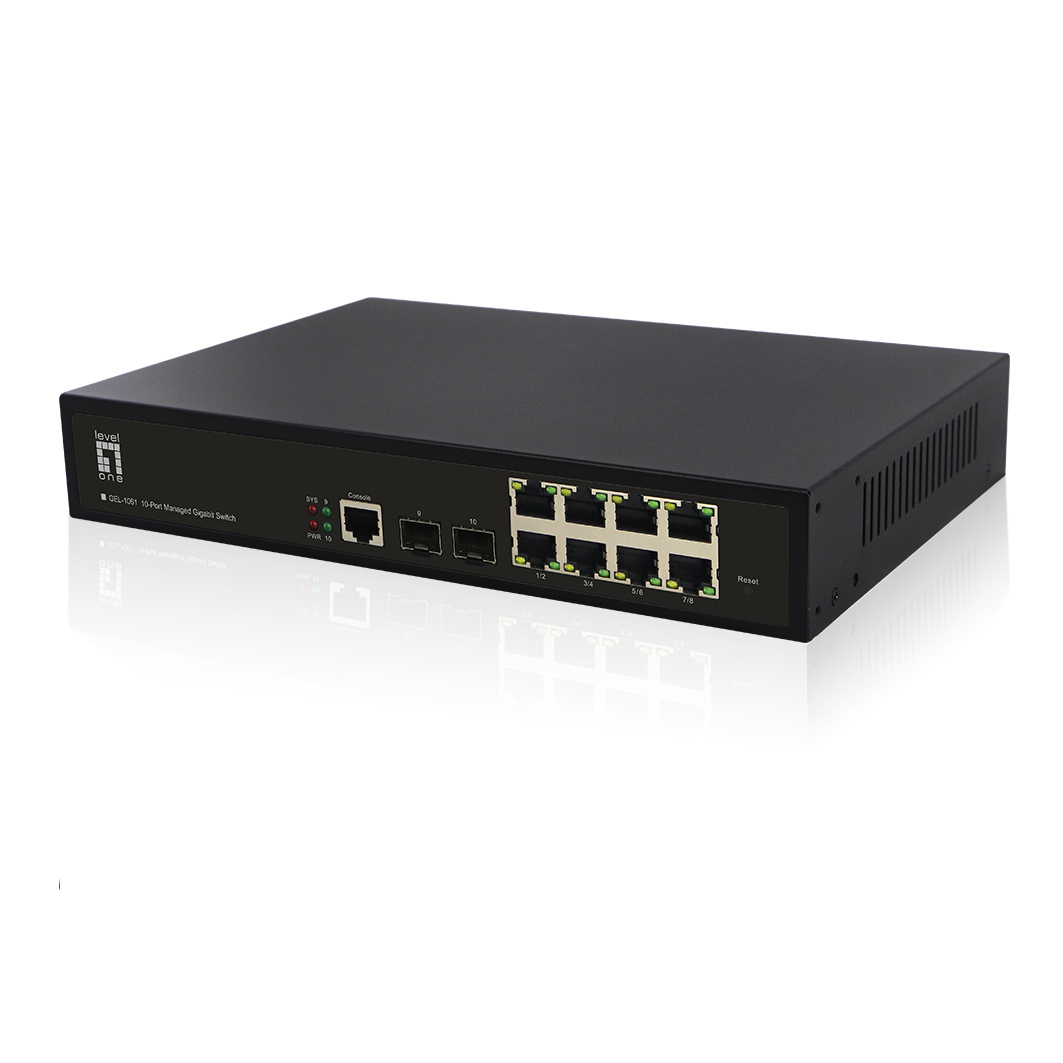

LevelOne KILBY 10-Port L2 Managed Gigabit Switch, 2 x SFP, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
Specifications
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Cable length detection | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1 MB |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Fanless | No |
| Minimum system requirements | CE RoHS |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 270 mm |
| Depth | 181 mm |
| Height | 44 mm |
| Weight | 800 g |
| Cables included | AC |
| Quick start guide | Yes |
| Package type | Box |
| Package width | 345 mm |
| Package depth | 255 mm |
| Package height | 82 mm |
