Level One
Switch 8x10GE/4x10GSFP+ 19" Managed L3
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

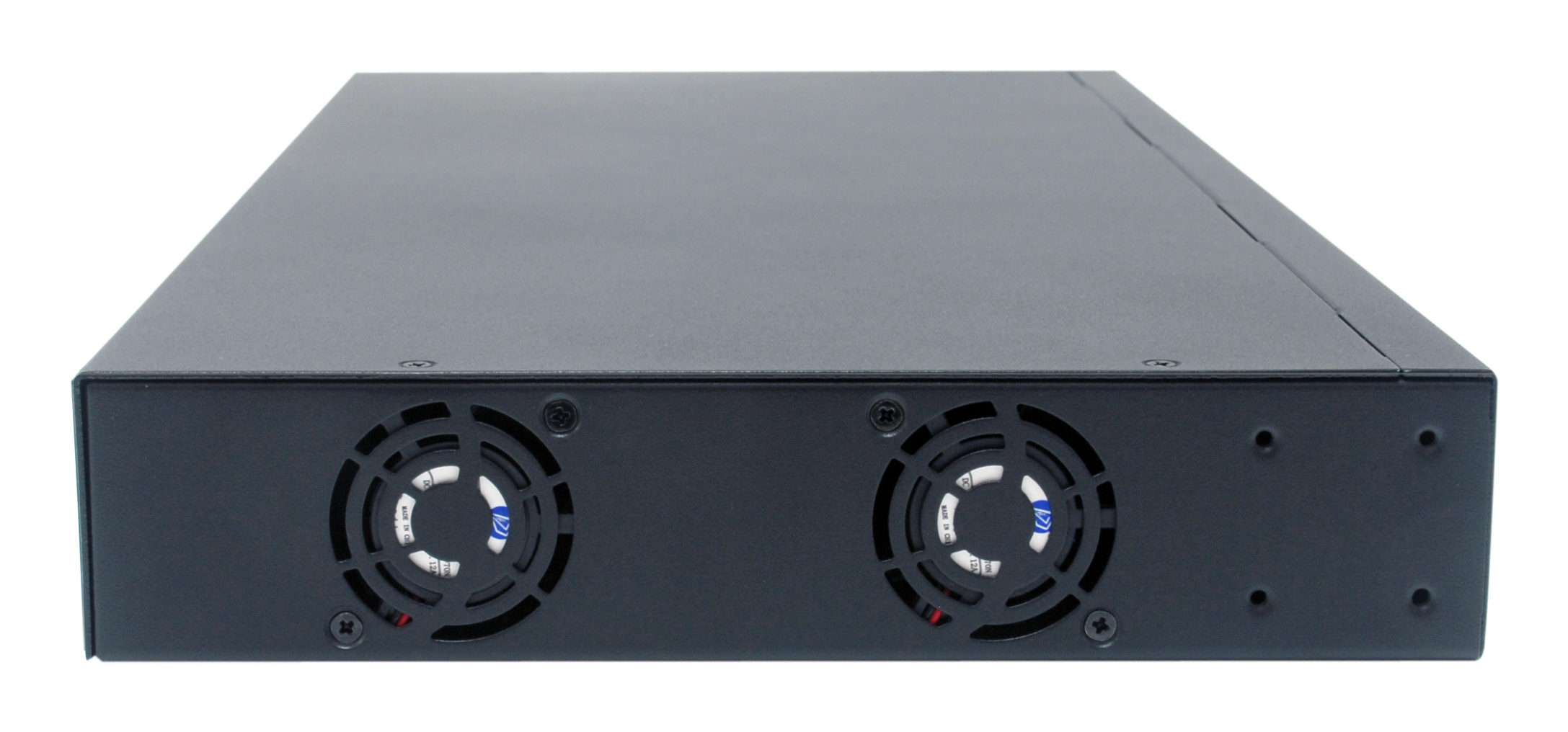

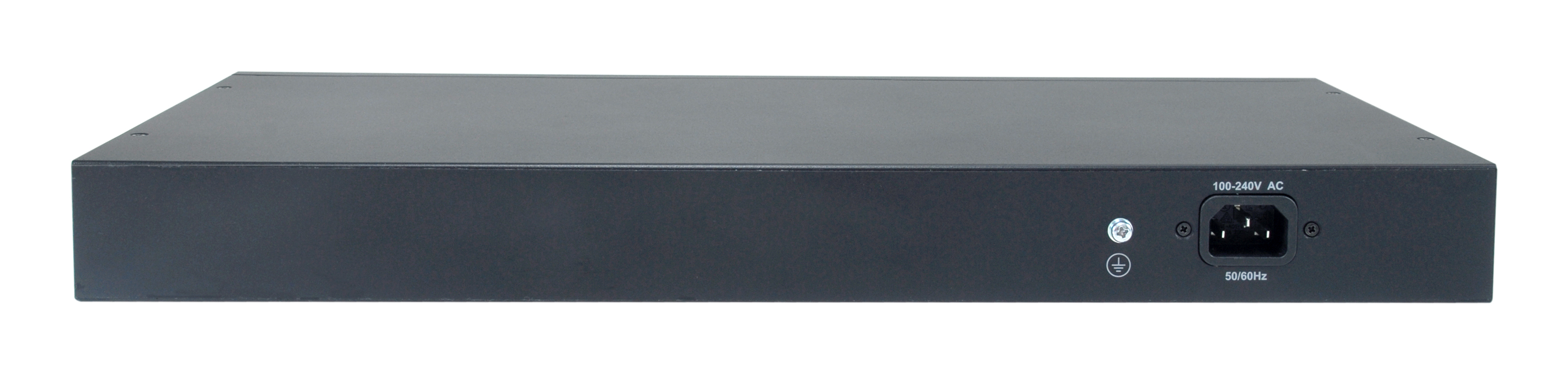

LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Maximum transfer distance (Multi-mode) | 16 m |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.56 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| DHCP features | DHCP relay, DHCP snooping, DHCP Option 82, DHCP Option 43, DHCP Option 60, DHCP Option 61, DHCP Option 67, DHCP client |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| Power consumption (max) | 48.2 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
| Depth | 207 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package type | Box |
| Package width | 495 mm |
| Package depth | 315 mm |
| Package height | 72 mm |
| Package weight | 3.61 kg |
| Shipping (inner) case height | 34.5 cm |
| Shipping (inner) case width | 50.9 cm |
