Level One
Media Konverter RJ45->SC GE SM Smart 1310nm 20km
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

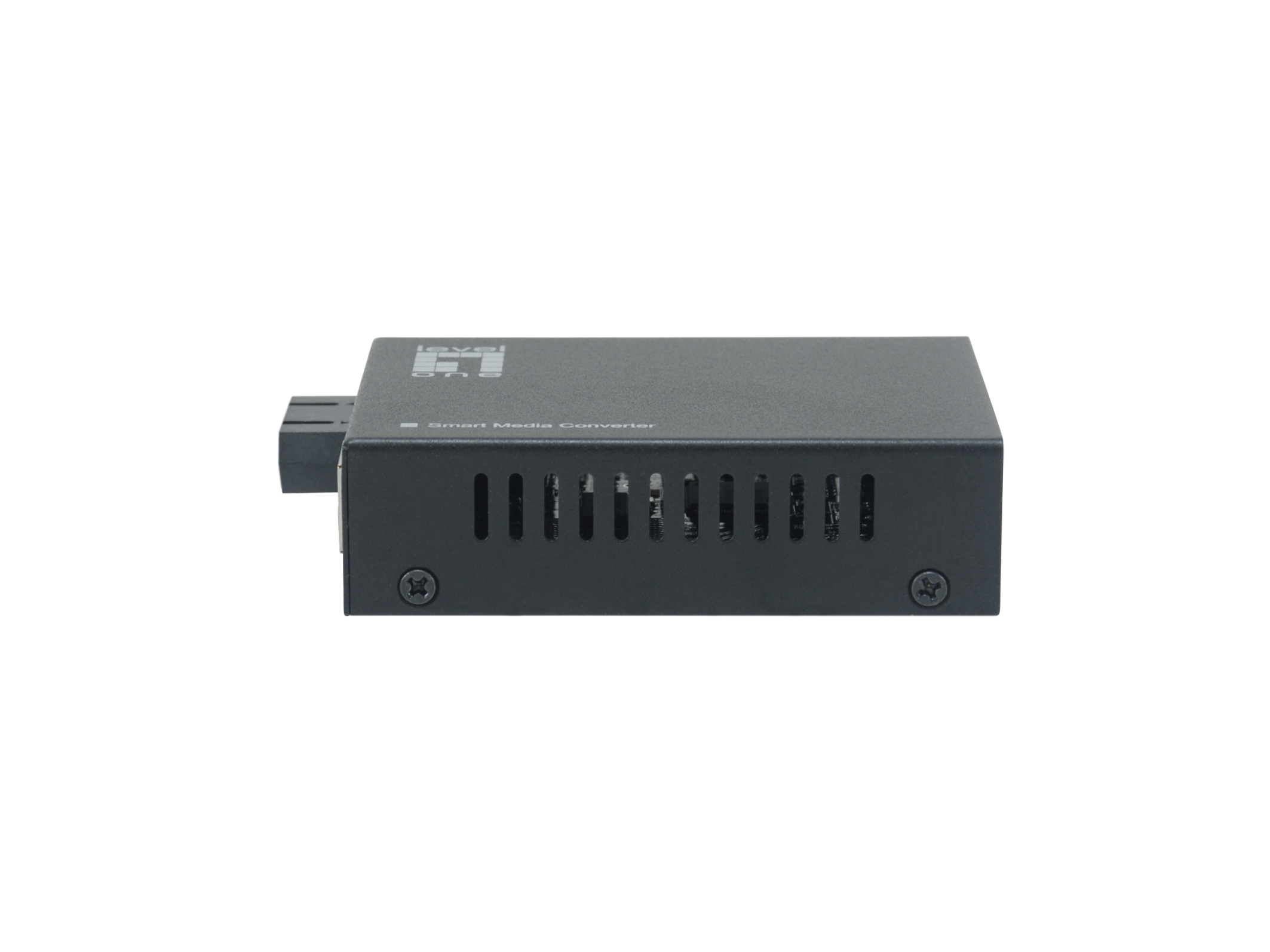

LevelOne Smart Gigabit RJ45-SC Media Converter, Single-Mode Fiber, 1310nm, 20km, Compatible with 19-inch rack-mountable chassis, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half
Specifikationer
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| VLAN support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Quality of Service (QoS) support | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 400000 h |
| Internal | No |
| Web-based management | Yes |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 177 g |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Package width | 118 mm |
| Package depth | 78 mm |
| Package height | 86 mm |
| Package weight | 350 g |
| Package type | Box |
| Country of origin | China |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet gross height | 154.5 cm |
| Customs product code (TARIC) | 8517620000 |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 36 pc(s) |
