Level One

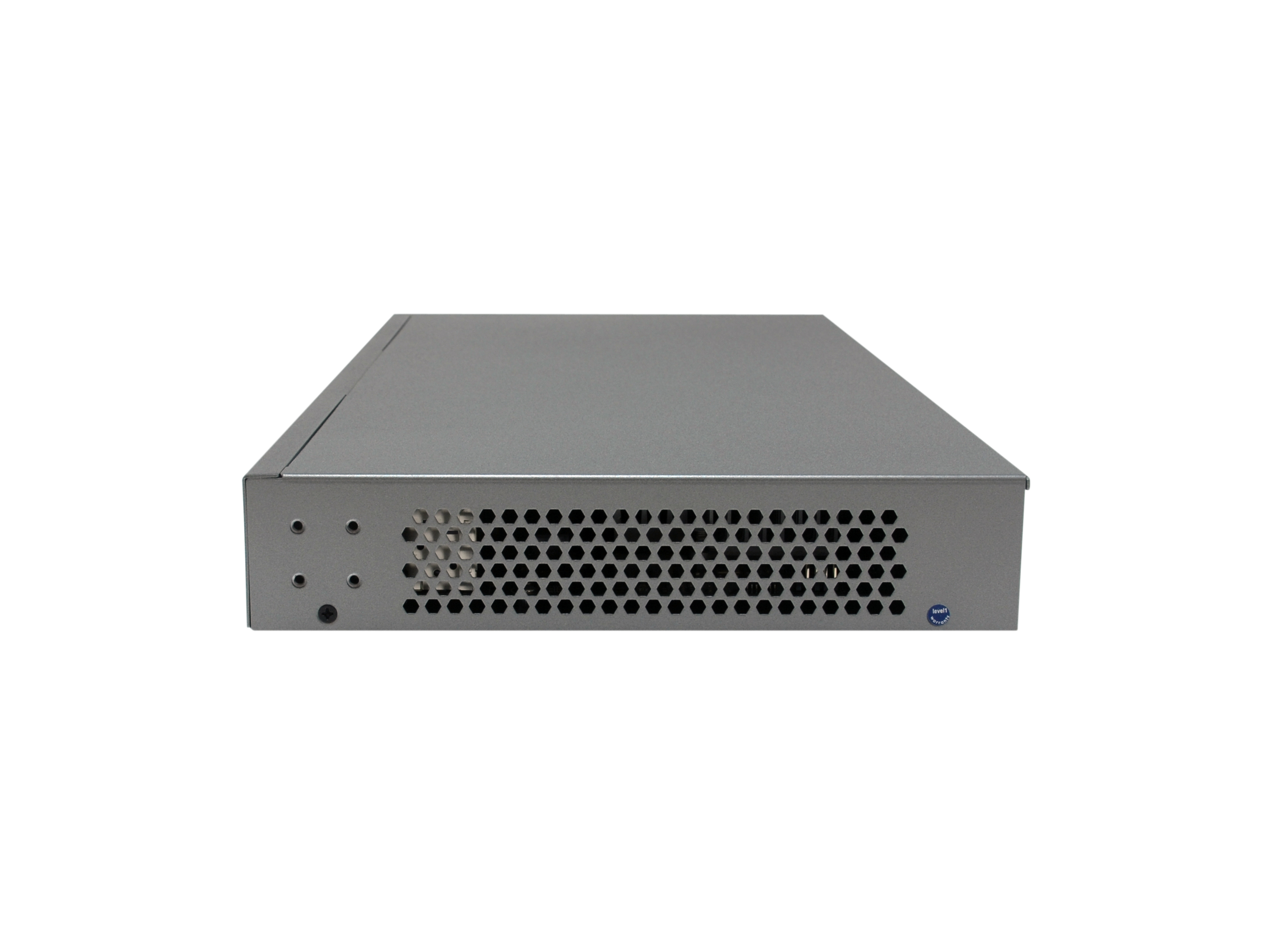

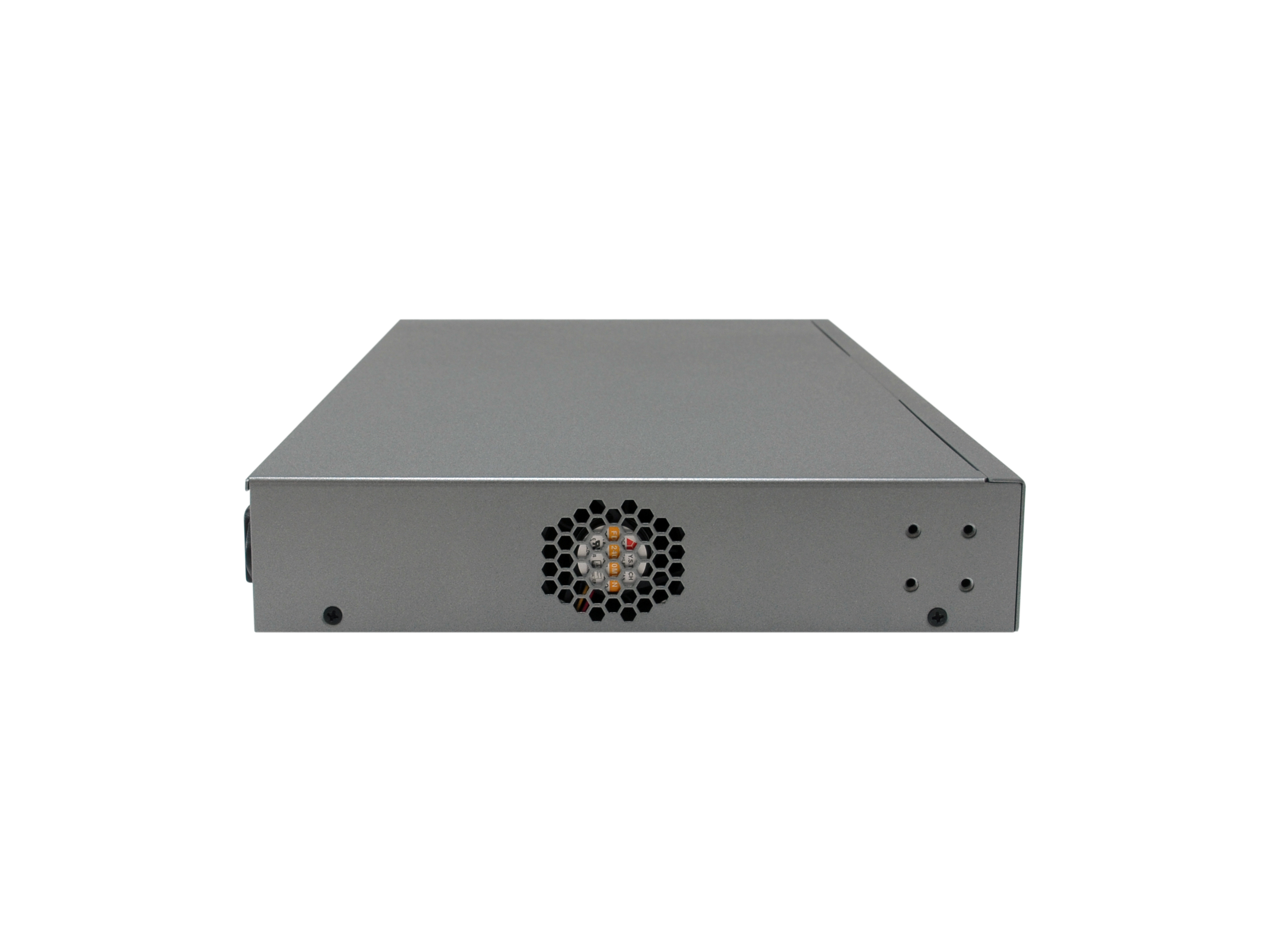

Switch 24xGE/4x10GSFP+ TURING 19" Managed L3
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LevelOne TURING 28-Port L3 Lite Managed Gigabit Switch, 24 x 1G RJ45, 4 x 1G/10G SFP+ Uplinks, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
| Traffic classification | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1v, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN |
| Number of VLANs | 4096 |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.238 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| DHCP features | DHCP server, DHCPv6 server, DHCP relay, DHCP Option 82, DHCP client, DHCPv6 client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS, TACACS+ |
| Multicast support | Yes |
| Multicast MAC address table | 1024 entries |
| Multicast Listener Discovery (MLD) snooping | Y |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
| Rack mounting | Yes |
| Product colour | Grey |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| sFlow | Yes |
| Fanless | No |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 30 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 2.67 kg |
| Cables included | AC, LAN (RJ-45) to DB9 |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
