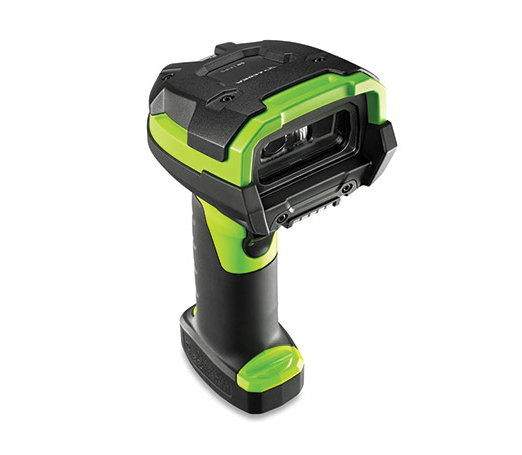

Zebra Symbol LI3608-SR - Barcode-Scanner - Handgerät
Réf. · EAN
Prix à la connexion
prix selon votre accord
En stock
Livraison 1–2 jours ouvrés · commande avant 15h00
Description
Zebra LI3608, Handheld bar code reader, 1D, Codabar, Code 11, Code 128, Code 25 (non-IR 2 of 5), Code 39, Code 93, GS1-128 (UCC/EAN-128), U.P.C., -65 - 65°, -65 - 65°, -45 - 45°
Spécifications
| Type | Handheld bar code reader |
| Optical sensor resolution | 1500 pixels |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 25 (non-IR 2 of 5), Code 39, Code 93, GS1-128 (UCC/EAN-128), U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, Bluetooth |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| PC connection | RS-232 |
| International Protection (IP) code | IP65 |
| Protection features | Shock resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED), EN 55022: 2010/AC: 2011 (Class B), EN 55024: 2010, EN 61000-6-2: 2005/AC:2005, EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B), EN 61000-3-3: 2013, EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 5, Class B |
| Power source type | Battery |
| Input voltage | 4.5 - 5.5 V |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 287 g |
| Cables included | USB |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84716070 |
