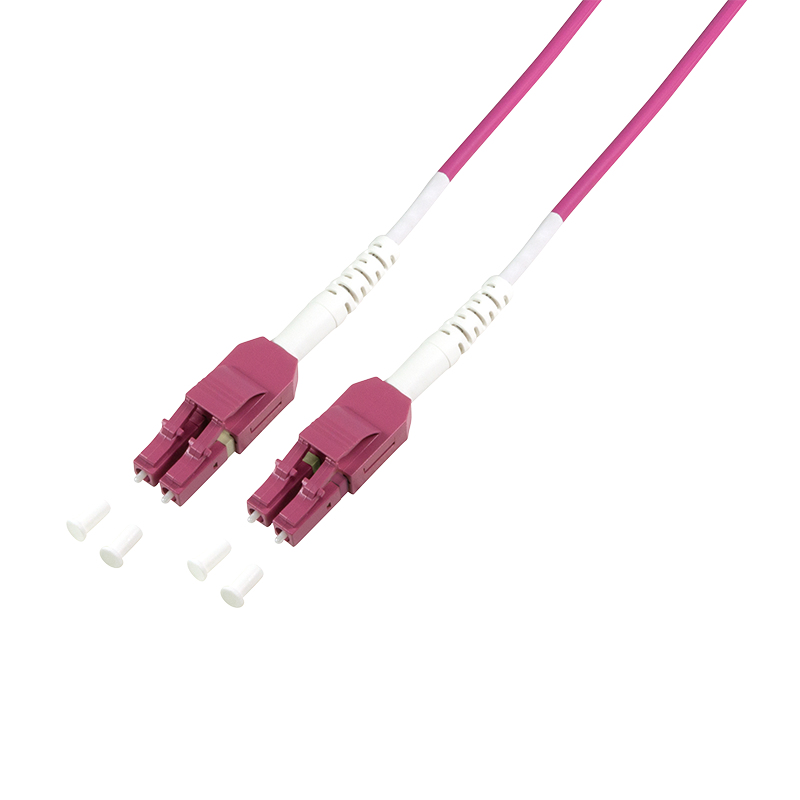

Logilink Fiber uniboot patch cord OM4 LCD-LCD 2,0m
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
LogiLink FP4UB02, 2 m, OM4, LC, LC
Specifikationer
| Cable length | 2 m |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | UPC |
| Product colour | Violet |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Data transfer rate | 10 Gbit/s |
| Insertion loss | 0.25 dB |
| Return loss | 25 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector material | Ceramic |
| Plug and Play | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Certification | IEC61300-3-4, IEC61300-3-6, IEC61300-2-2, IEC60794-2, IEC/PAS 61300-3-35, GR-326-CORE |
| Operating temperature (T-T) | -20 - 60 °C |
| Cable diameter | 3 mm |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 200 mm |
| Package weight | 1.95 kg |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
