AXIS T91R61 - monteringspakke for netv
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

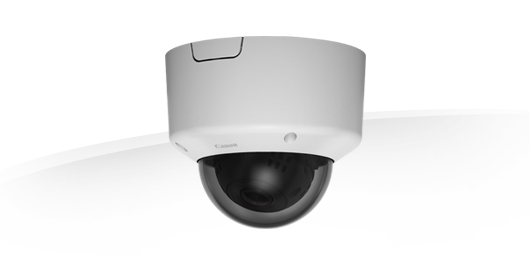

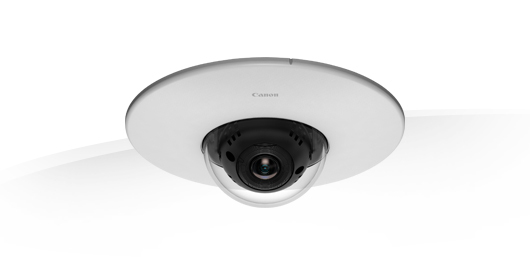

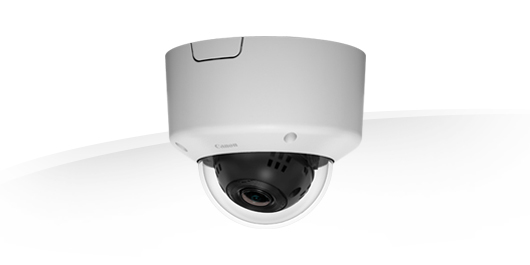

Canon VB-M641V, IP security camera, Indoor, Wired, Canon DIGIC DV III, Auto, Manual, Shutter priority AE, White
Specifikationer
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Processor model | Canon DIGIC DV III |
| Light exposure modes | Auto, Manual, Shutter priority AE |
| Form factor | Dome |
| Product colour | White |
| Protection features | Vandal proof |
| Minimum illumination | 0.001 lx |
| Angle of rotation | 350° |
| Lens viewing angle, horizontal | 111.5° |
| Tilt angle range | -75 - 75° |
| Tilt speed | 20.7 °/sec |
| Pan range | -175 - 175° |
| Pan speed | 20.1 °/sec |
| White balance | Mercury lamp, Auto, Fluorescent, Halogen, Manual |
| Camera shutter speed | 0.0000625 - 1 s |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Optical zoom | 2.4x |
| Digital zoom | 4x |
| Focal length range | 2.55 - 6.12 mm |
| Focus adjustment | 1.2 - 1.8 |
| Night vision | No |
| Maximum resolution | 1280 x 960 pixels |
| Total megapixels | 1.3 MP |
| Video formats supported | H.264 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 640 x 360, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA) |
| Frame rate | 30 fps |
| Full HD | No |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio detection | Yes |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS |
| Web-based management | Yes |
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power consumption (max) | 9.8 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Yes |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 129 mm |
| Weight | 910 g |
