Cougar

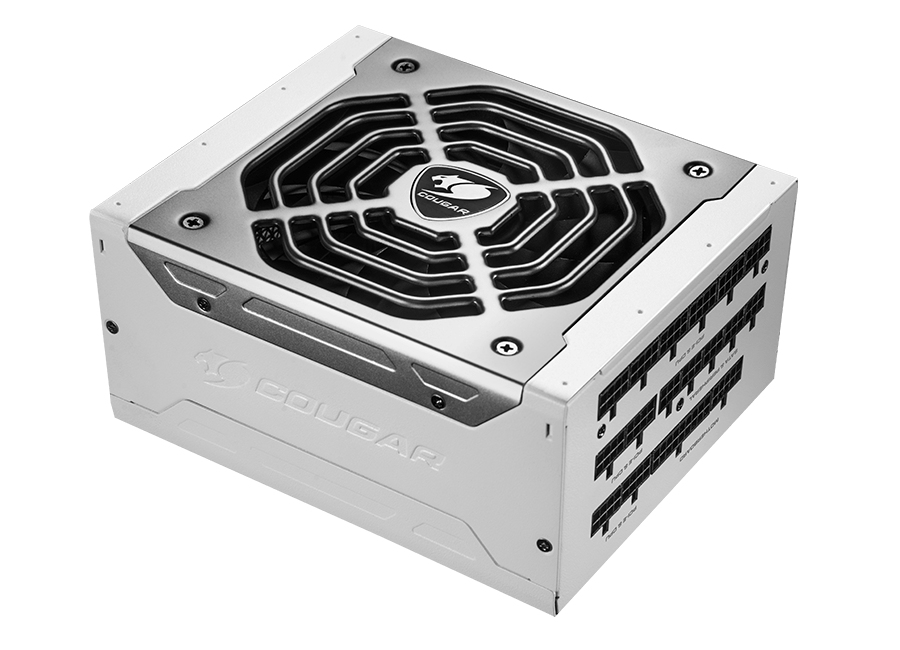

1200W COUGAR Netzteil Polar 1200W ATX3.1 / 80 Plus Plat./Modular
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
COUGAR Polar 1200W Power Supply ATX3.1 / 80 Plus Platinum / Modular, 1200 W, 100 - 240 V, 47 - 63 Hz, 15 - 7 A, 100 W, 1200 W
Specifikationer
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 9 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Silver |
| Fan diameter | 13.5 cm |
| Cables included | CPU, PATA, PCIe, SATA |
| Width | 180 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.09 kg |
| Package width | 331 mm |
| Package depth | 229 mm |
| Package height | 107 mm |
| Package weight | 3.59 kg |
