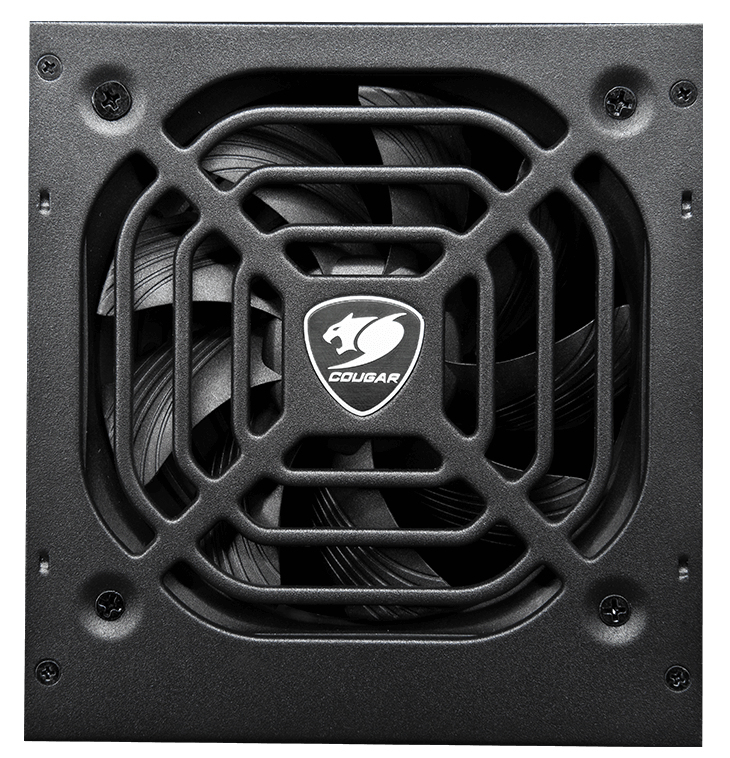

600W COUGAR Netzteil STC ATX / 80 Plus 230V EU
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU, 600 W, 200 - 240 V, 50 Hz, 5 A, Active, 130 W
Spezifikationen
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 588 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 49 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | CE, EAC, RoHS |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.52 kg |
| Package width | 187 mm |
| Package depth | 158 mm |
| Package height | 165 mm |
| Package weight | 1.8 kg |
| Country of origin | China |
| Commodity Classification Automated Tracking System (CCATS) | 8504401300 |
