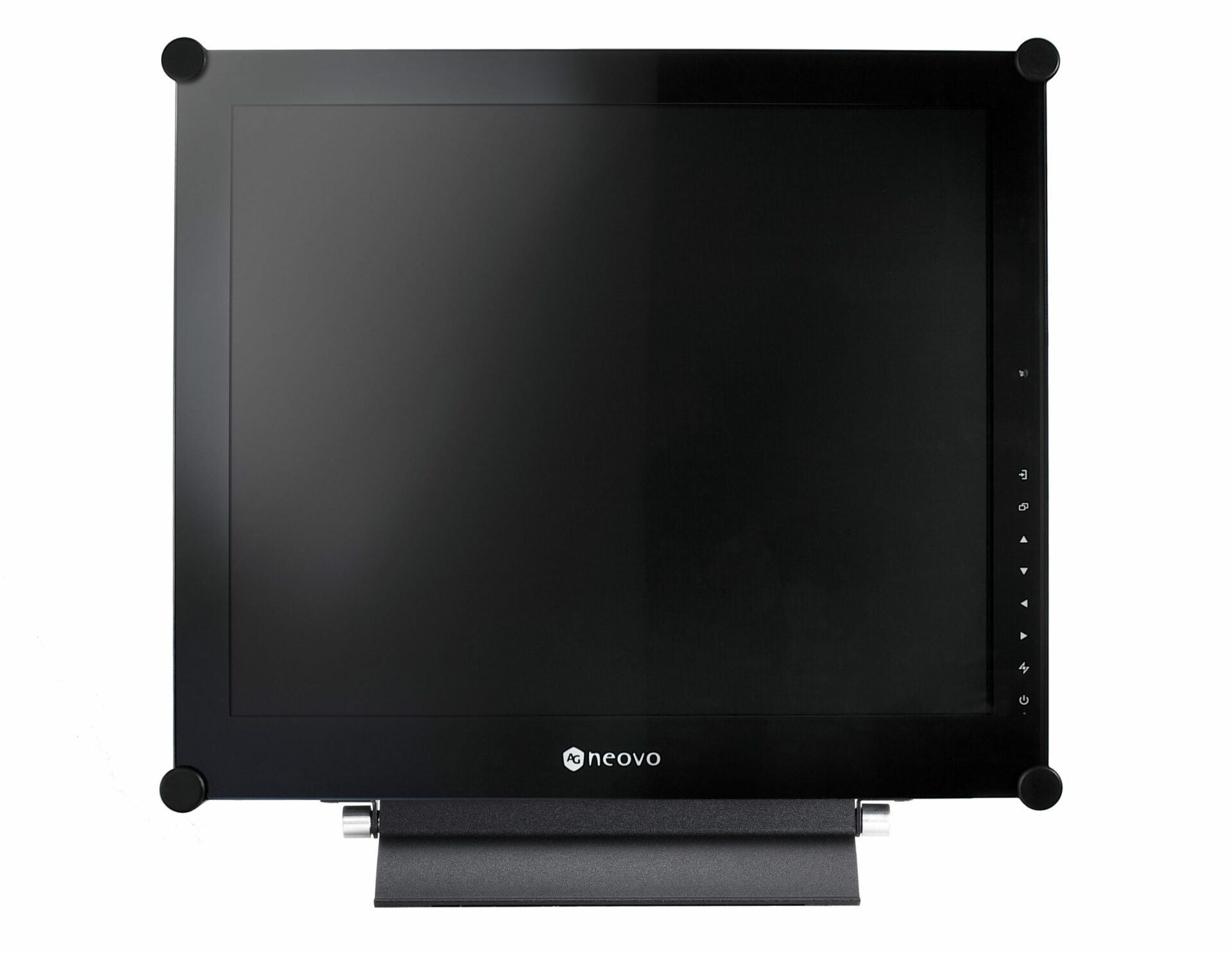

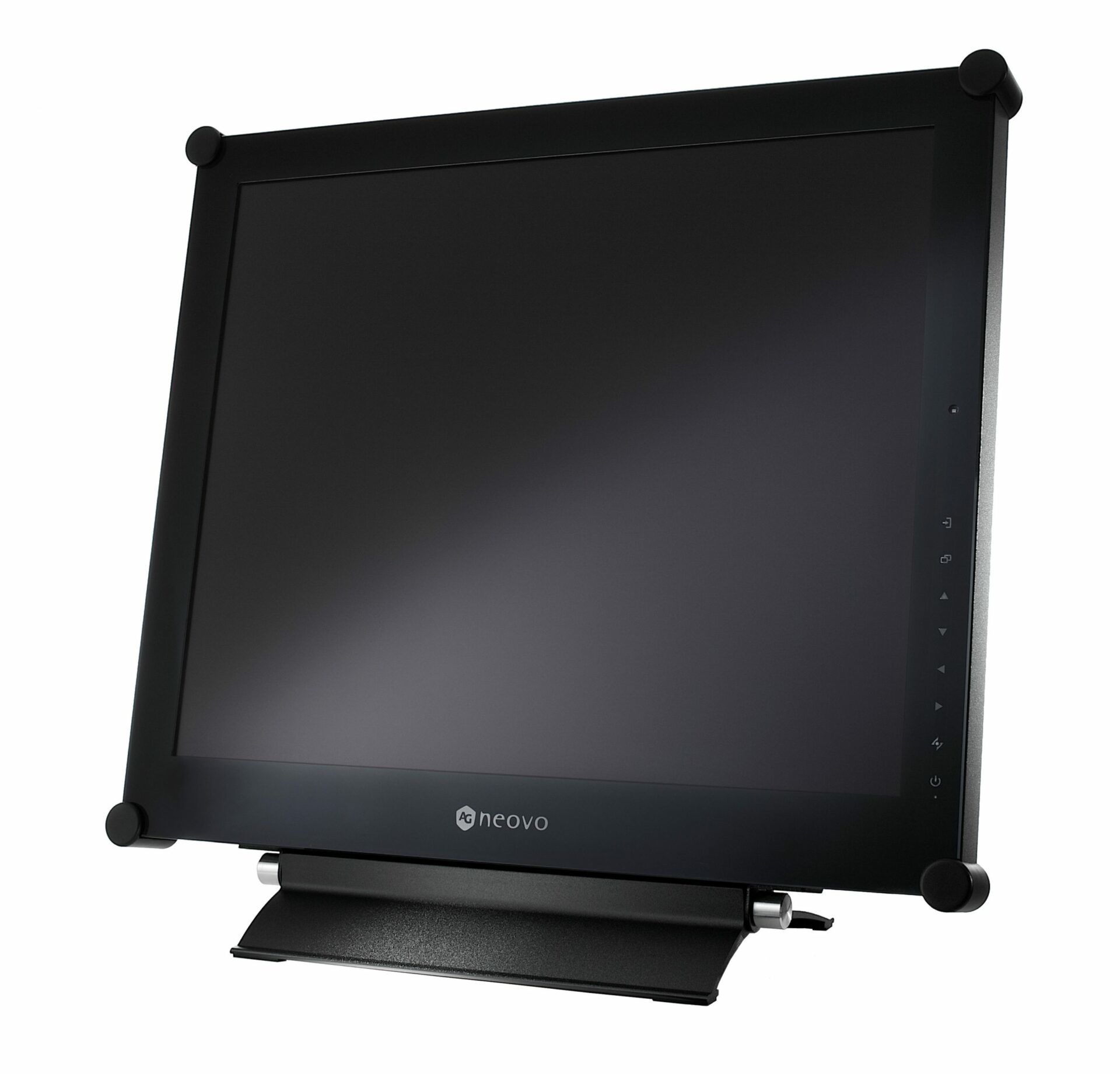

Neovo SX-19G - SX Series - LCD-skærm
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
AG Neovo SX-19G, CCTV monitor, Freestanding/Wall-mounted, Black, 20°, 0 - 20°, CB, CE, FCC, WEEE, REACH, BSMI
Specifikationer
| Product type | CCTV monitor |
| Mounting type | Freestanding/Wall-mounted |
| Product colour | Black |
| Tilt adjustment | Yes |
| Tilt angle | 20° |
| Tilt angle range | 0 - 20° |
| LED indicators | Yes |
| Certification | CB, CE, FCC, WEEE, REACH, BSMI |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display type | LCD |
| Panel type | TN |
| Display brightness | 250 cd/m² |
| Backlight type | LED |
| Display aspect ratio | 4:3 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Contrast ratio (typical) | 20000000:1 |
| Response time | 3 ms |
| RGB colour space | NTSC |
| NTSC coverage (typical) | 72% |
| Anti-glare screen | Yes |
| Glass thickness | 3 mm |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
| Power source type | DC |
| Power supply type | External |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.75 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Weight | 6.1 kg |
| Height | 383.9 mm |
| Depth | 64.5 mm |
| Width | 445.4 mm |
