ASUSTeK COMPUTER

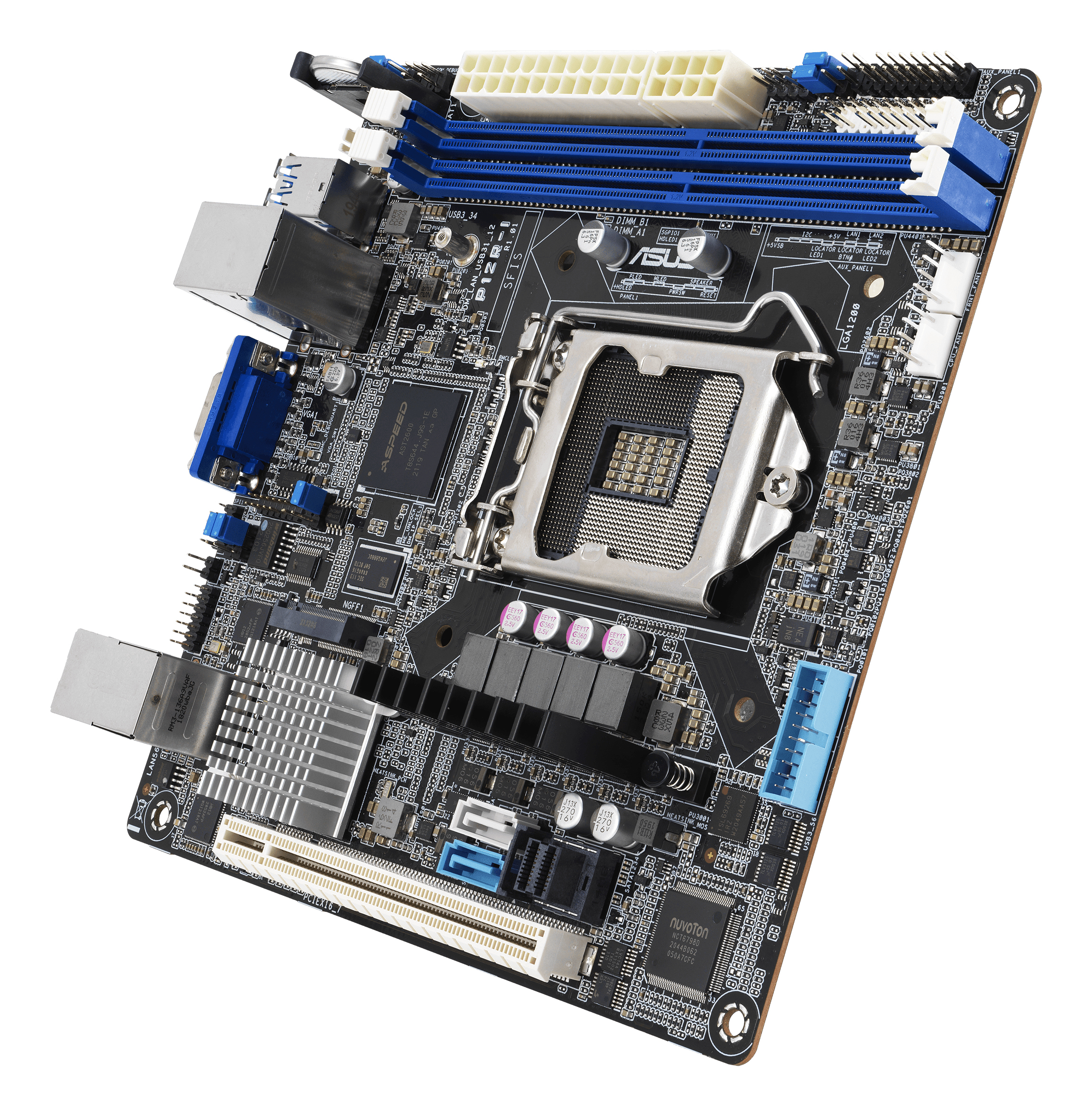

Server ASUS P12R-I/ASMB10
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
ASUS P12R-I/ASMB10, Intel, LGA 1200 (Socket H5), Intel® Pentium®, Intel Xeon E, DDR4-SDRAM, 64 GB, DIMM
Specifikationer
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Number of SAS ports | 2 |
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Motherboard chipset | Intel C252 |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Harmonized System (HS) code | 84733020 |
| Package width | 311 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.2 kg |
| Width | 170 mm |
| Depth | 170 mm |
| Weight | 500 g |
