Startseite · Zubehör · QNAP QSW-3216R-8S8T Unmanaged Switch 16 port of 10GbE port speed 8 port SFP+ 8 port 10gbE RJ45 half-rackmount design
QNAP SYSTEMS

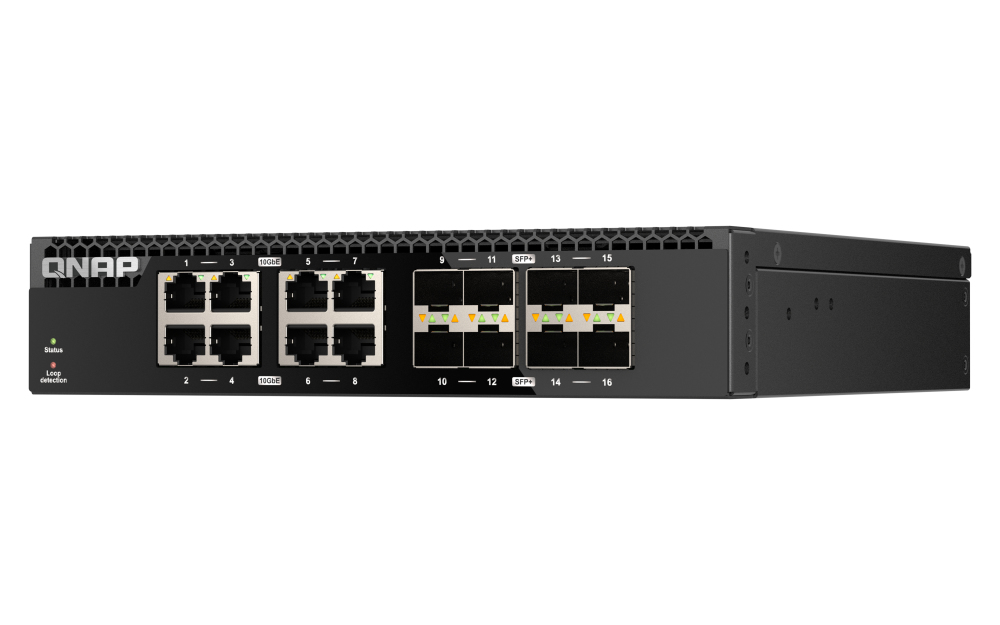

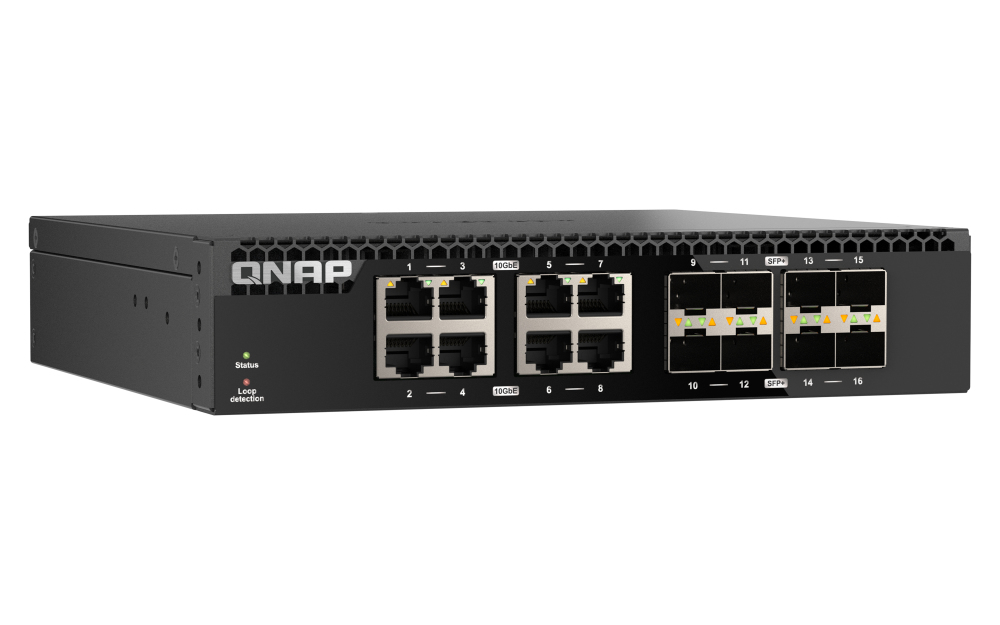

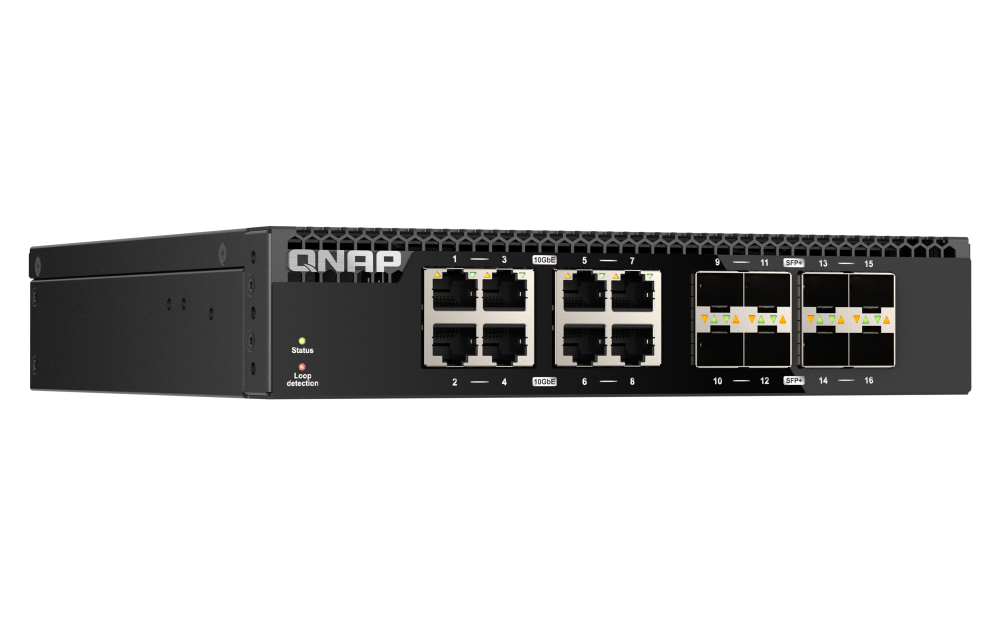

QNAP QSW-3216R-8S8T Unmanaged Switch 16 port of 10GbE port speed 8 port SFP+ 8 port 10gbE RJ45 half-rackmount design
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
QNAP QSW-3216R-8S8T, Unmanaged, L2, 10G Ethernet (100/1000/10000), Rack mounting
Spezifikationen
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 8 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| VLAN support | Yes |
| Switching capacity | 320 Gbit/s |
| Throughput | 160 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Loop, Status |
| Number of fans | 2 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 80 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 207 mm |
| Depth | 197 mm |
| Height | 43.3 mm |
| Weight | 1.52 kg |
| Manual | Yes |
| Package width | 324 mm |
| Package depth | 282 mm |
| Package height | 88 mm |
| Package weight | 2.23 kg |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
