MSI

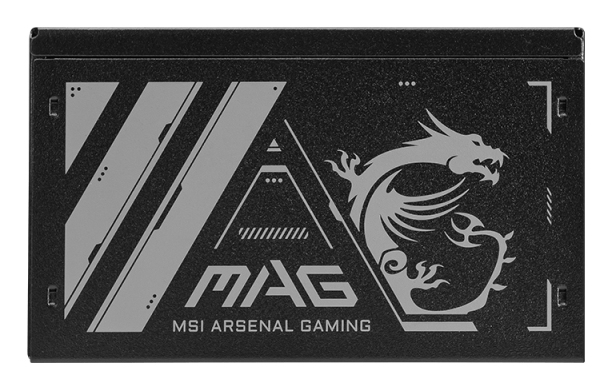

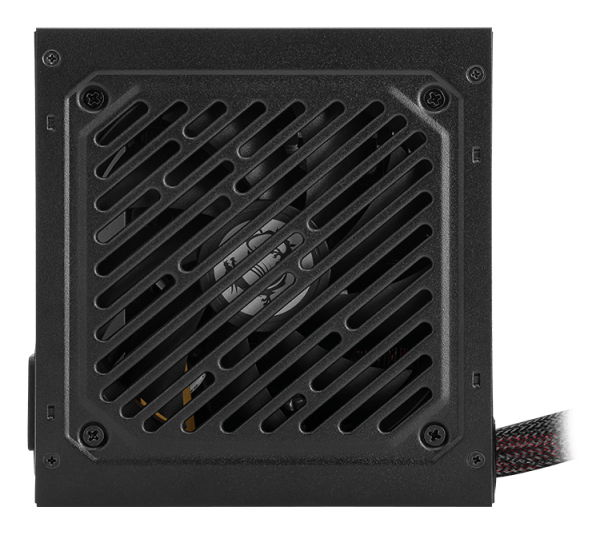

MSI Mag A500N-H ATX power supply - 500W SI version
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
MSI MAG A500N-H, 500 W, 200 - 240 V, 50/60 Hz, Active, 105 W, 500 W
Specifikationer
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 500 W |
| Combined power (+5V) | 456 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan speed | 500 - 1800 RPM |
| Illumination | No |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
