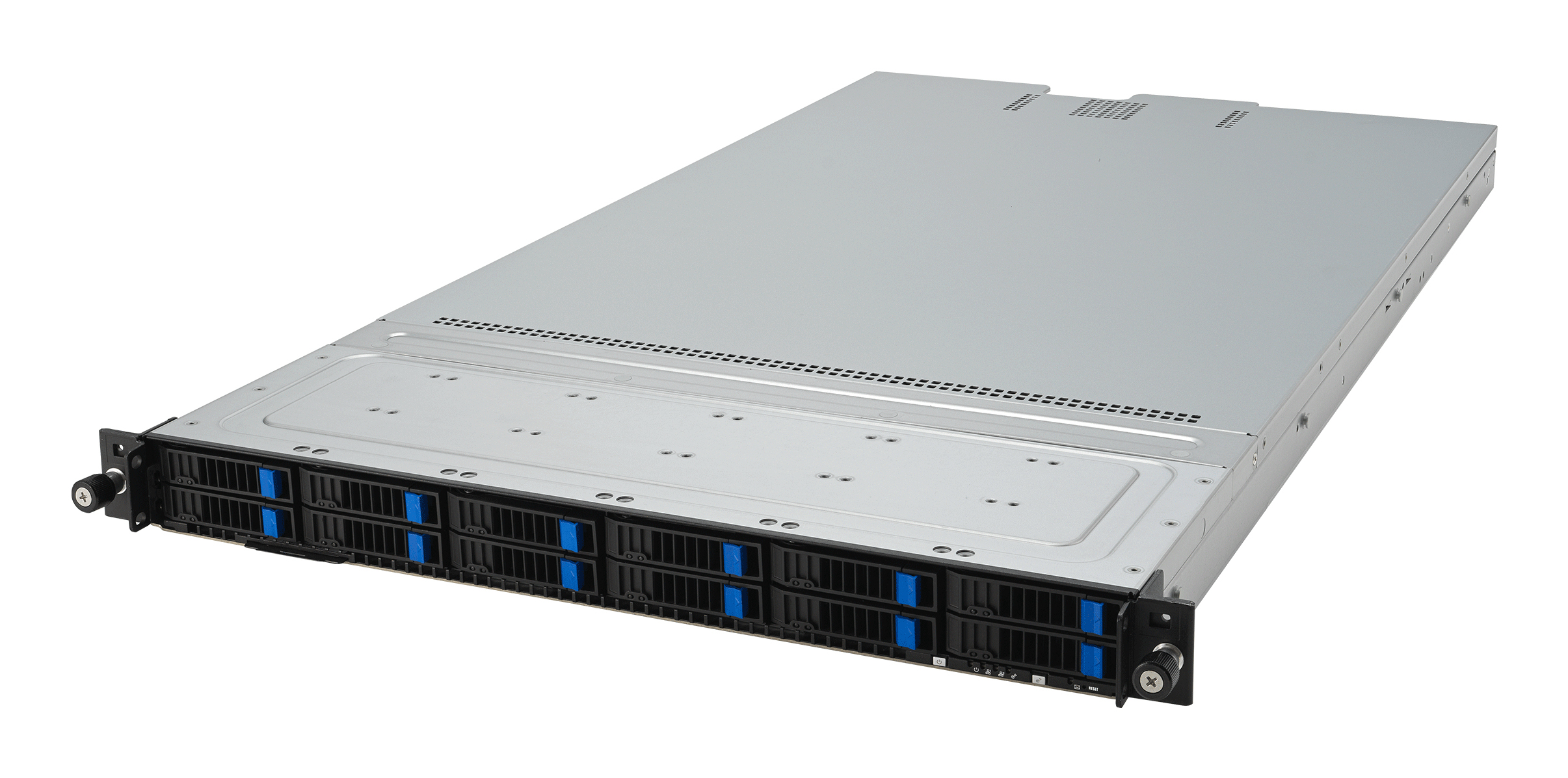

Barebone Server Asus Rack Server RS501A-E12-RS12U/1G/1.6kW/12NVMe/OCP/GPU 1U Singlel Sockel SP5 90SF03Y1-M000D0
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
ASUS RS501A-E12-RS12U, LGA 6096, AMD, DDR5-SDRAM, 3 TB, 6400,5600 MHz, M.2,2.5
Specifications
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Processor manufacturer | AMD |
| Number of processors supported | 1 |
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 12 |
| Storage drive sizes supported | M.2,2.5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| SSD form factor | M.2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PCI Express x8 (Gen 5.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
| On/off switch | Yes |
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| 80 PLUS certification | 80 PLUS Titanium |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 842.5 mm |
| Depth | 449 mm |
| Height | 43.9 mm |
| Weight | 14.2 kg |
| Package weight | 19.2 kg |
