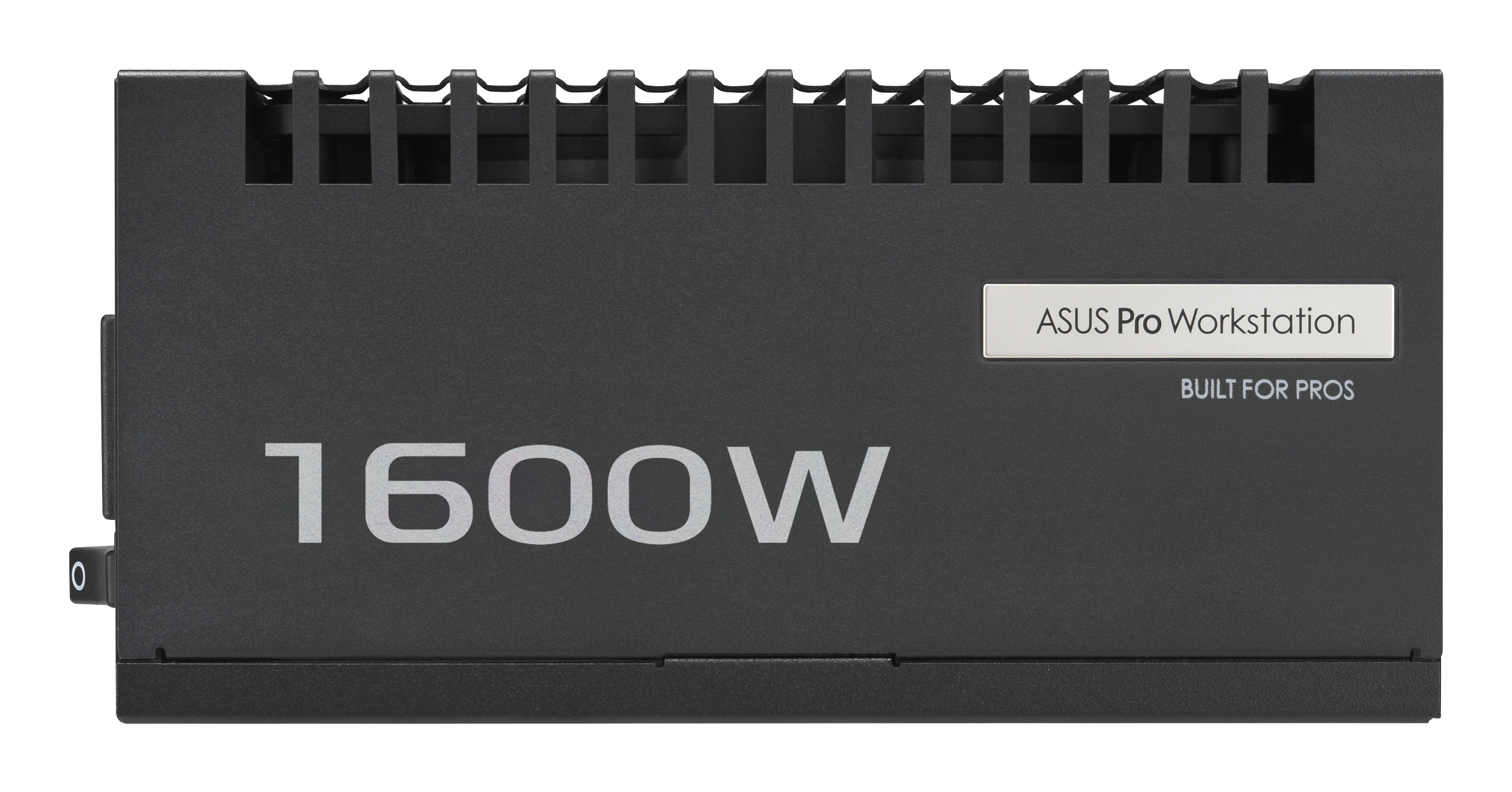

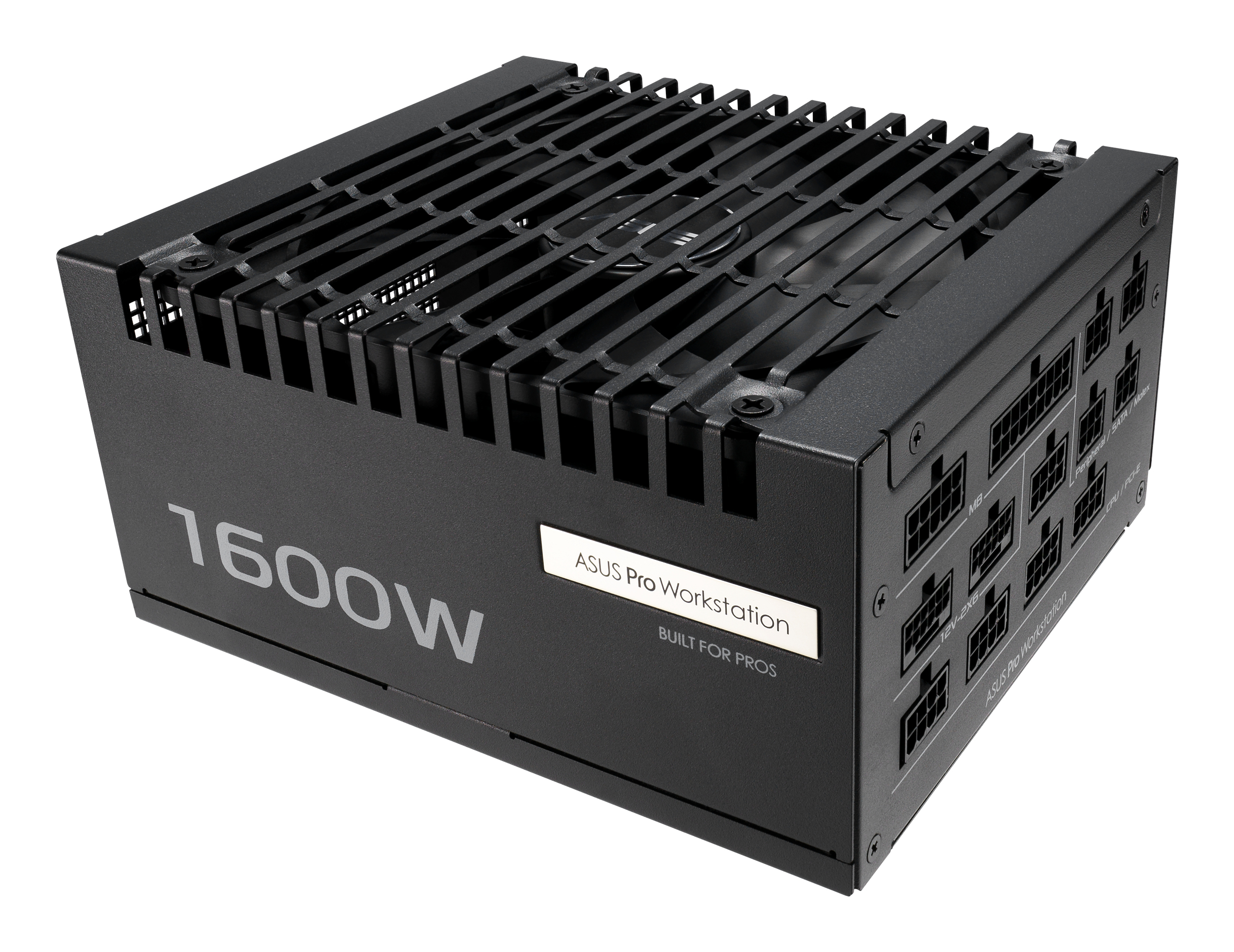

ASUS WS PSU ASUS-PRO-WS-1600P
ASUSTeK COMPUTER

ASUS WS PSU ASUS-PRO-WS-1600P

Item no. · EAN
Price at sign-in prices per your agreement
In stock Delivery 1–2 business days · order before 15:00
Sign in to buy

Description

ASUS Pro WS 1600W Platinum, 1600 W, 200 - 240 V, Active, 130 W, 1600 W, 130 W

Datasheet (PDF)

Specifications

Total power1600 W
AC input voltage200 - 240 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)1600 W
Combined power (+5V)130 W
Combined power (-12V)9.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)25 A
Max output current (+12V)133.3 A
Max output current (+5V)25 A
Max output current (-12V)0.8 A
Max output current (+5Vsb)3 A
Efficiency92%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector20+4 pin ATX
Motherboard power cable length61 cm
Number of SATA power connectors9
SATA power cable length120,400 mm
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length150,400 mm
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (16-pin)2
PCI Express power cable length75 cm
CPU power connector (4+4 pin)Yes
CPU power cable length100 cm
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
Cabling typeFully-Modular
80 PLUS certification80 PLUS Platinum
PurposePC
Power supply unit (PSU) form factorATX
ATX version3.1
Bearing technologyBall bearing
Product colourBlack
Cooling typeActive
IlluminationNo
On/off switchYes
Compliance certificatesRoHS
Width150 mm
Depth175 mm
Height86 mm
Weight2 kg
Package width346 mm
Package depth208 mm
Package height144 mm
Package weight4.4 kg
Package typeBox
Warranty period10 year(s)
