Startseite · Sonstiges · ASUS Z13PE-D16/ASMB11 E-ATX 2x LGA 4677 DDR5 2x10G
ASUS

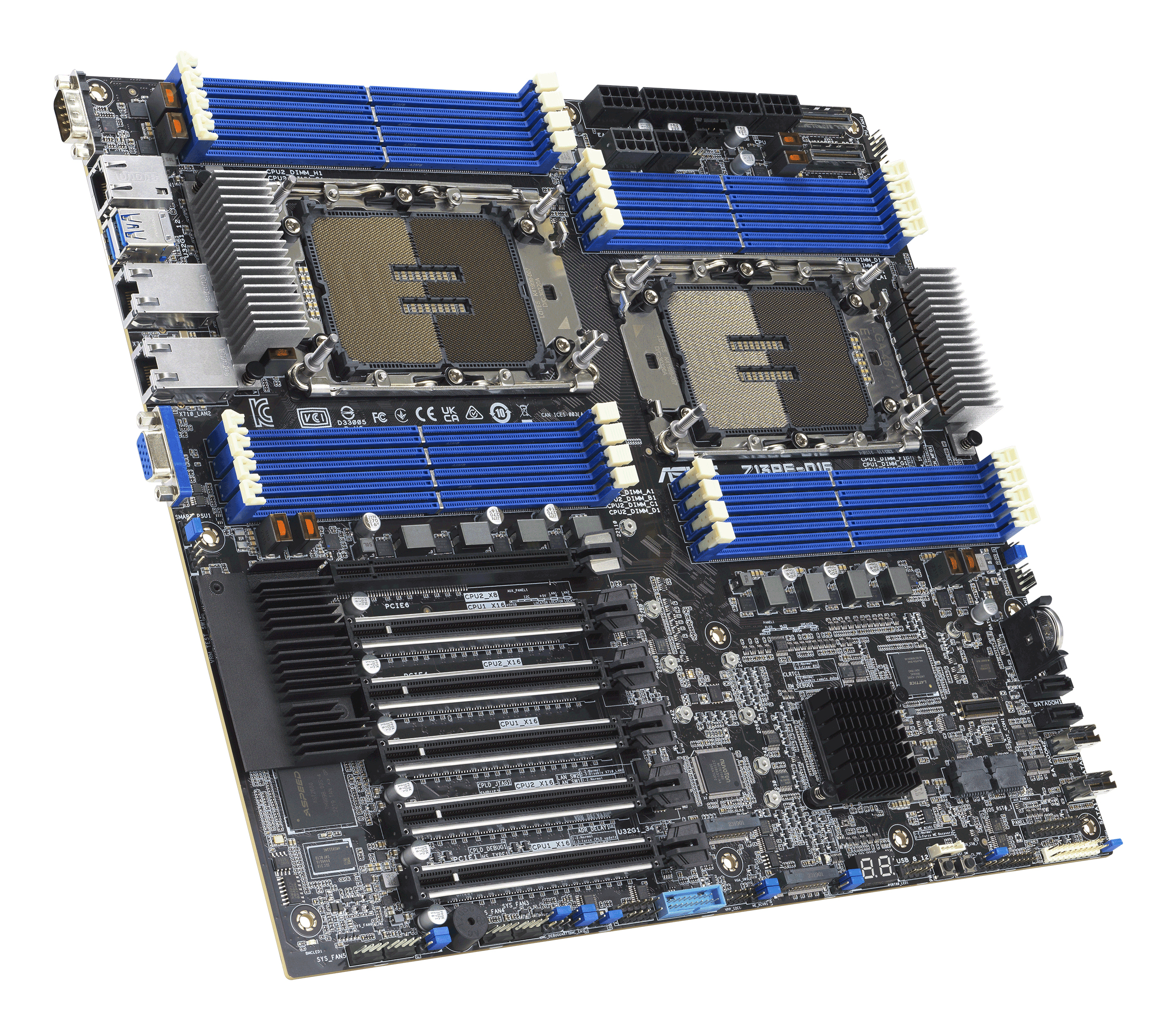

ASUS Z13PE-D16/ASMB11 E-ATX 2x LGA 4677 DDR5 2x10G
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
ASUS Z13PE-D16/ASMB11, Intel, LGA 4677 (Socket E), Intel® Xeon®, DDR5-SDRAM, 2 TB, DIMM
Spezifikationen
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 4800,5600 MHz |
| Maximum internal memory | 2 TB |
| Supported memory module capacities | 16GB, 32GB, 64GB, 128GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 10 |
| Number of storage drives supported | 12 |
| RAID support | Yes |
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

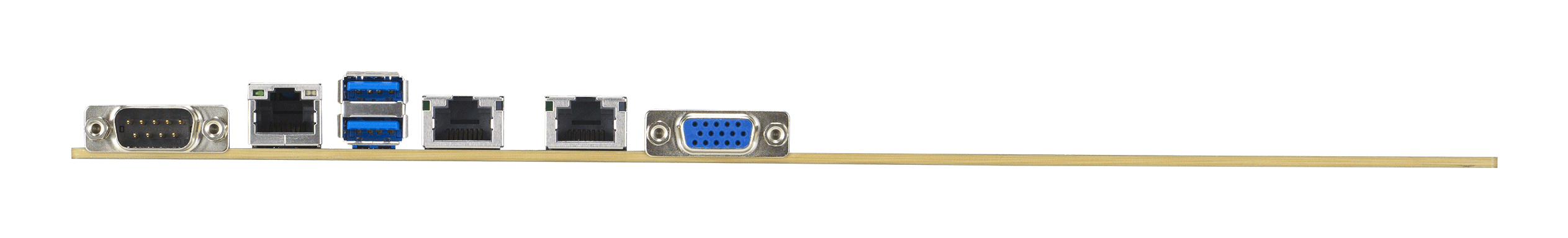

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Motherboard chipset | Intel C741 |
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Package weight | 2.75 kg |
| Width | 304.8 mm |
| Depth | 330.2 mm |
| Weight | 1.75 kg |
