Startseite · Zubehör · ASUS ROG -THOR-1600T3-GAMING-EVO enhed til strømforsyning 1600 W 20+4 pin ATX ATX Grå
ASUSTeK COMPUTER

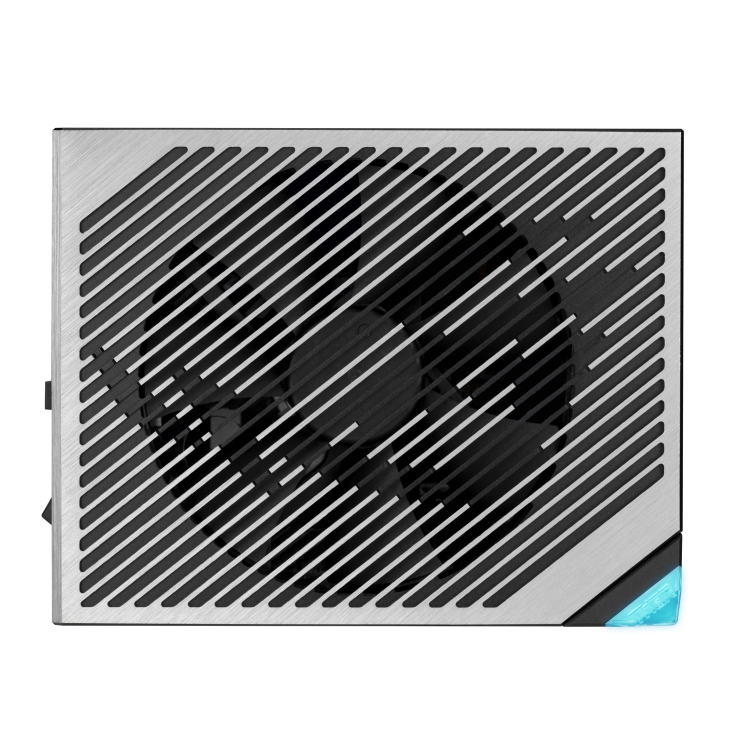

ASUS ROG -THOR-1600T3-GAMING-EVO enhed til strømforsyning 1600 W 20+4 pin ATX ATX Grå
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
ASUS ROG -THOR-1600T3-GAMING-EVO, 1600 W, 100 - 240 V, Active, 125 W, 1600 W, 125 W
Spezifikationen
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 9 |
| Number of SATA power cables | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| Built-in display | Yes |
| Display type | OLED |
| On/off switch | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
| Package width | 397 mm |
| Package depth | 250 mm |
| Package height | 159 mm |
| Package weight | 5.91 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
