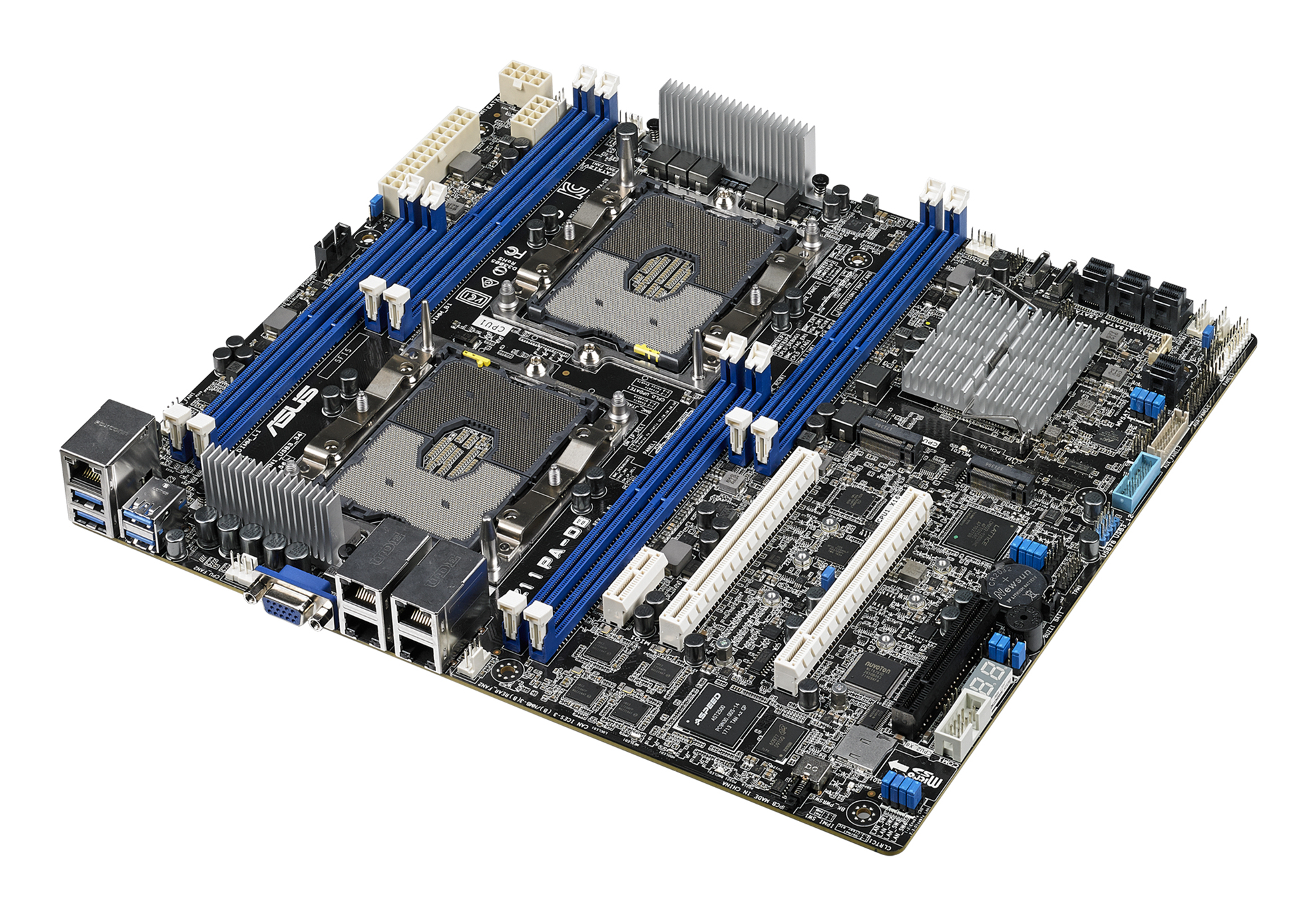

ASUS Z11PA-D8 SSI CEB P Intel C621
Réf. · EAN
Prix à la connexion
prix selon votre accord
En stock
Livraison 1–2 jours ouvrés · commande avant 15h00
Description
ASUS Z11PA-D8, Intel, LGA 3647 (Socket P), DDR4-SDRAM, 1 TB, 1.2 V, 2133,2400,2666 MHz
Spécifications
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 1 TB |
| Maximum RDIMM memory | 256 GB |
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 16 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
| Motherboard form factor | SSI CEB |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Harmonized System (HS) code | 84733020 |
| Package weight | 2.32 kg |
| Width | 305 mm |
| Depth | 267 mm |
| Supported LRDIMM module capacity | 32GB, 64GB |
| Maximum LRDIMM memory | 512 GB |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Weight | 1.24 kg |
| Number of DIMM slots | 8 |
| Number of processors supported | 2 |
