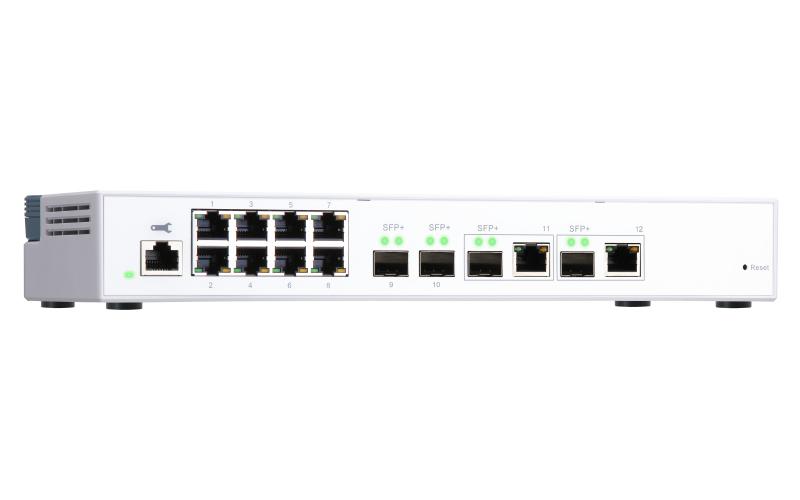

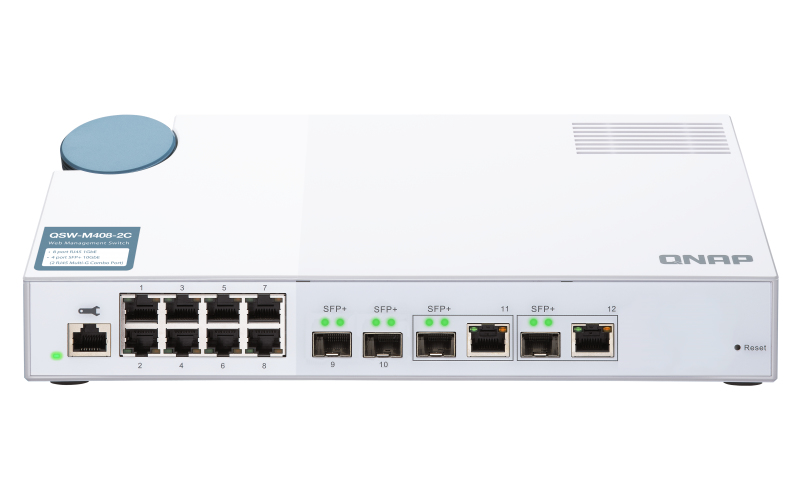

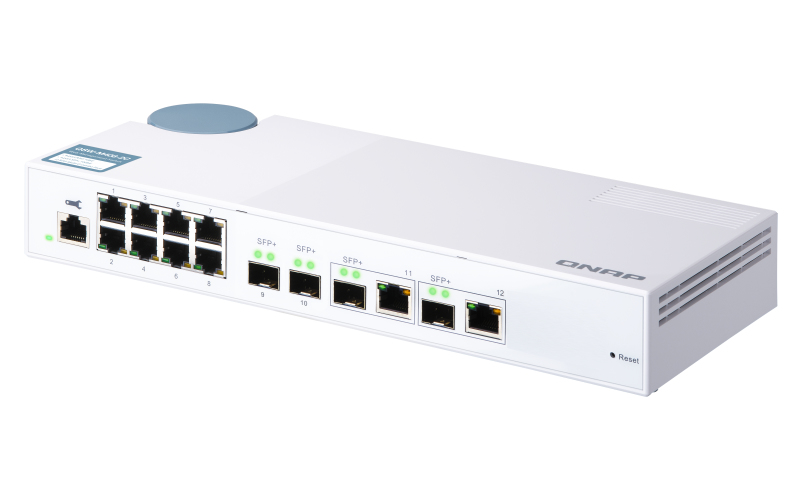

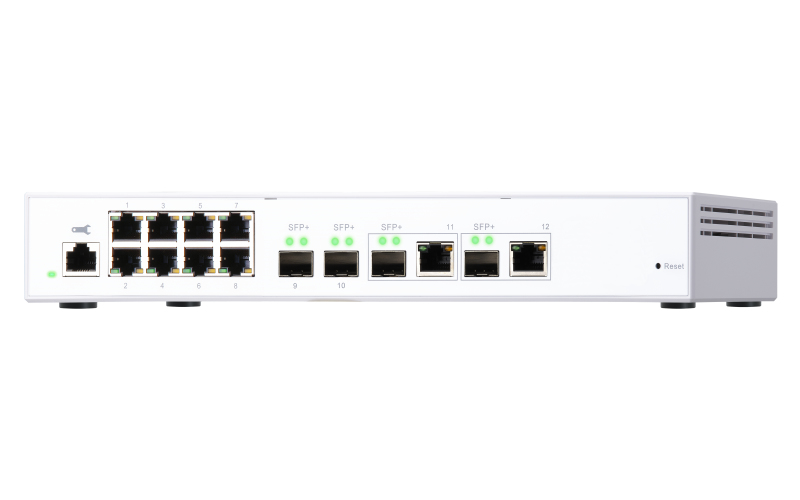

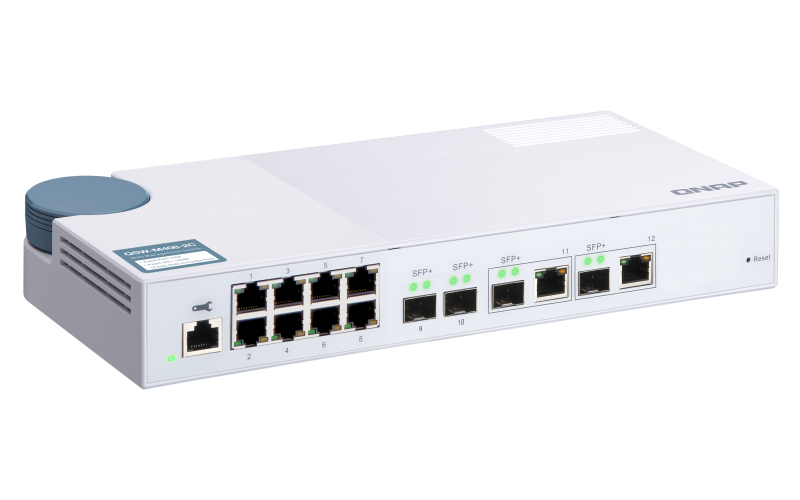

QNAP QSW-M408-2C 8 port 1Gbps 2 port 10G SFP+/ NBASE-T Combo 2 port 10G SFP+ Web Management Switch
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
QNAP QSW-M408-2C, Managed, L2, 10G Ethernet (100/1000/10000), Full duplex
Specifikationer
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Full duplex | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN |
| Switching capacity | 96 Gbit/s |
| Throughput | 48 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans | 1 fan(s) |
| Electromagnetic compatibility | CLASS A |
| Noise level | 21 dB |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 22.04 W |
| Power over Ethernet (PoE) | No |
| Warranty period | 2 year(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 290 mm |
| Depth | 127 mm |
| Height | 42.5 mm |
| Weight | 1.15 kg |
| Cables included | AC |
| Quick start guide | Yes |
| Package type | Box |
| Package width | 315 mm |
| Package depth | 219 mm |
| Package height | 60 mm |
| Package weight | 1.19 kg |
| Certification | CE, FCC, VCCI, BSMI, CCC |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
