ZyXEL Communications

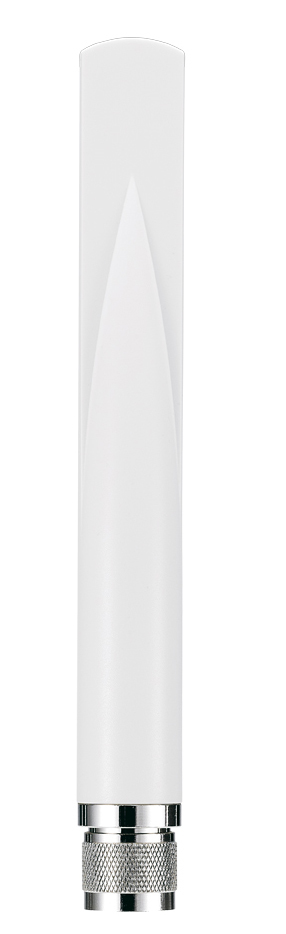

Zyxel ANT2105 Dual-Band 5dBi Omni Outdoor N-Male
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
Zyxel ANT2105-ZZ0201F, 7 dBi, 2.4/5 GHz, 4.5 dBi, 7 dBi, 50 Ω, 360°
Specifikationer
| Frequency band | 2.4/5 GHz |
| Antenna gain (2.4 GHz) | 4.5 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 30° |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 15° |
| Antenna gain level (max) | 7 dBi |
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Product colour | White |
| Purpose | Outdoor |
| Operating temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Height | 183 mm |
| Diameter | 2.2 cm |
| Weight | 70 g |
| Harmonized System (HS) code | 85177100 |
