Forside · Netværk · ZYXEL XGS2220-30 L3 Access Switch 24x1G RJ45 2x10mG RJ45 4x10G SFP+ Uplink incl. 1Year NebulaFlex Pro
ZyXEL Communications

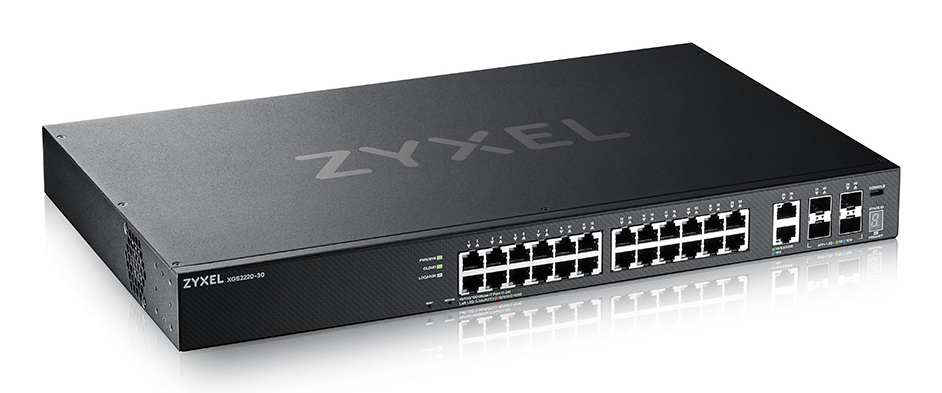

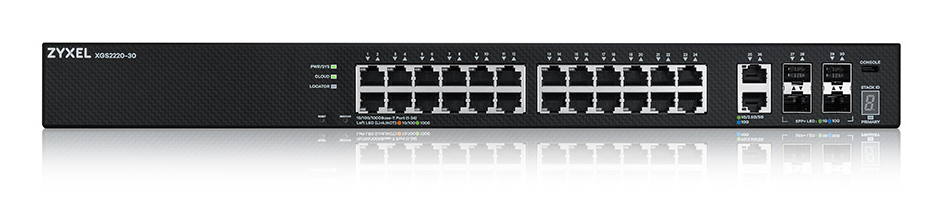

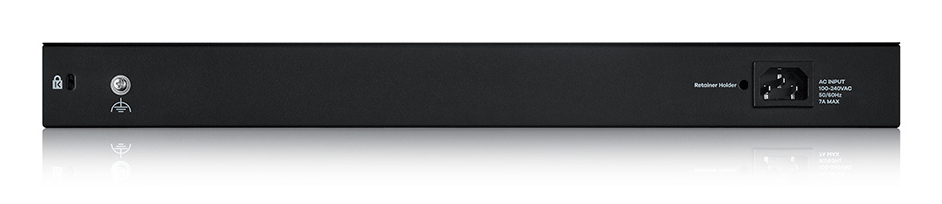

ZYXEL XGS2220-30 L3 Access Switch 24x1G RJ45 2x10mG RJ45 4x10G SFP+ Uplink incl. 1Year NebulaFlex Pro
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
Zyxel XGS2220-30, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting
Specifikationer
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 4 |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Routing entries | 64 |
| Switching capacity | 168 Gbit/s |
| Forwarding rate | 125 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP relay, DHCP server |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| BPDU filtering/protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 520.185 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 37.62 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 128.28 BTU/h |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.4 kg |
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Package weight | 4.73 kg |
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS |
