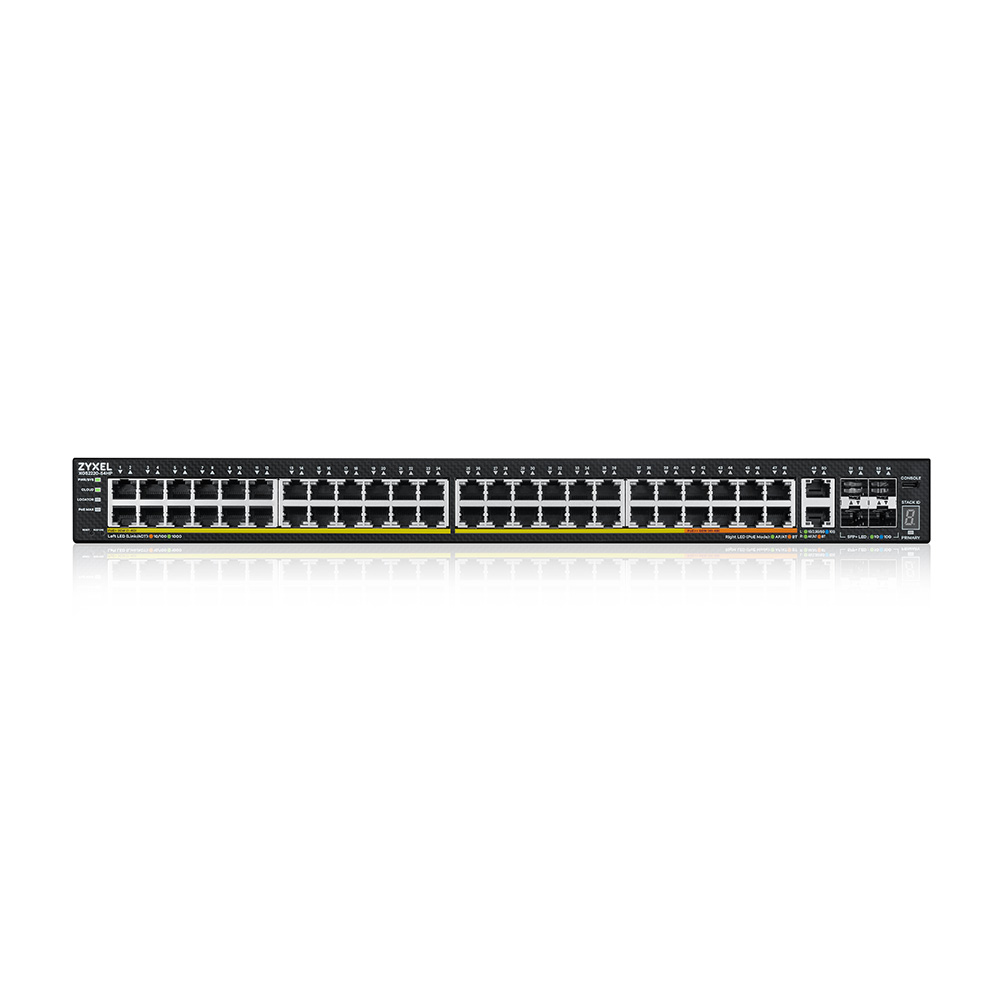

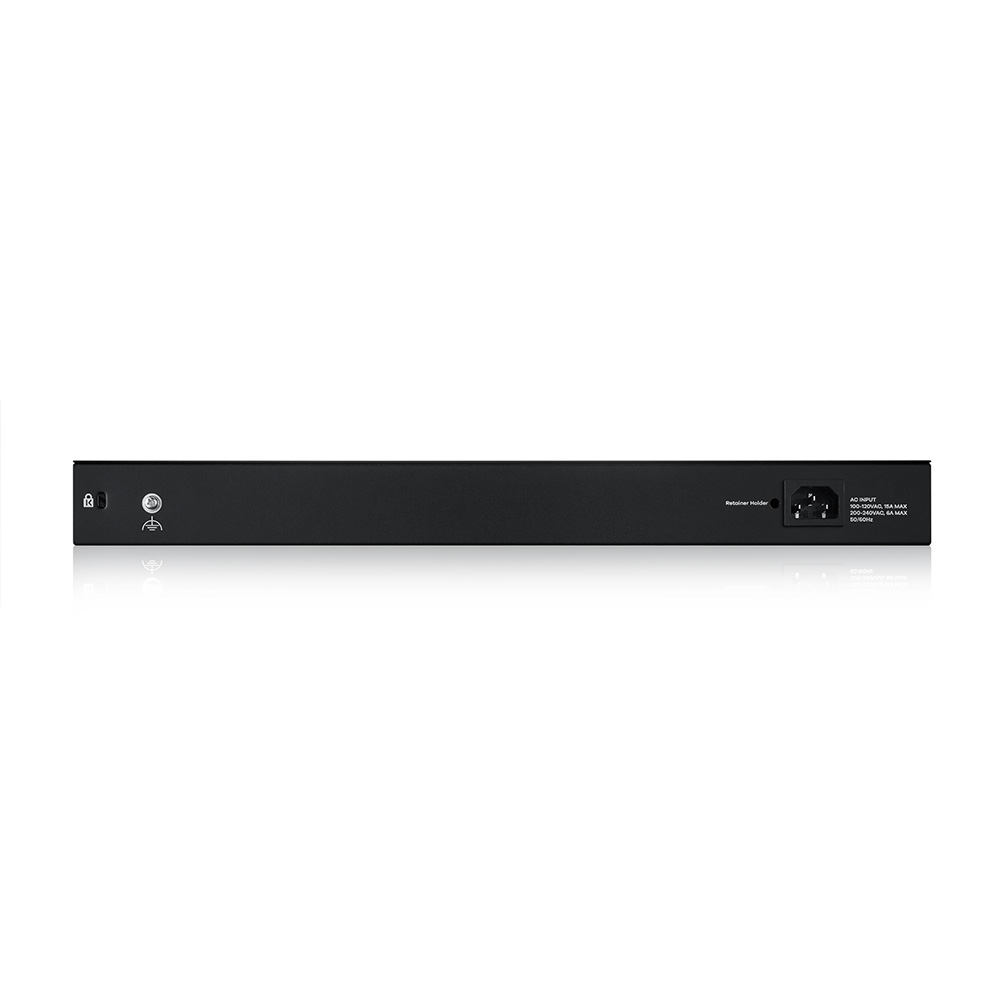

ZYXEL XGS2220-54HP L3 Access Switch 600W PoE 40xPoE+/10xPoE++ 48x1G RJ45 2x10mG RJ45 4x10G SFP+ Uplink incl. 1Year NebulaFlex Pro
Réf. · EAN
Prix à la connexion
prix selon votre accord
En stock
Livraison 1–2 jours ouvrés · commande avant 15h00
Description
Zyxel XGS2220-54HP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Spécifications
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 4 |
| Networking standards | IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x |
| 10G support | Yes |
| Routing entries | 64 |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 161 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP relay, DHCP server |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Rack mounting | Yes |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 214.388 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 754.11 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 50 |
| Total Power over Ethernet (PoE) budget | 600 W |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 2571.52 BTU/h |
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 5 kg |
