ZyXEL Communications

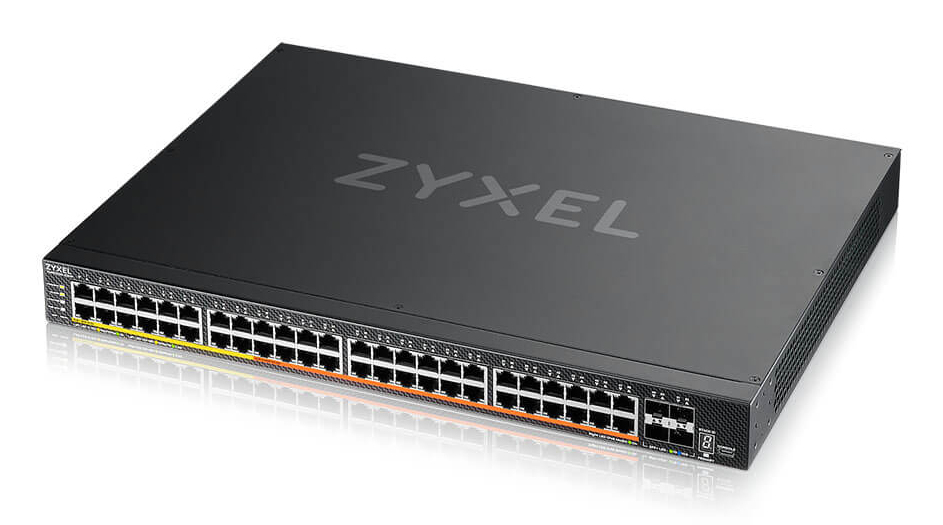

Zyxel XMG2230-52HP 52-Port Layer 3 Access Switch, PoE++
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
Zyxel XMG2230-52HP, Managed, L2/L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Routing entries | 64 |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Virtual LAN features | IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Switching capacity | 224 Gbit/s |
| Forwarding rate | 166.6 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Number of static routes | 4000 |
| Number of IP interfaces | 32 |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+ |
| Multicast support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Internal memory | 1000 MB |
| Flash memory | 64 MB |
| Noise level | 63.76 dB |
| Mean time between failures (MTBF) | 401112.3 h |
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 50 - 57 V |
| Power consumption (max) | 2525 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 2400 W |
| Operating temperature (T-T) | -20 - 50 °C |
