Home · Accessories · AORUS ELITE AE850PM PG5 ICE strømforsy
Gigabyte Technology

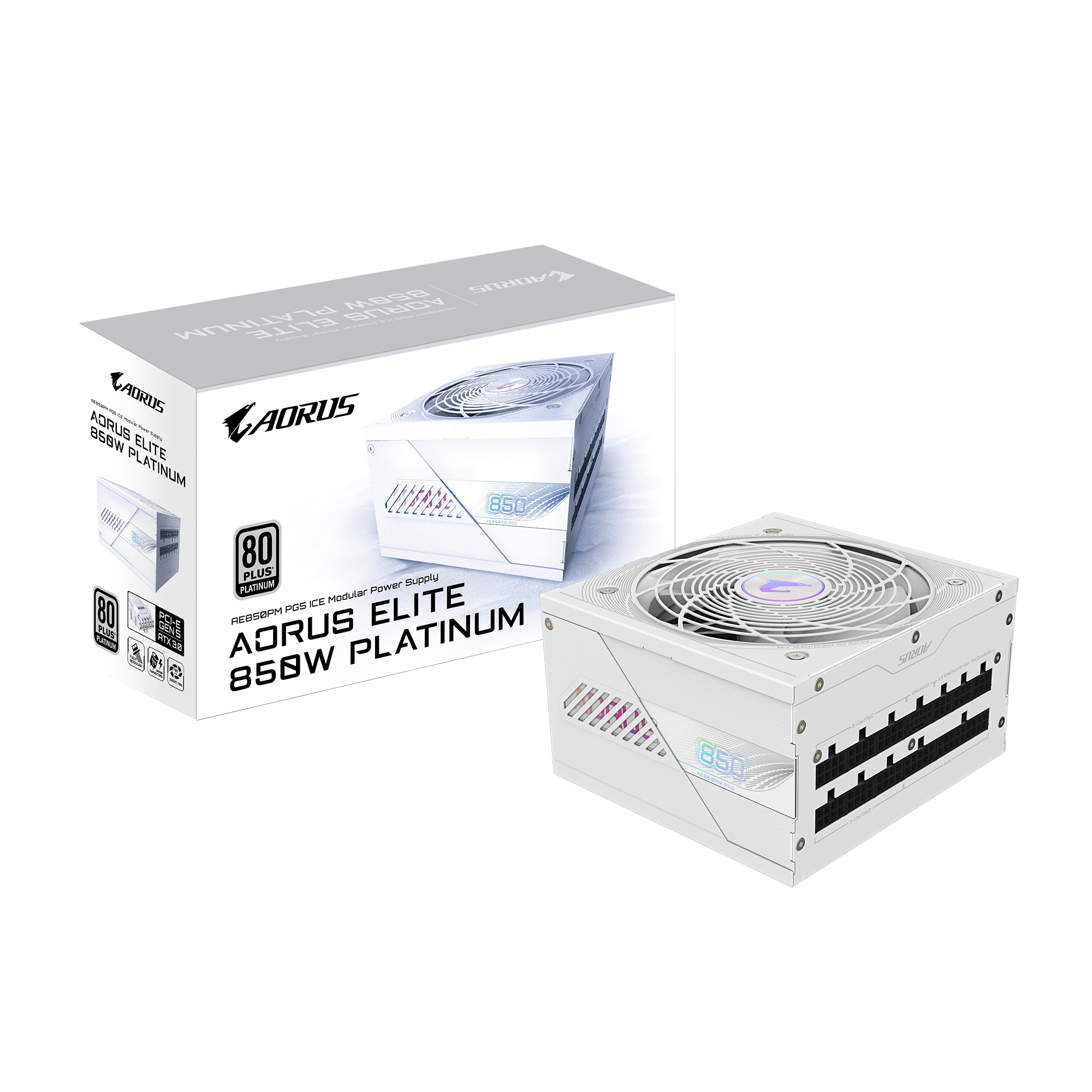

AORUS ELITE AE850PM PG5 ICE strømforsy
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
GIGABYTE AORUS ELITE P850W ICE Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 125 W
Specifications
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 2 |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.68 kg |
| Package width | 340 mm |
| Package depth | 206 mm |
| Package height | 120 mm |
| Package weight | 3.31 kg |
| Package type | Box |
| Warranty period | 10 year(s) |
