Startseite · Sonstiges · B550 AORUS ELITE AX
GIGABYTE

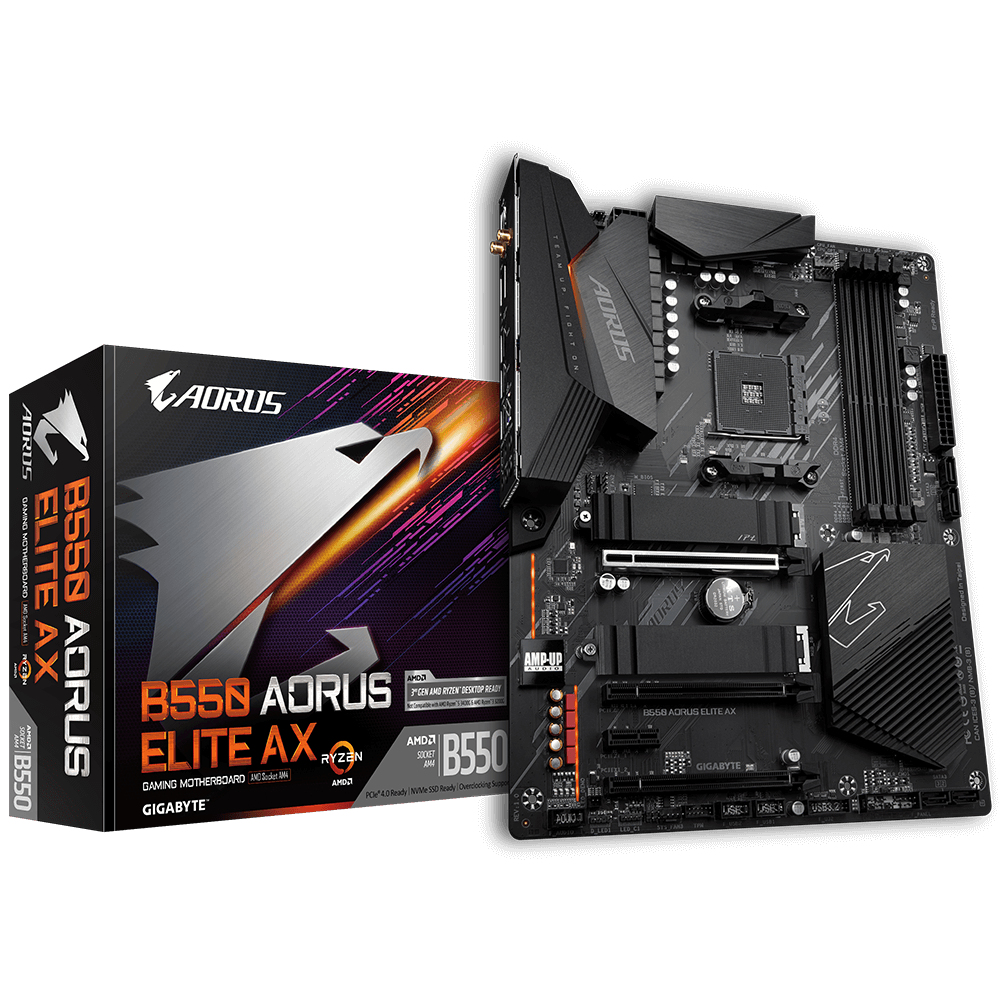

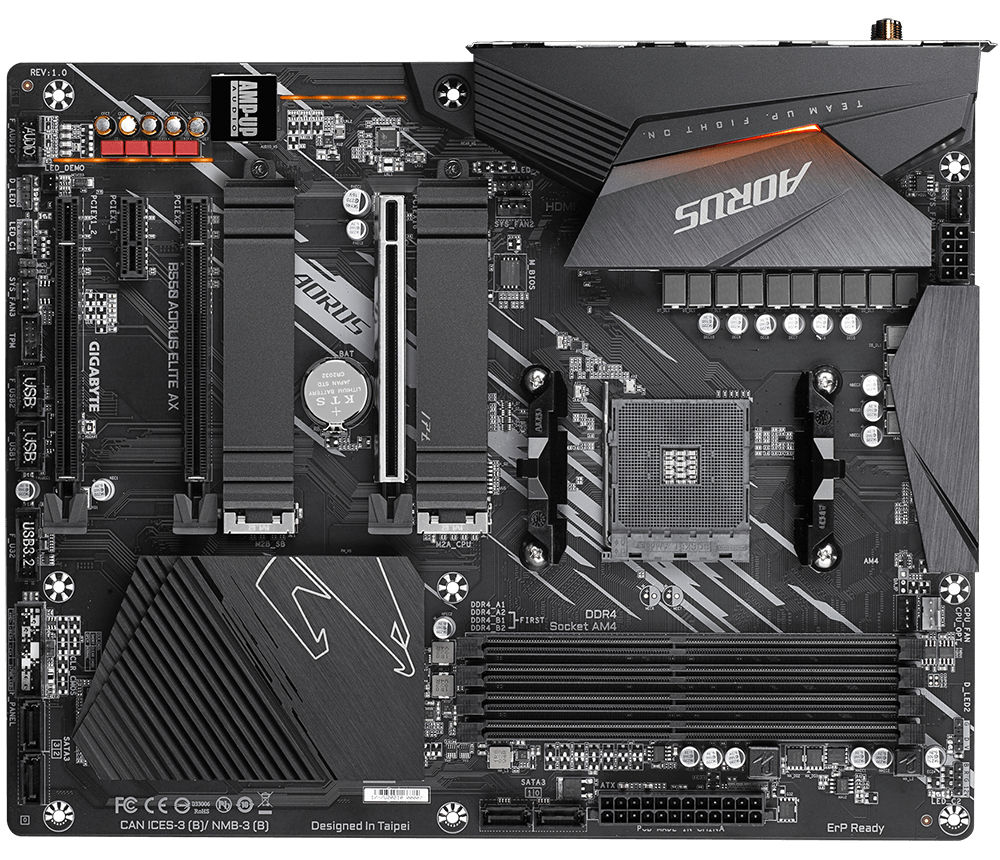

B550 AORUS ELITE AX
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
GIGABYTE B550 AORUS ELITE AX, AMD, Socket AM4, AMD Ryzen 3000 Series, DDR4-SDRAM, 128 GB, DIMM
Spezifikationen
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

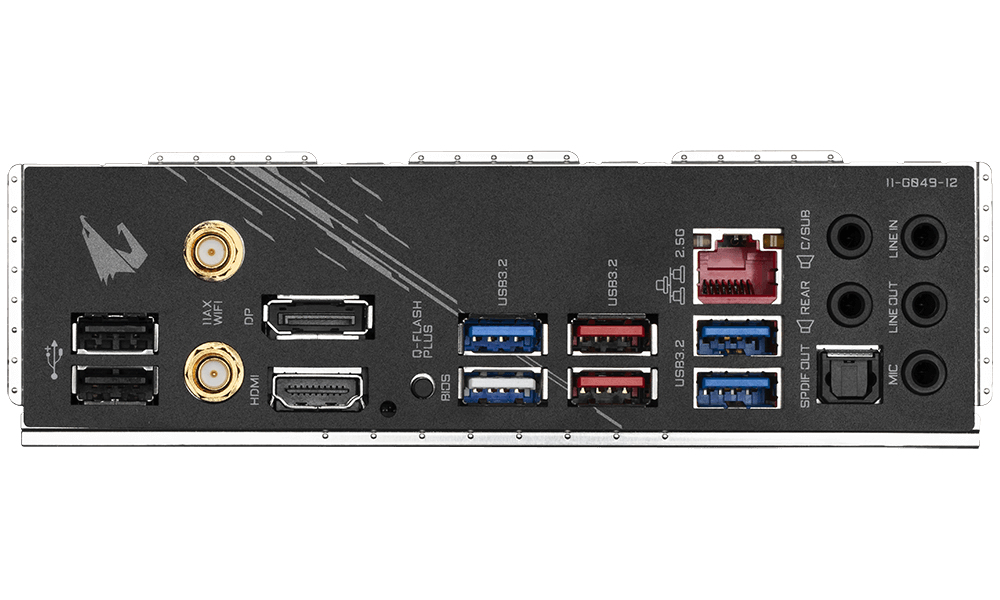

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Harmonized System (HS) code | 84733020 |
| Width | 305 mm |
| Depth | 244 mm |
