Gigabyte Technology

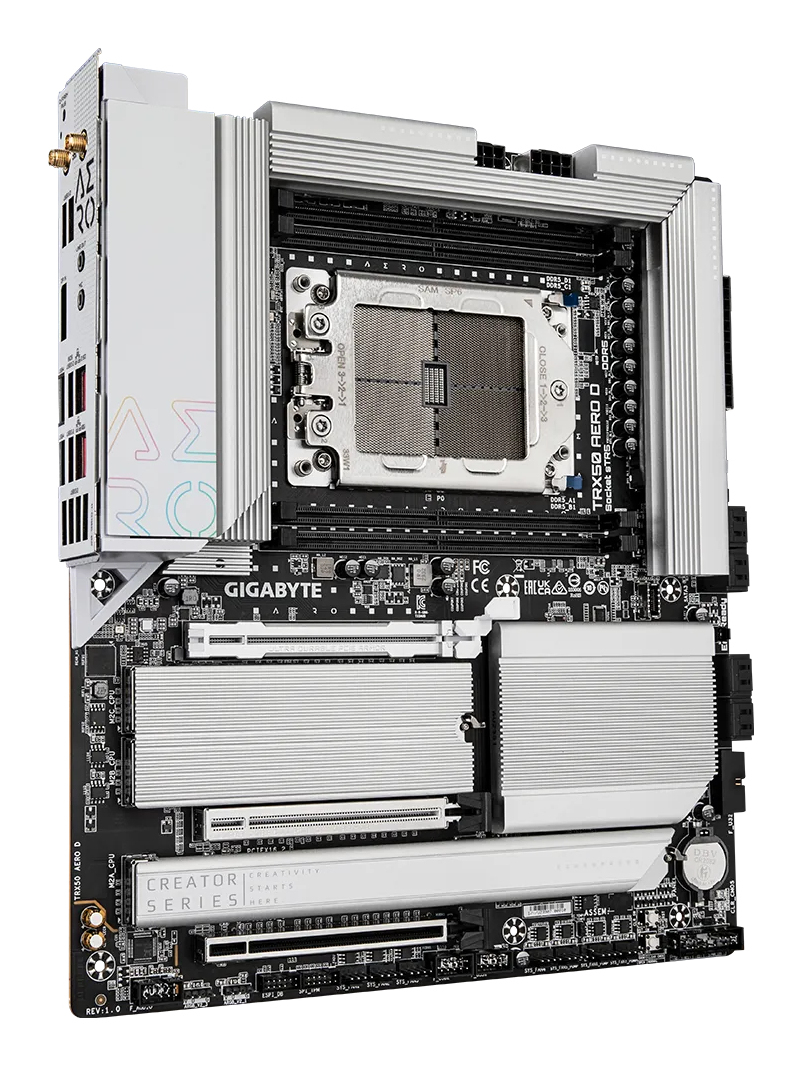

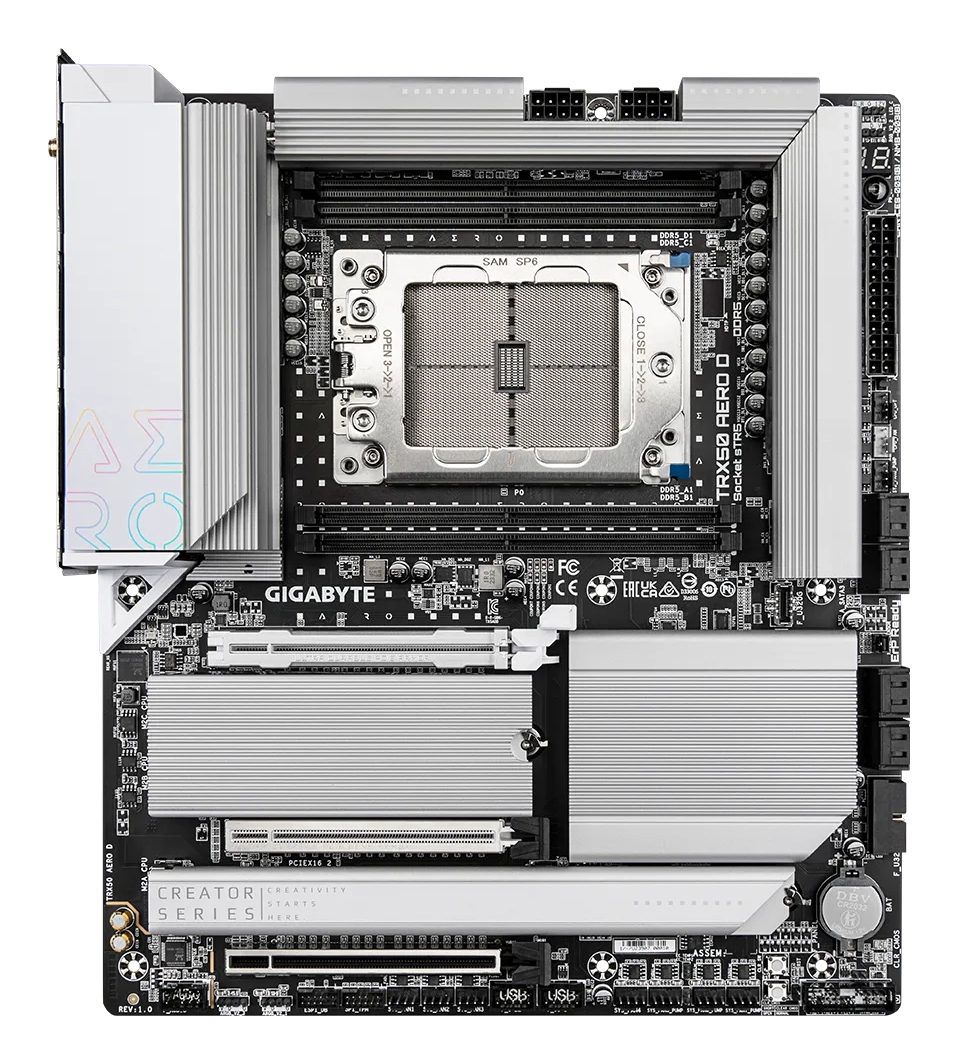

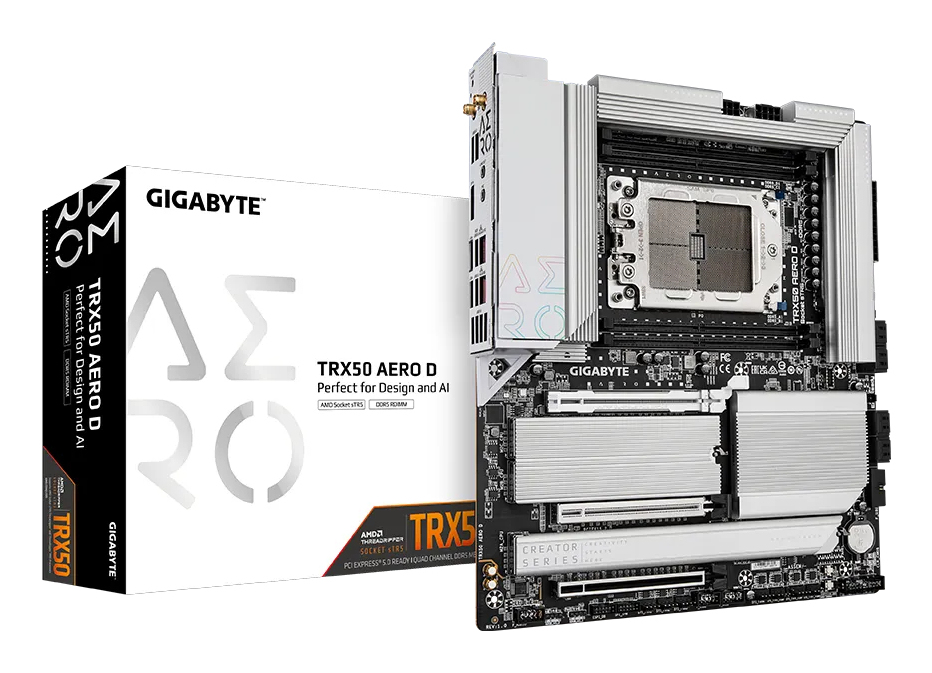

Gigabyte TRX50 AERO D Udvidet ATX Socket sTR5 Amd TRX50
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4, AMD, Socket sTR5, AMD Ryzen Threadripper 1000 Series, 1 TB, DDR5-SDRAM, 1 TB
Specifikationer
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Maximum number of SMP processors | 1 |
| Maximum internal memory supported by processor | 1 TB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
| Supported memory clock speed (max) | 7800 MHz |
| Maximum internal memory | 1 TB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 12 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 8 |
| Total number of SATA connectors | 8 |
| Audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 10 |
| EPS power connector (8-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Motherboard chipset | AMD TRX50 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 2.0 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 x64 |
| PCI Express x16 slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
