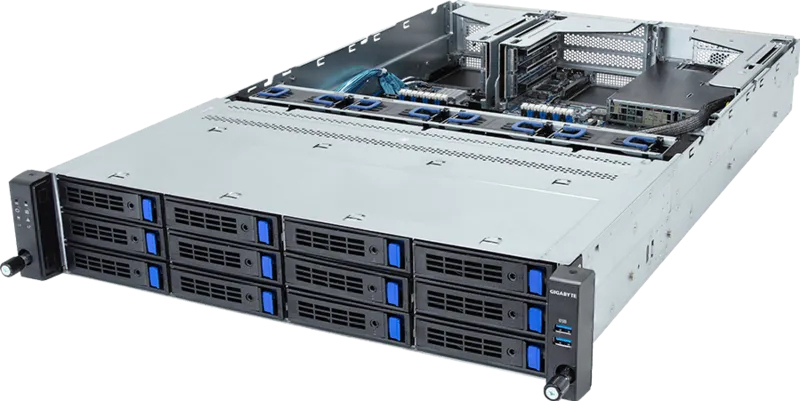

Server GigaByte R263-S30-AAH2 2U 5th/4th Intel 12x3.5"/2.5" 2x1300W
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
GIGABYTE R263-S30-AAH2, Intel C741, LGA 4677 (Socket E), Intel, Intel® Xeon®, Intel® Xeon®, GDDR5
Specifikationer
| Built-in processor | No |
| Motherboard chipset | Intel C741 |
| Processor socket | LGA 4677 (Socket E) |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
| Number of DIMM slots | 16 |
| Supported memory types | GDDR5 |
| Supported RDIMM clock speeds | 5600,4400 MHz |
| Memory channels | Octa-channel |
| Number of storage drives supported | 13 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 12 |
| Number of 3.5" bays | 12 |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 10 |
| On-board graphics card model | Aspeed AST2600 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I210-AT |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Number of M.2 (M) slots | 1 |
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| LED indicators | HDD, LAN, Power, System |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| Power supply | 1300 W |
| Number of main power supplies | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 8 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 438 mm |
| Depth | 710 mm |
| Height | 87.5 mm |
| Weight | 26 kg |
| Packaging content | 1 x R263-S30-AAH2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 3 x Carriers 1 x 2-Section Rail ki |
| Package width | 989 mm |
| Package depth | 594 mm |
| Package height | 279 mm |
| Package weight | 27.5 kg |
