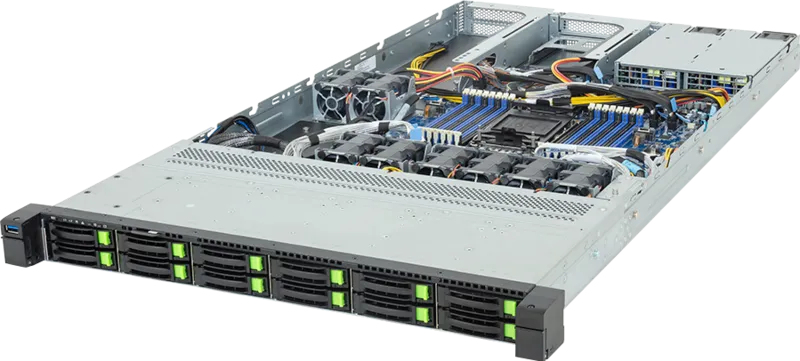

Barebone Server GigaByte R164-SG5-AAV1 Rack Server 1U Single Sockel LGA-4710
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
GIGABYTE R164-SG5-AAV1, LGA 4710, Intel® Xeon®, GDDR5, Octa-channel, 2.5", HDD & SSD
Specifikationer
| Built-in processor | No |
| Processor socket | LGA 4710 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Xeon® |
| Number of DIMM slots | 16 |
| Supported memory types | GDDR5 |
| Memory channels | Octa-channel |
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 12 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, PCI Express 4.0 |
| SSD form factor | M.2 |
| On-board graphics card model | Aspeed AST2600 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of M.2 (M) slots | 1 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, Status |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Heat sink included | Yes |
| Number of fans | 8 fan(s) |
| Fan diameter | 4 cm |
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 10 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Width | 438 mm |
| Depth | 815 mm |
| Height | 43.5 mm |
| Weight | 13.5 kg |
| Packaging content | 1 x R164-SG5-AAV1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (16-pin, 550mm) 2 x Carriers 1 x 2-Section Rail kit |
| Package width | 1038 mm |
| Package depth | 588 mm |
| Package height | 238 mm |
| Package weight | 15.7 kg |
