Gigabyte Technology

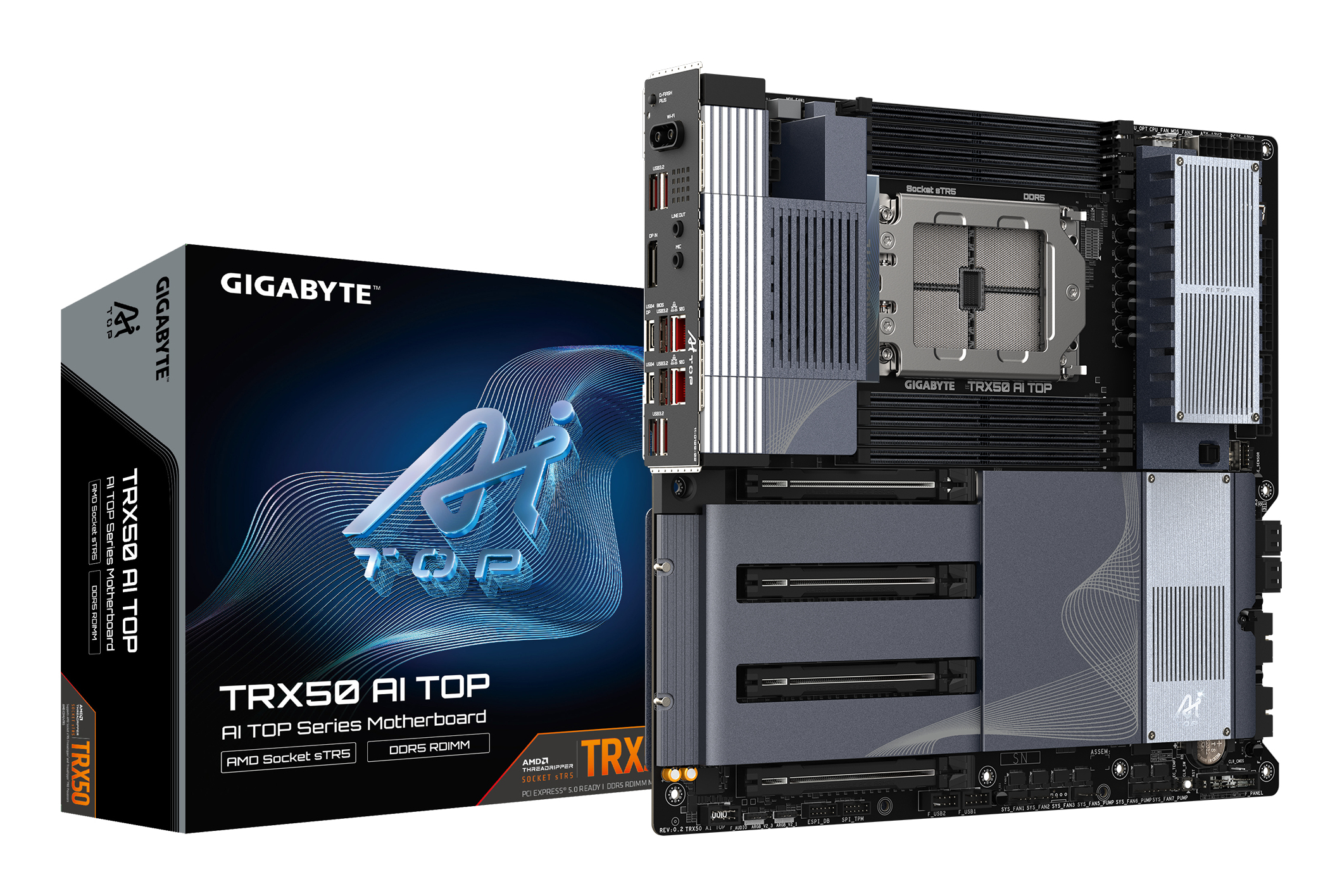

TRX50 AI TOP (sTR5) (D)
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

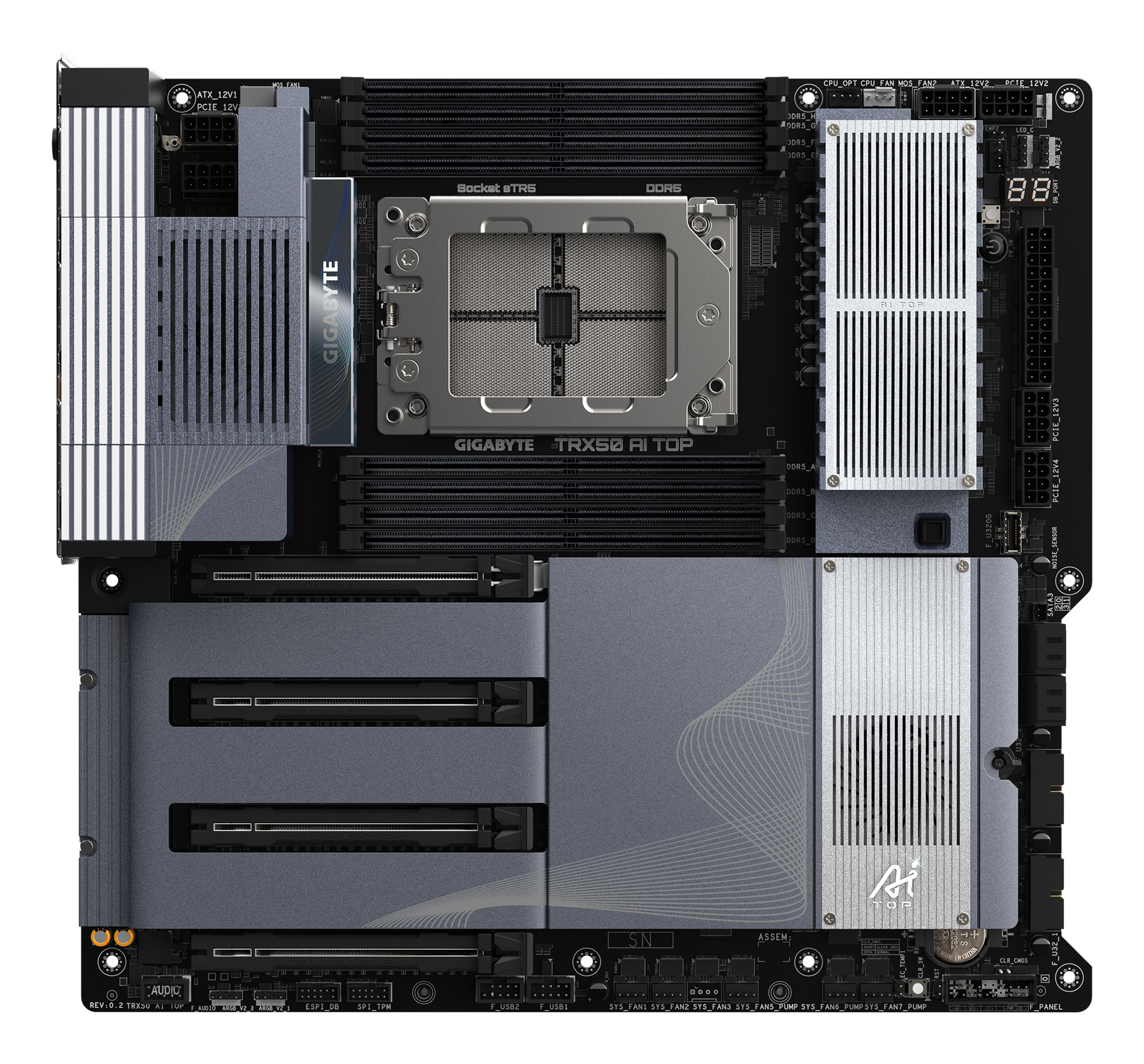

GIGABYTE TRX50 AI TOP-2B Motherboard - AMD Ryzen Threadripper PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 5200 MHz DDR5, 4xPCIe 5.0 M.2, Wi-Fi 7, 10 GbE LAN, USB 4, AMD, Socket sTR5, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series, Socket sTR5, DDR5-SDRAM, 2 TB
Specifikationer
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Supported processor sockets | Socket sTR5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speed (max) | 5200 MHz |
| Maximum internal memory | 2 TB |
| Unbuffered memory | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| HDCP | No |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of water pump connectors | 5 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Marvell AQtion AQC113C |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Motherboard chipset | AMD TRX50 |
| Audio chip | Realtek ALC897 / Realtek ALC4080 |
| Audio output channels | 2.0 channels |
| Product colour | Black |
