TP-LINK Technologies

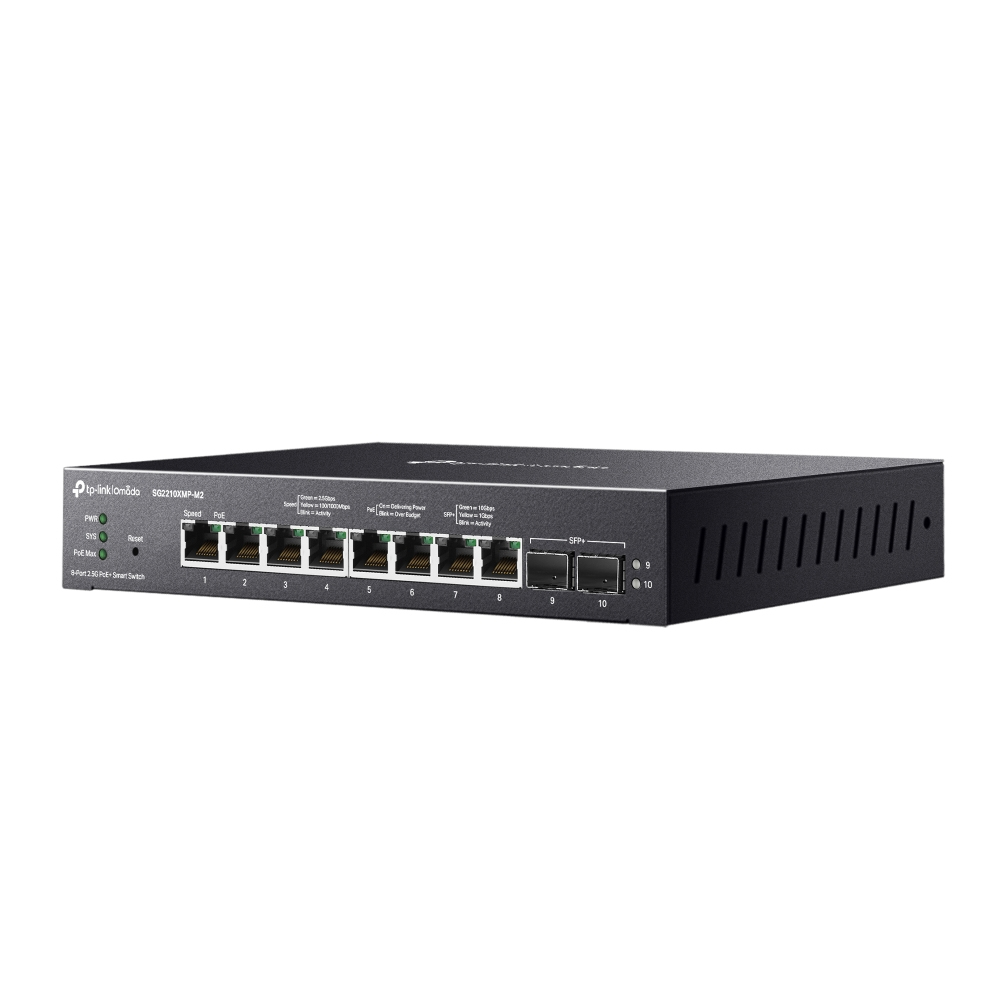

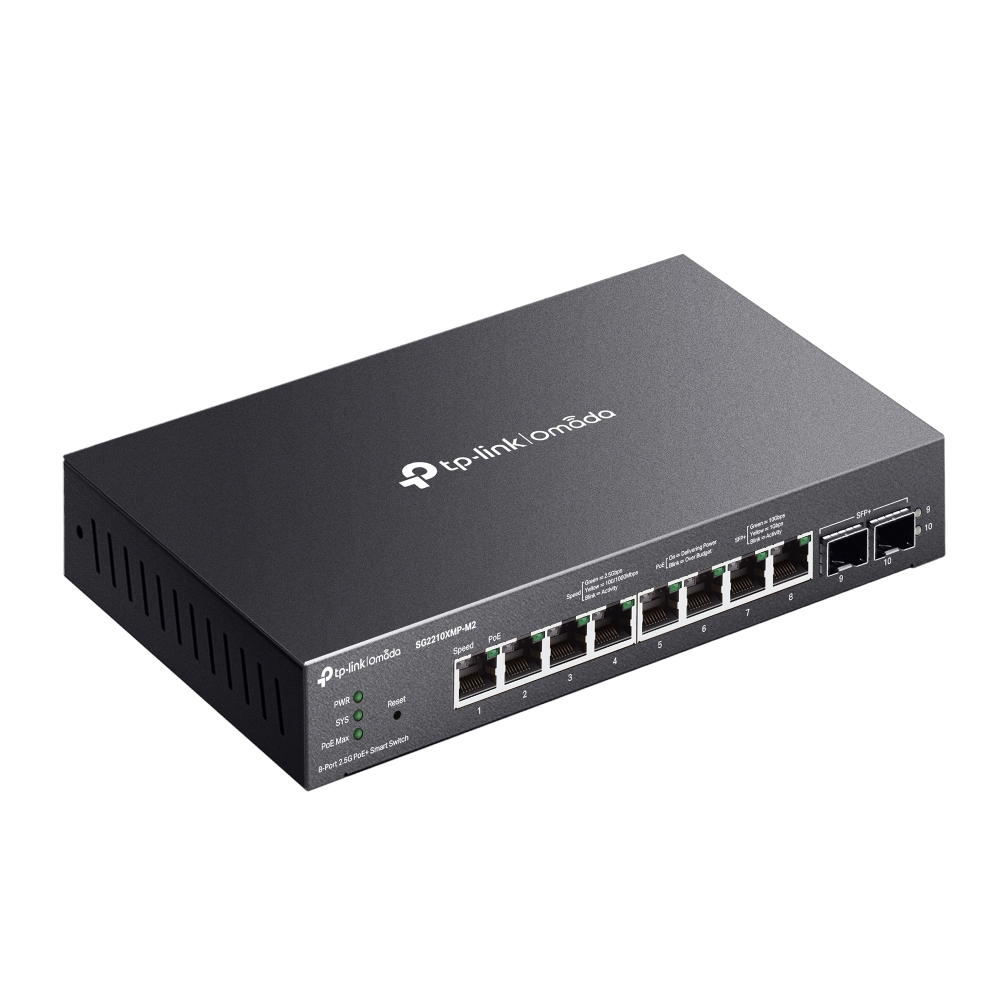

TP-Link SG2210XMP-M2 | Omada Smart Switch | 8x Port | 2.5Gbit/s | 160W PoE
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+, Managed, L2/L2+, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, Wall mountable
Specifikationer
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |

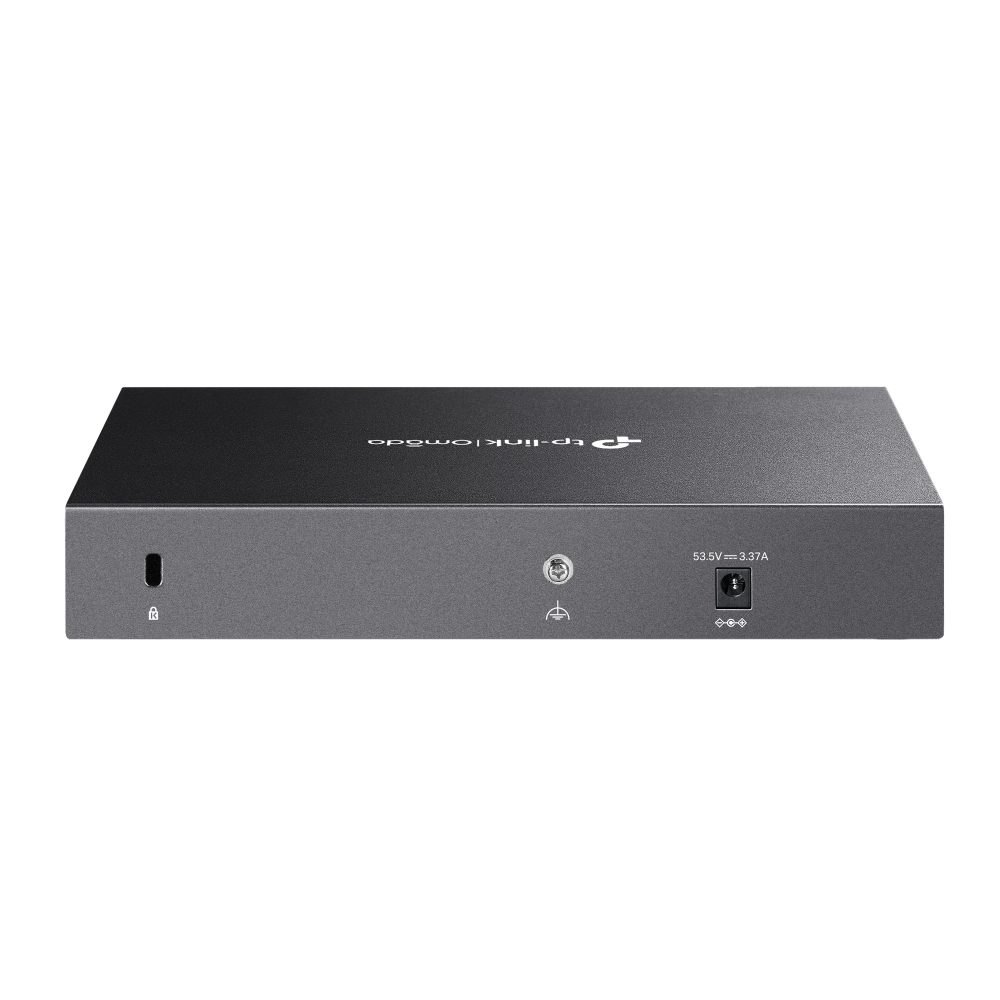

| Power connector | AC/DC |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 9 MB |
| DHCP features | DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Loop protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Multicast support | Yes |
| Rack mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |

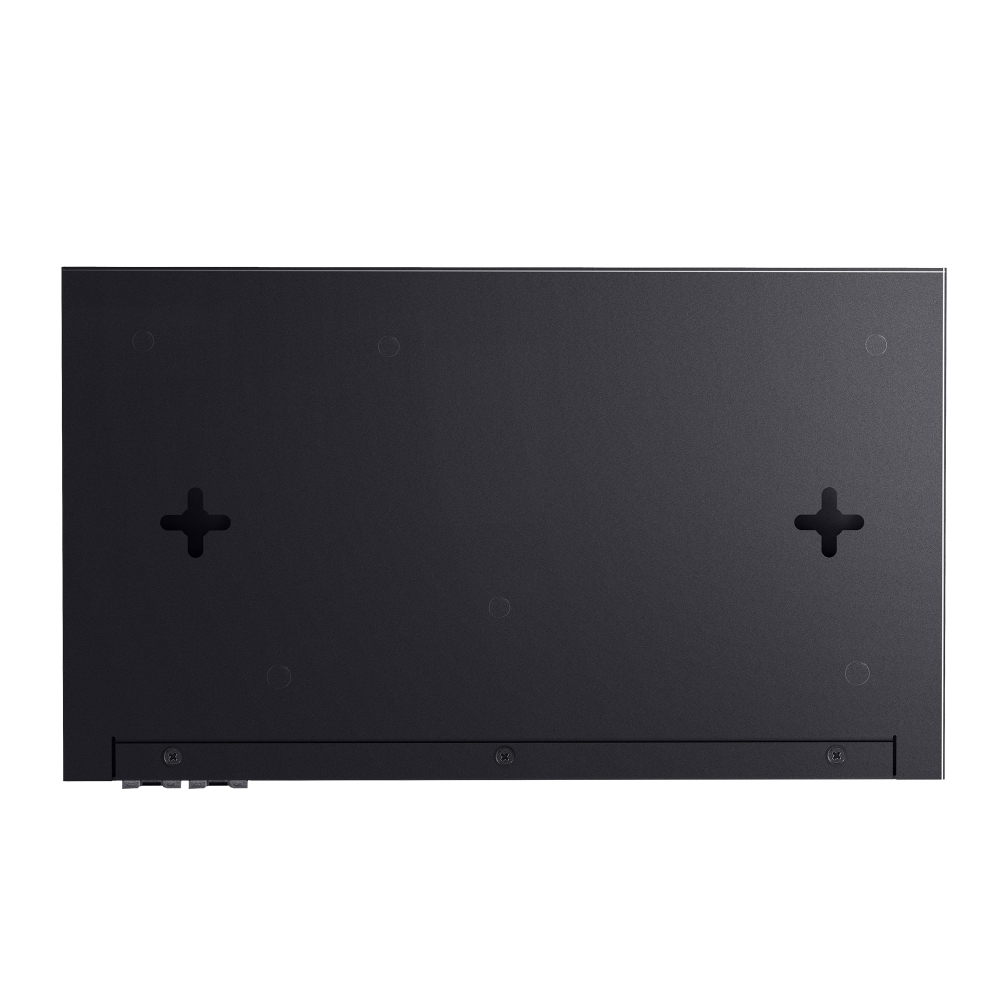

| Wall mountable | Yes |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 180.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 160 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 614.58 BTU/h |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
